Carrier GA5SAN53600W Air Conditioner, 3.0T 14.3Sr2 208/230 GA5SAN5

Product Description

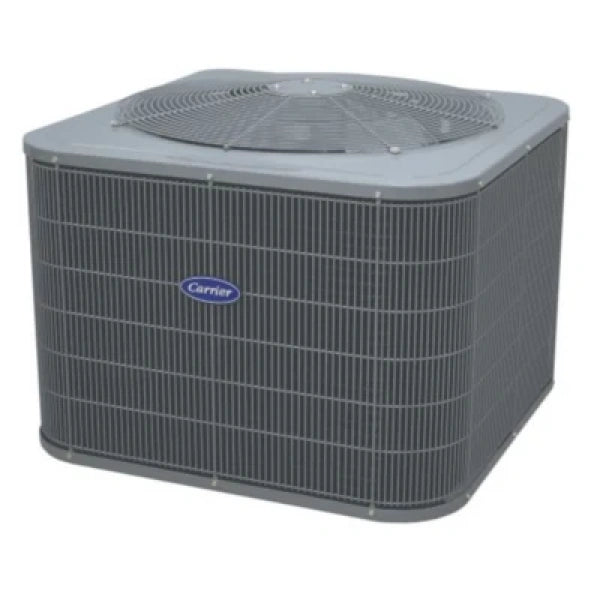

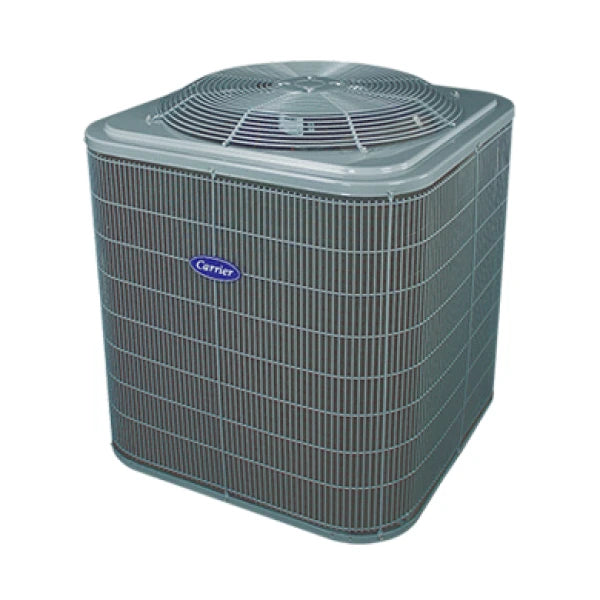

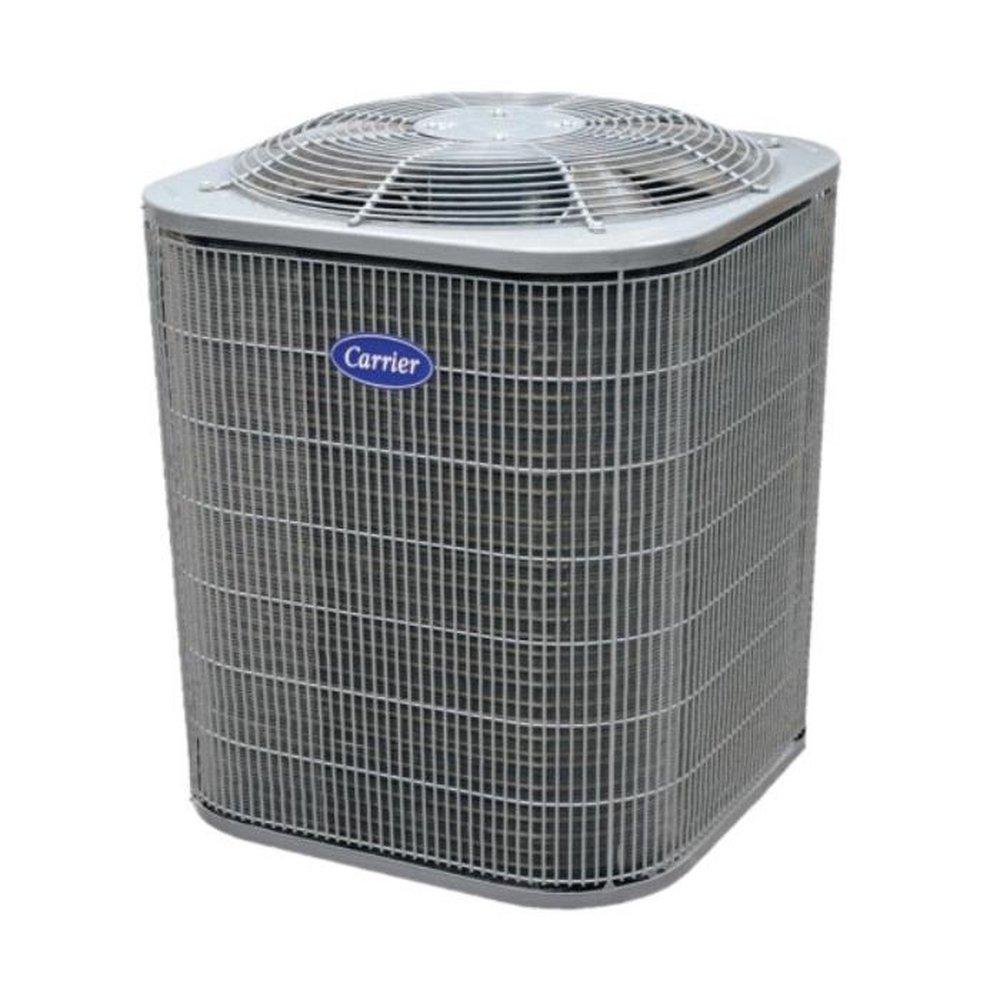

The CARRIER GA5SAN53600W is an air conditioner designed with non-ozone depleting, low global warming potential Puron Advance R-454B refrigerant. This single-stage air conditioner provides a collection of features. It supports programmable or standard thermostat controls and has a single-stage scroll compressor. Sound levels reach as low as 71 dBa.

• Up to 17.0 SEER2 / 14.5 EER2
• Indoor air quality accessories available
• Supports programmable or standard thermostat controls

Product Highlights

This air conditioner features a single-stage scroll compressor, internal pressure relief valve, and filter drier protection. It's AHRI Certified, Energy Star Rated, and cULus Listed.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: GA5SAN53600W
• Country of Origin: MEX

Technical Specifications

• MfgNum: GA5SAN53600W
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• ItemNum: GA5SAN53600W
• Vendor Name: Carrier
• Approvals: UL Listed
• Brand: Carrier®, Bryant®
• CFM: 3,830
• Compressor Type: Scroll
• Condenser Coil Fins per Inch (FPI): 20
• Condenser Fan Blade Diameter: 24
• Condenser Fan CFM: 3800
• Condenser Fan Discharge: Vertical
• Condenser Fan Motor Qty: 1
• Condenser Motor HP: 1/10
• Condenser Motor RPM: 825
• Condenser Motor Speeds: 1
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 36,000
• Cooling Rated Capacity (Btu/h): 36000
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• EER2: 11.7
• Energy Star Rated: YES
• Full Load Amps: 0.7
• Inverter: NO
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Locked Rotor Amps (LRA): 75
• Maximum Overcurrent Protection (MOCP): 30
• Maximum Piping Length: 250'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• OPT Code: 1PGA5SAN53600W
• Phase: Single
• Product Family: GA5SAN5
• Rated Load Amps (RLA): 13.5
• Refrigerant: R-454B
• SEER2: 14.3-16.5
• Sound Level (dBA): 70-72
• Stages Cooling: 1
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 7/8"
• Tier: Standard
• Tonnage: 3
• Voltage: 208-230 VAC
• A2L Compatible: Yes
• AMP: 1.4
• BTU: 36000
• BTU Cooling Rating: 36000 Btu/h
• Max CFM: 1350
• Max Fuse Size: 25
• Power Source: Electric
• RPM: 1100
• Refrigerant Control: TXV
• SEER2 Range: 14.3 - 15.1
• Sound Blanket: No
• UL Listed: Yes
• Compressor Stages: Single Stage
• Factory Std. Refrigerant Charge: 6.9
• Horsepower: 1/4 hp
• Liquid Line (OD): 3/8
• Suction Line (OD): 7/8
