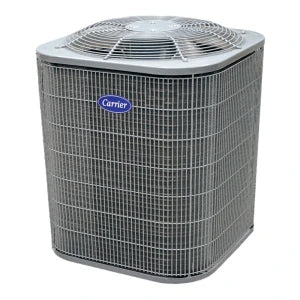

Carrier GA5SAN53000W Air Conditioner, 2.5T 14.3Sr2 208/230 GA5SAN5

Product Description

The CARRIER GA5SAN53000W is an air conditioner designed with non-ozone depleting, low global warming potential Puron Advance R-454B refrigerant. This single-stage air conditioner provides up to 17.0 SEER2 / 14.5 EER2. It features a single-stage scroll compressor and a durable sheet metal construction with a dense wire coil guard.

• Up to 17.0 SEER2 / 14.5 EER2
• Indoor air quality accessories available
• Supports programmable or standard thermostat controls

Product Highlights

This air conditioner is AHRI Certified, Energy Star Rated, and cULus Listed, ensuring quality and efficiency.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: GA5SAN53000W

Technical Specifications

• MfgNum: GA5SAN53000W
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• ItemNum: GA5SAN53000W
• A2L Compatible: Yes
• AMP: 0.6
• BTU: 30000
• BTU Cooling Rating: 30000 Btu/h
• CFM: 1125
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Energy Star Compliant: Yes
• Horsepower: 1/10 hp
• Liquid Line (OD): 3/8
• Max CFM: 1125
• Max Fuse Size: 25
• Phase: Single Phase
• Power Source: Electric
• RPM: 1100
• Refrigerant: R-454B
• Refrigerant Control: TXV
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• Sound Blanket: No
• Suction Line (OD): 3/4
• Tonnage: 2.5 Ton
• UL Listed: Yes
• Volts: 208/230V
