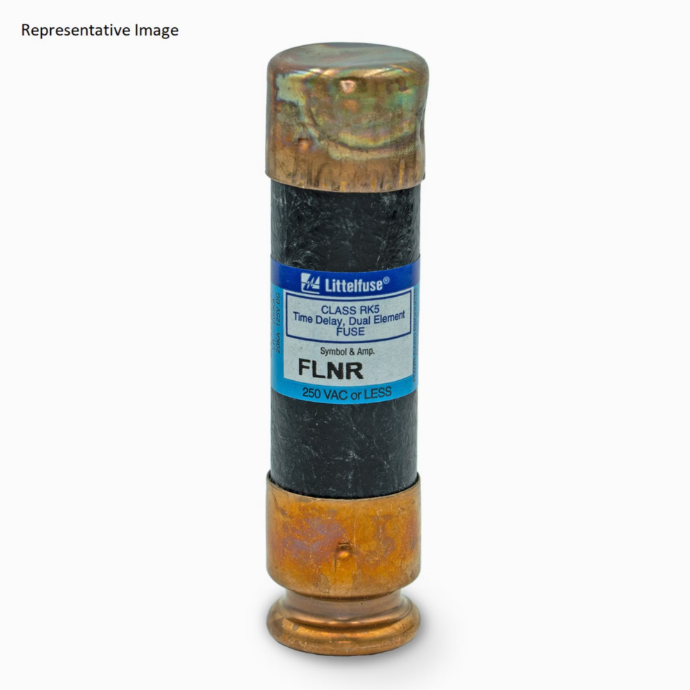

CARRIER FLNR035.T - 35A Time-Delay Fuse

Product Description

The CARRIER FLNR035.T is a Littelfuse Class RK5 time-delay fuse with a dual-element design. It operates at a voltage of 250 VAC and 15 VDC, supporting an amperage of thirty-five A. This fuse features current limiting and an interrupting rating of twenty KA. The design allows for clip mounting with cartridge terminals, making it efficient for use in HVAC disconnect switch applications.

• Time-delay function for specific applications
• Meets CSA and UL standards
• Designed for enhanced safety with current limiting capabilities

Product Highlights

The CARRIER FLNR035.T provides reliable protection in electrical systems, particularly suitable for HVAC setups.

Product Information

Standard Information

• Brand: Littelfuse
• Condition: New

Technical Specifications

• SKU: FLNR035.T
• Weight: 1.1 lbs
• Dimensions: 3 x 4 x 1.5 inches
• Voltage: 250 VAC / 15 VDC
• Amperage: 35 A
• Interrupting Rating: 20 KA
• Terminal Type: Cartridge
• Mounting: Clip
• Certification: CE, CSA, QPL, UL
• Application: HVAC Disconnect Switch
• Number in Pack: 1
