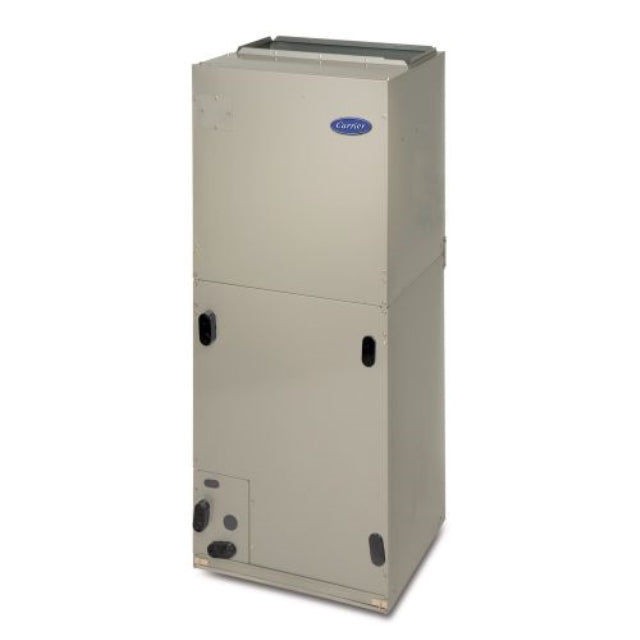

Carrier FJ5ANXC42L00 Fan Coil, 3.5T VS MP 21 inchesW Cab Sgl TXV Comfort FJ5

Product Description

The CARRIER FJ5ANXC42L00 is a Comfort FJ5 Variable Speed Fan Coil with Puron Advance. It features a multi 5-speed ECM blower motor and integrated motor controls with a 90-second TDR function. The unit includes large, grooved tube louvered fin coils and a Puron Advance refrigerant-specific thermostatic expansion valve. Designed for multipoise installation and manufactured housing applications.

• Multi 5-speed ECM blower motor
• Integrated motor controls, 90 second TDR function available
• Large, grooved tube louvered fin coils

Product Highlights

This fan coil is AHRI Certified and cULus Listed

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: FJ5ANXC42L00

Technical Specifications

• MfgNum: FJ5ANXC42L00
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Fan Coils
• ItemNum: FJ5ANXC42L00
• Vendor Name: Carrier
• Nominal Capacity: 3.5 ton
• Cooling Capacity: 42000 Btu/hr
• Flow Rate: 1225 cfm
• Refrigerant Type: R-454B
• Voltage Rating: 208/230 VAC
• Frequency Rating: 60 Hz
• Amperage Rating: 15 A
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Filter Size: 20 x 20 in
• Motor Type: ECM Blower
• Motor HP: 1/2 hp
• Material: Galvanized Steel
• Domestic/Import: Import
• Series: Comfort FJ5
• Number of Phases: 1 ph
• Brand: Carrier
• Configuration: 4-Way Multipoise
• Tonnage: 3.5
• Blower Motor HP: 0.5
• Blower Motor Speeds: 5 - Speed
• CFM Nominal: 1225
• Includes Filter Rack: True
• Indoor Coil Material: Aluminum
• Indoor Fan Motor FLA: 4.2
• Liquid Line Fitting: Sweat
• MCA: 5
• Metering Device: TXV
• Motor Phase: 1
• Suction Line Fitting: Sweat in
• Type: A-Coil
• UL Listed: False
• UL Recognized: False
• Voltage: 208/230-1
• Weight: 166 lb
• Line Voltage (60Hz): 240V
• Refrigerant: R454B
