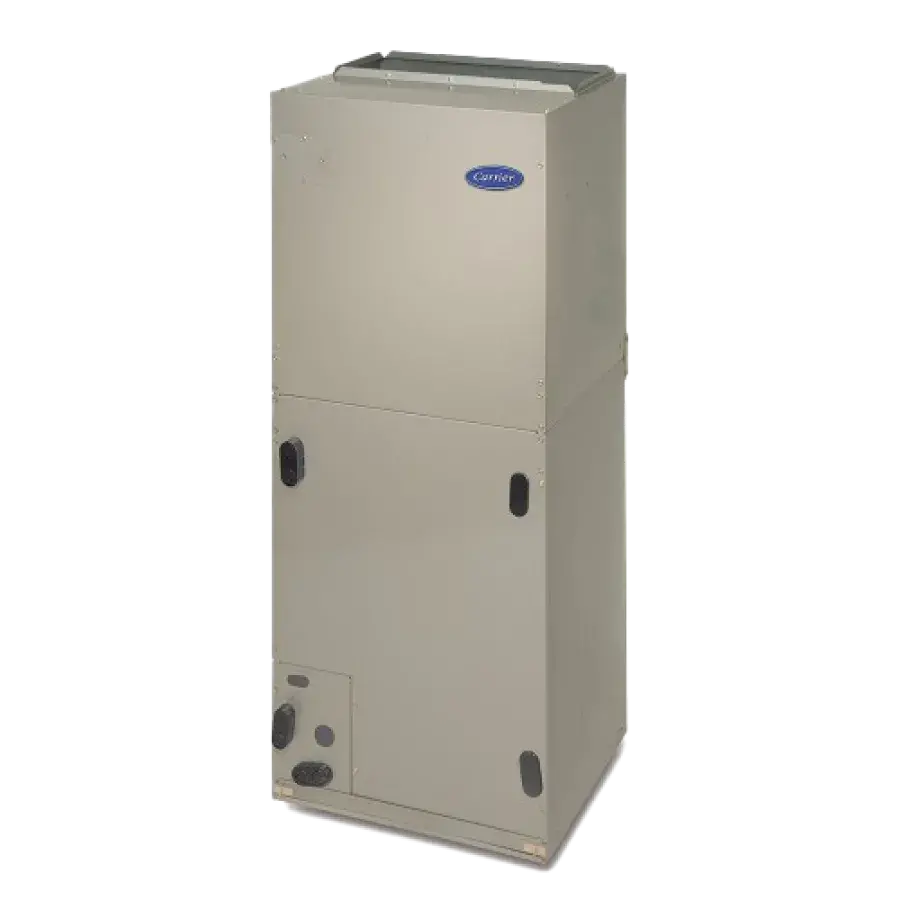

Carrier FJ5ANXA18L00 Fan Coil, 1.5T VS MP 14 inchesW Cab Sgl TXV Comfort FJ5

Product Description

The CARRIER FJ5ANXA18L00 is a Comfort™ Variable Speed Fan Coil with Puron Advance™. It features a multi 5-speed ECM blower motor and integrated motor controls with a 90-second TDR function. Designed with large, grooved tube louvered fin coils and a Puron Advance™ refrigerant-specific thermostatic expansion valve metering device. The unit is designed for vertical and horizontal applications.

• Multi 5-speed ECM blower motor
• Large, grooved tube louvered fin coils
• Factory-installed A2L (R-454B) refrigerant leak dissipation systems
• AHRI Certified

Product Highlights

This fan coil is designed for efficient and quiet operation, with a focus on improved IAQ and product life. It is suitable for both new installations and as a replacement for older units.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: FJ5ANXA18L00
• Country of Origin: USA

Technical Specifications

• MfgNum: FJ5ANXA18L00
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Fan Coils
• ItemNum: FJ5ANXA18L00
• Vendor Name: Carrier
• Air Flow Direction: Multi-Position
• Blower Motor HP: 0.33333333333333331
• Blower Motor Speeds: 5 - Speed
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Carrier
• CFM: 525
• Cabinet Width: 14
• Cooling Capacity: 18000 Btu/hr
• Country of Origin: USA
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: NO
• Filter Size: 13 x 20 in
• Includes Filter Rack: YES
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Maximum Overcurrent Protection (MOCP): 15 A
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• OPT Code: 1PFJ5ANXA18L00
• Phase: Single
• Product Family: FJ5
• Prop 65: YES
• Refrigerant: R-454B
• Stage: 1
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 5/8"
• Tier: Comfort™
• Tonnage: 1.5
• Voltage: 208-230 VAC
• Domestic/Import: Import
• Flow Rate: 525 cfm
• Frequency Rating: 60 Hz
• Material: Galvanized Steel
• Motor HP: 1/3 hp
• Motor Type: ECM Blower
• Nominal Capacity: 1.5 Ton
• Number of Phases: 1 ph
• Series: Comfort FJ5
• Line Voltage (60Hz): 240V
• CFM Nominal: 525
• Frequency: 60
• Indoor Coil Material: Aluminum
• Indoor Fan Motor FLA: 2.9
• Liquid Line Fitting: Sweat
• MCA: 4
• Motor Phase: 1
• Type: Slope Coil
• UL Listed: False
• UL Recognized: False
• Cabinet Type: Single Piece
• Communicating: No
• Configuration: Multipoise
