Carrier FJ4DNXA18 FCU Comfort Puron 1.5T 208/230-1

Product Description

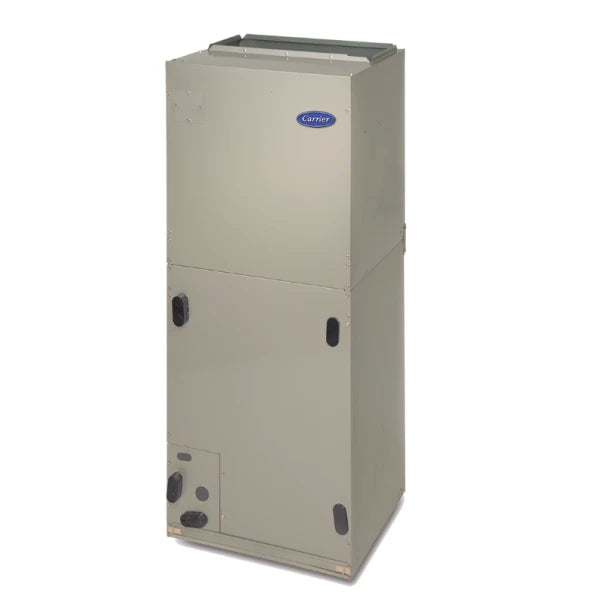

The CARRIER FJ4DNXA18 FCU Comfort Puron is a multipoise fan coil unit with a cooling capacity of 18,000 BTU and uses R-410A refrigerant. It features all-aluminum coils for enhanced corrosion resistance and a high-efficiency, multi-tap ECM 5-speed blower motor. Designed for improved humidity control and includes a thermostatic expansion valve (TXV) on all coils.

• All aluminum coils for enhanced corrosion resistance
• High-efficiency, Multi-Tap ECM 5-speed blower motor
• Improved humidity control

Product Highlights

This fan coil unit provides superior cooling and heating performance for residential spaces with flexible installation options.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: FJ4DNXA18
• Country of Origin: USA

Technical Specifications

• Brand: Carrier
• Configuration: Multipoise
• Cooling Capacity: 18000
• Family: Comfort
• Line Voltage (60Hz): 240V
• Refrigerant: R410A
• Tonnage: 1.5
• Type: Slope Coil
• Blower Motor HP: 1/3
• Blower Motor RPM: 1050
• Blower Motor Speeds: 5 - Speed
• CFM Nominal: 600
• Filter Height: 20
• Filter Length: 13
• Filter Width: 1
• Frequency: 60
• Height: 42.69 in
• Includes Filter Rack: False
• Indoor Coil Material: Aluminum
• Indoor Fan Motor FLA: 2.9
• Indoor FPI: 14.5
• Indoor Number of Rows: 3
• Length: 22.16 in
• Liquid Line Fitting: Sweat
• Maximum Circuit Breaker: 15
• MCA: 4
• Metering Device: TXV/TXV
• Minimum Cooling Capacity: 17100
• Motor Phase: 1
• Suction Line Fitting: Sweat in
• Weight: 115 lb
• Width: 14.31 in
• Air Flow Direction: Multi-Position
• Approvals: UL Listed
• Blower Motor Type: ECM (Electronically Commutated Motor)
• CFM: 525
• Cabinet Width: 14
• Cooling Rated Capacity (Btu/h): 18000
• Country of Origin: USA
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 3/4"
• Energy Star Rated: NO
• Filter Size: 13" x 20
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Maximum Overcurrent Protection (MOCP): 15
• Phase: Single
• Product Family: FJ4
• Prop 65: YES
• Stage: 1
• Tier: Base
• Voltage: 208-230 VAC
• Model: FJ4DNXA18L00
