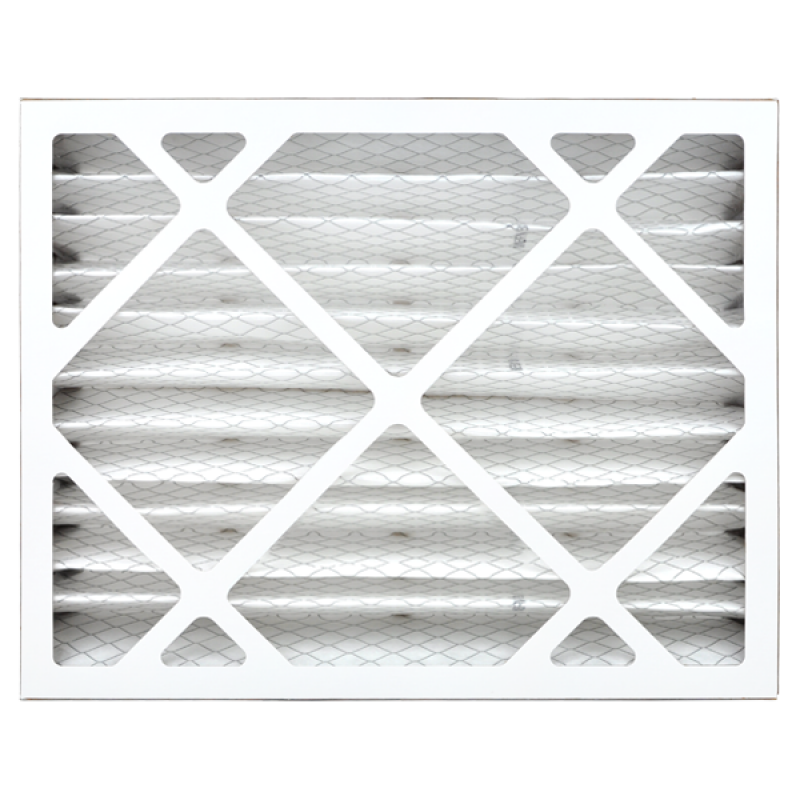

CARRIER FILXXFNC0117 16x20x4 Air Filter

Product Description

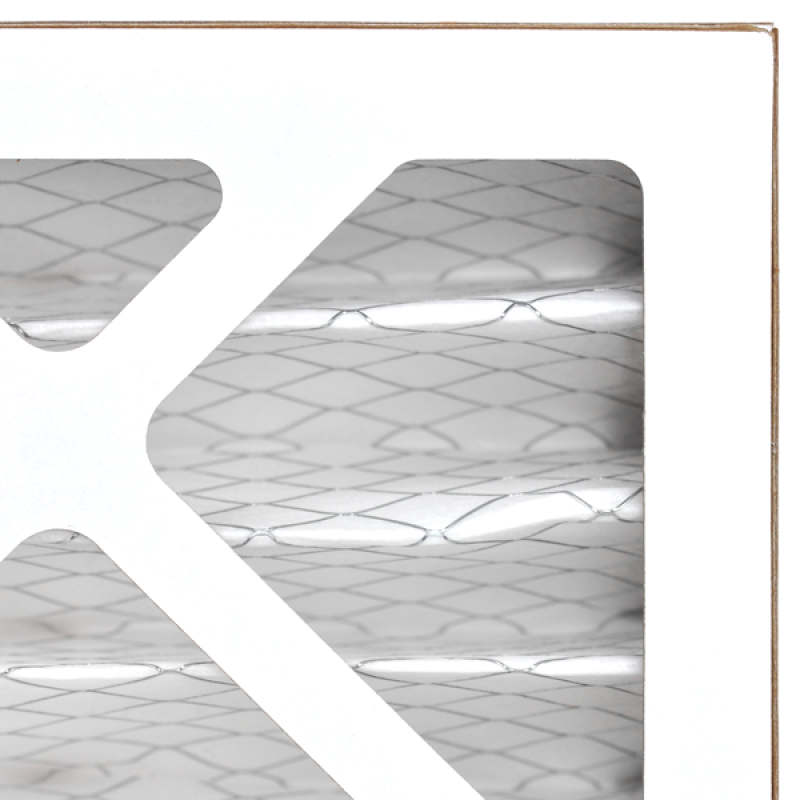

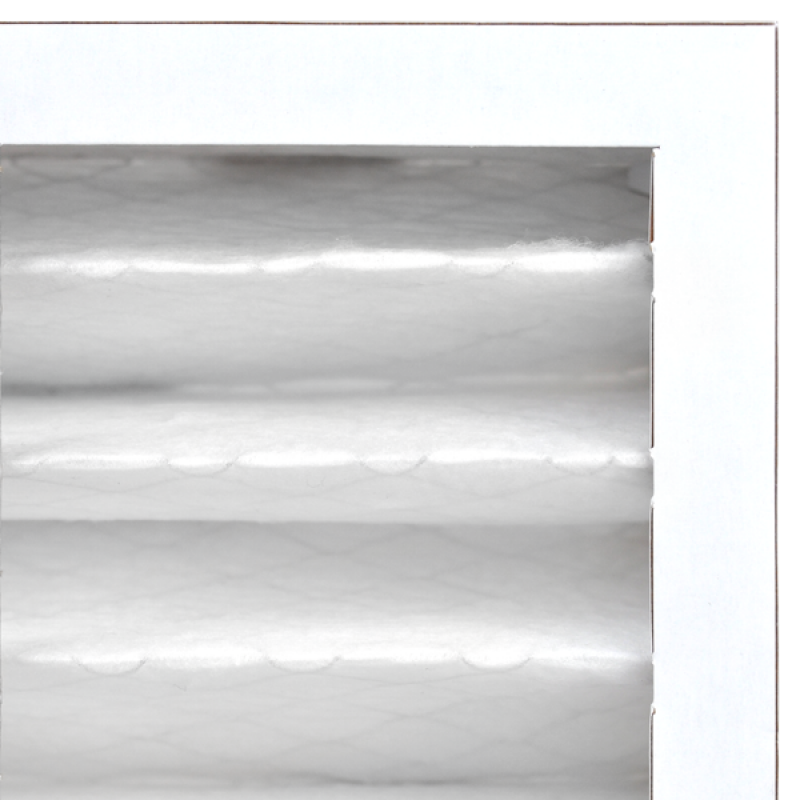

The CARRIER FILXXFNC0117 air filter is a cartridge filter made for air cleaners. It features synthetic gradient media that is electrostatically charged and prevents microbiological growth. The filter is supported by a galvanized metal grid and has a double-wall beverage board frame that resists moisture. This filter has a MERV rating of 11, capturing particles from 0.3 to 10 microns. It operates effectively at a maximum temperature of 180F and can withstand up to 100% relative humidity.

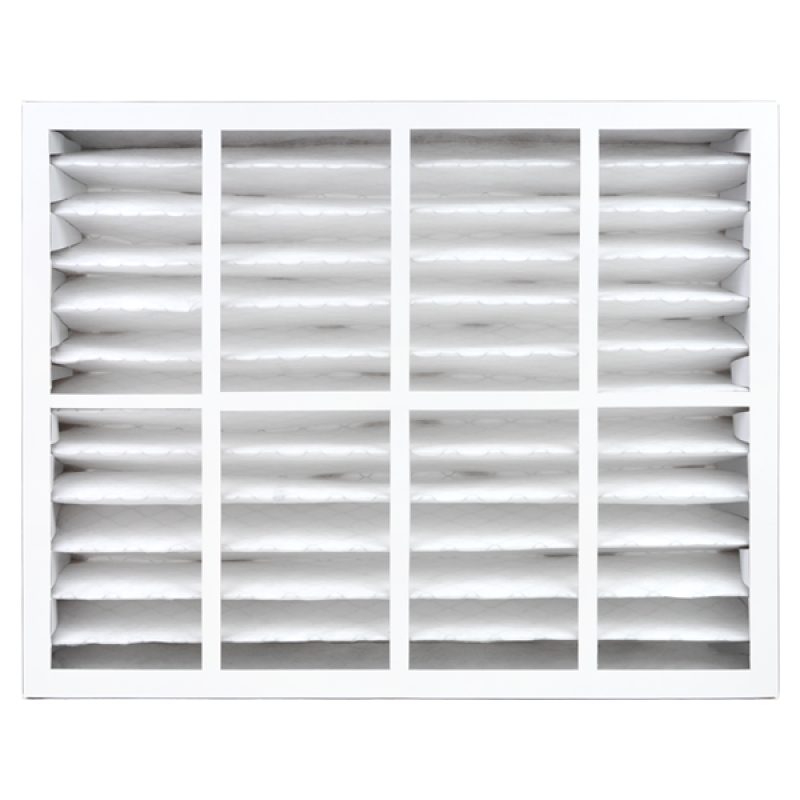

• Four-inch pleated design enhances filtration efficiency.
• Effective against dust, pollen, mold spores, smoke, and dander.
• Compatible with FNCCAB filter cabinets and replaces part number FILXXFNC-0017.

Product Highlights

This filter provides superior air quality by efficiently trapping various airborne contaminants.

Product Information

Standard Information

• Product Model: FILXXFNC0117
• Size: 16 x 20 x 4 inches

Technical Specifications

• MERV Rating: 11
• Filter Type: Cartridge
• Filter Media: Synthetic gradient media
• Support Grid: 30 gauge galvanized metal
• Frame: Moisture resistant double-wall beverage board
• Max Temperature: 180F (82C)
• Max Humidity: 100% R.H.
• Dimensions: Actual size 15-5/8 x 19-13/16 x 4-5/16 inches
