CARRIER FILXXFNC0114 Air Filter - 12x20x4 - MERV 11/13

Product Description

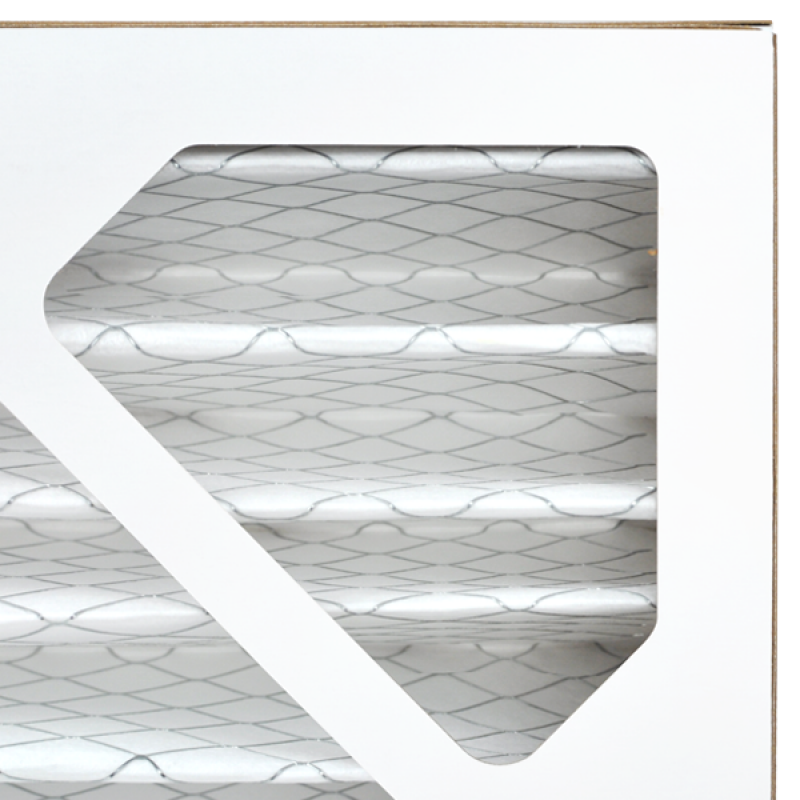

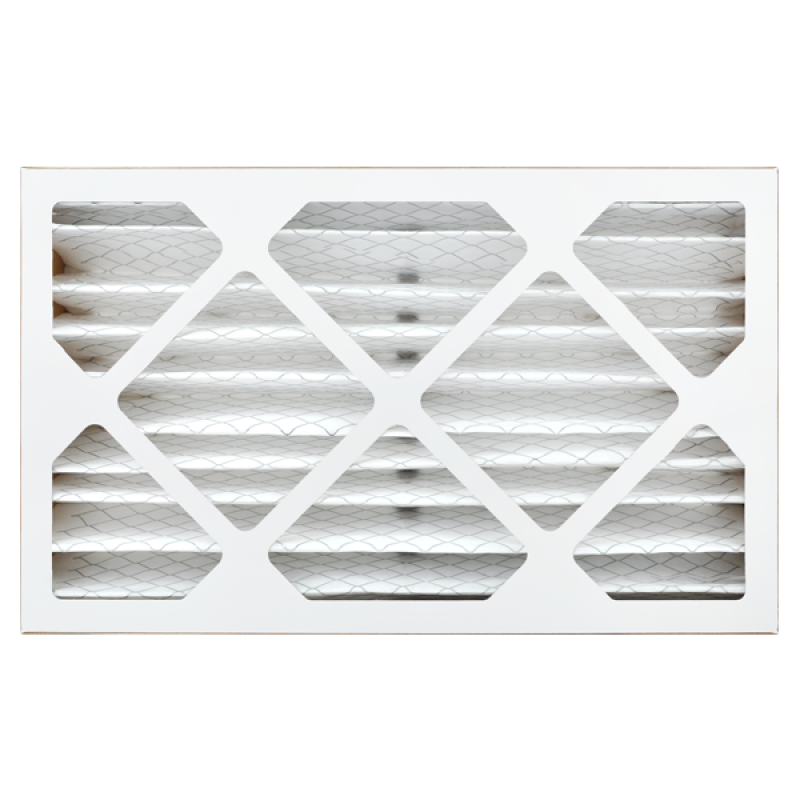

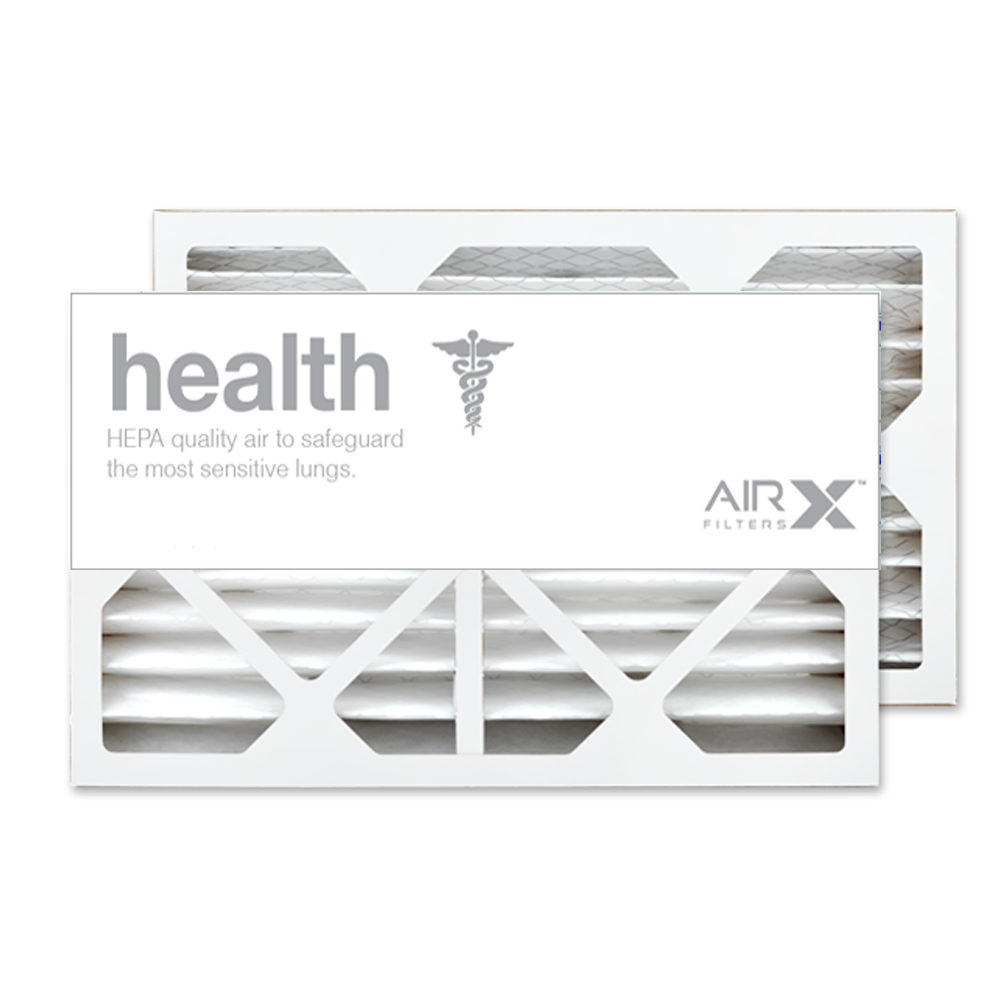

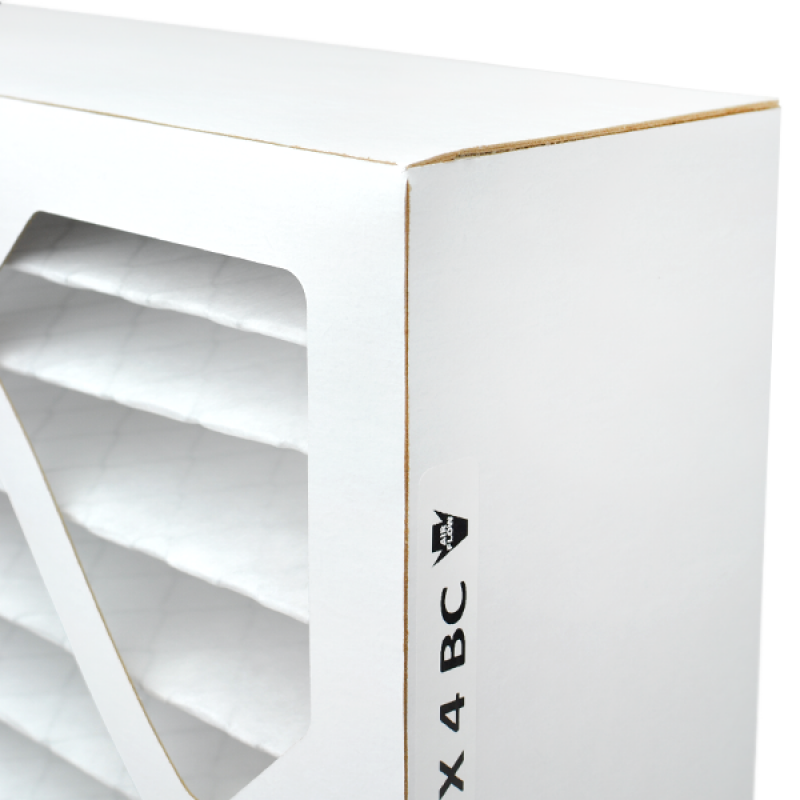

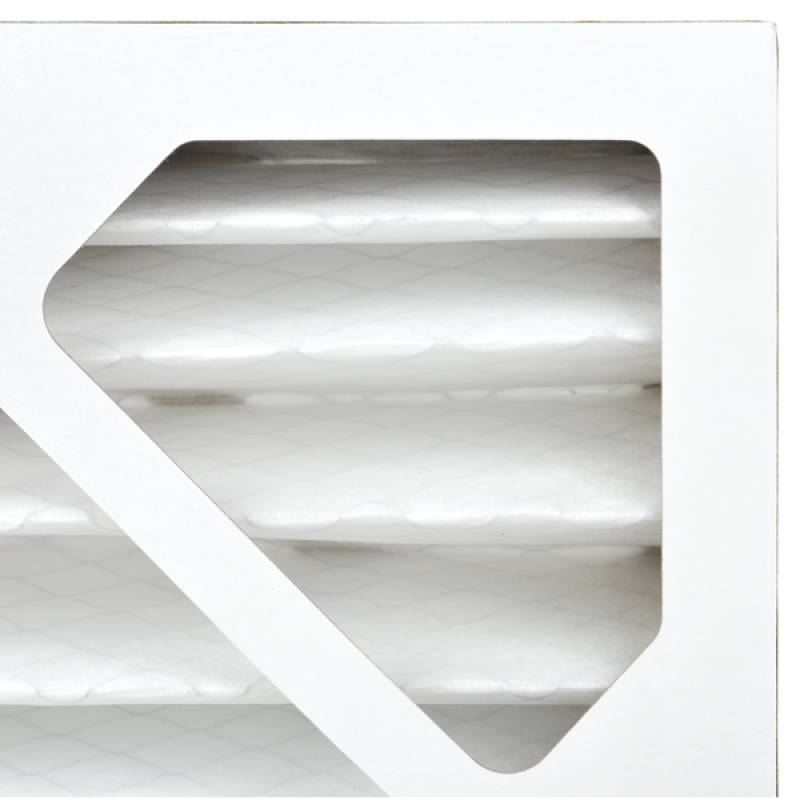

The CARRIER FILXXFNC0114 air filter is a pleated filter designed for use with air cleaners. This filter utilizes electrostatically charged 100% synthetic gradient media, ensuring it does not support microbiological growth. Built with a moisture-resistant double-wall beverage board frame, it has a robust design featuring a thirty-gauge galvanized expanded metal grid for support.

• Rated for continuous service temperatures up to one hundred eighty degrees Fahrenheit.
• Effective in capturing over ninety percent of particles ranging from one to three microns.
• Replacement interval of six to twelve months under normal conditions.

Product Highlights

This filter is designed to improve air quality by trapping dust, pollen, molds, smoke, grease, bacteria, and dander. The expanded surface area allows for low pressure drop, making it efficient for HVAC systems.

Product Information

Standard Information

• Brand: Carrier
• Country of Origin: USA

Technical Specifications

• Nominal Dimensions: 12 x 20 x 4
• Actual Dimensions: 12-1/8 x 20 x 4-1/4
• Filter Media: Electrostatically charged gradient media
• Filter Support Grid: 30-gauge galvanization
• Frame: Double-wall beverage board
• Max Temperature: 180°F continuous, peak 225°F
• Max Humidity: 100% R.H.
• Weight: 2.7 pounds
• MERV Rating: 11/13
• Filter Efficiency: 21% to 86%
• Filter Type: Whole House
• Frame Type: High wet strength beverage board
• Filter Rating (Microns): 0.03 to 10.0
