Carrier FAVXXR6C2100-B01 fresh air vent and control 24 volt AC 6 inch round 100 CFM replaces FAVXXR6C2100-A01

Product Description

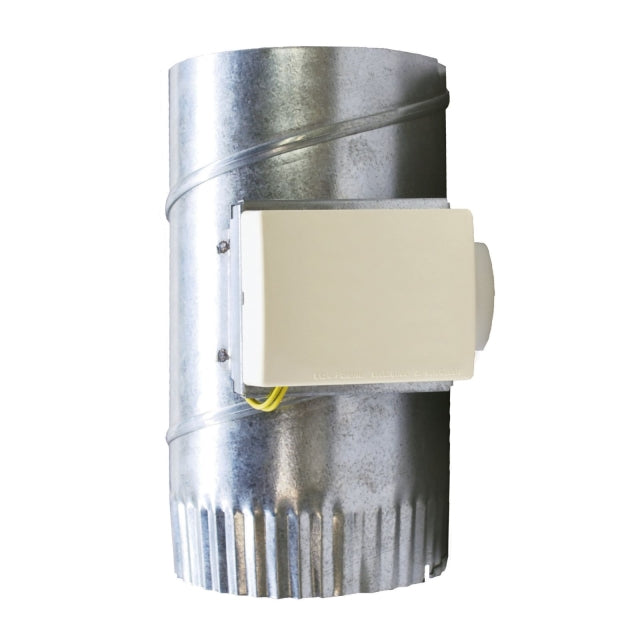

The Carrier FAVXXR6C2100-B01 is an outside air damper and fresh air vent with a 6-inch round damper and digital control. Operating at 24 volt AC and providing 100 CFM, this system manages fresh air quantity in heating and cooling systems. It helps meet mechanical ventilation building codes by reducing indoor contaminants and diluting stale air. The digital controller offers adjustable flexibility for precise fresh air management, preventing damper opening outside optimal temperature and humidity conditions.

• Outside air damper for fresh air introduction.
• Manages fresh air quantity within heating and cooling systems.
• Meets mechanical ventilation building codes for energy-efficient homes.

Product Highlights

Integrates with HVAC systems to control fresh air intake and improve indoor air quality.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: FAVXXR6C2100-B01
• Country of Origin: USA

Technical Specifications

• Brand: Carrier
• Model: FAVXXR6C2100-B01
• Replacement For: FAVXXR6C2100-A01
• Damper Type: Round
• Damper Diameter: 6 inch (152 mm)
• Control Type: Digital
• Input Voltage: 24V AC
• Airflow Capacity: 100 CFM
• Composition - Damper Body: 24 GA galvanized
• Composition - Damper Blade: 20 GA galvanized
• Composition - Damper Shaft: Aluminum
• OPT Code: 1PFAVXXR6C2100-B01
• Prop 65 Warning: True
• Tier: Standard
• Operating Temperature Range (Outdoor): 0°F (-17°C) to 100°F (38°C)
• Indoor Humidity Limit: 55%
