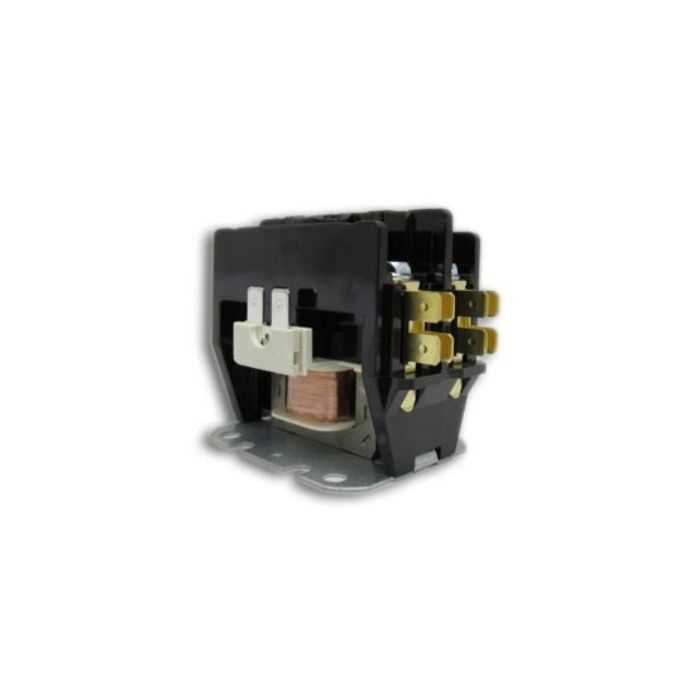

Carrier F87020323 Contactor 2 Pole 30 Amp 240V

Product Description

The CARRIER F87020323 is a 2-pole contactor rated at 30 amps and 208/240 volts, designed for use in residential and light commercial HVAC equipment. Contactors are electromechanical switching devices that control the flow of power to high-draw components such as compressors and condenser fan motors. This unit provides reliable load switching in systems operating on standard single-phase 208/240-volt supply. Licensed HVAC technicians typically source this contactor as a direct OEM replacement when the existing contactor shows signs of pitting, arcing, or coil failure.

The F87020323 is suited for installation in split-system air conditioners and heat pumps where a 2-pole, 30-amp contactor is specified. It is used in both residential condensing units and packaged equipment operating on 208/240-volt power. This part is typically installed in the unit's control panel and switched by a 24-volt control signal from the thermostat circuit. Service technicians performing routine maintenance or responding to a no-cooling call will find this a standard replacement component in that class of equipment.

Key Features

• 2-pole design switches both legs of a 208/240-volt single-phase circuit
• 30-amp rating suitable for compressor and condenser fan motor loads
• Compatible with 208/240-volt HVAC systems as an OEM-style replacement
• Low-voltage coil control integrates with standard 24-volt thermostat circuits
• Compact form factor fits standard contactor mounting positions in condensing unit control panels

Compatibility

Designed as an OEM-style replacement contactor for Carrier residential and light commercial HVAC condensing units and packaged systems requiring a 2-pole 30-amp 208/240-volt contactor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit at the disconnect box before removing the existing contactor or handling any wiring. Verify the replacement contactor coil voltage matches the control circuit voltage before energizing the system. Follow applicable NEC requirements for conductor sizing and overcurrent protection when servicing the unit's electrical panel.

Technical Specifications

• Poles: 2
• Amperage: 30 amps
• Voltage: 208/240 volts

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: F87020323
