Carrier EZXCABXX1325 Ez Flex Filter Cabinet Merv 13

Product Description

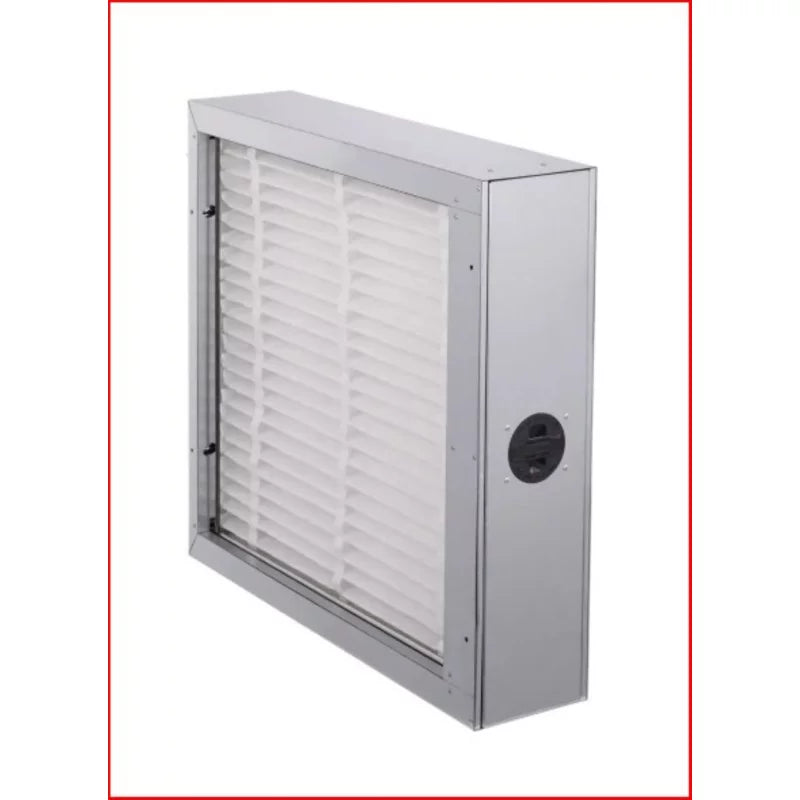

The CARRIER EZXCABXX1325 is a MERV 13 media filter cabinet designed to house high-efficiency filtration media in residential and light-commercial HVAC systems. Built from steel with an insulated interior, this cabinet accepts a nominal 24-inch by 20-inch filter and mounts in-line with the air handler or furnace to capture airborne particulates before they reach the coil or heat exchanger. At MERV 13, the filtration level targets fine dust, pollen, mold spores, and some bacteria-sized particles, making it a meaningful upgrade over standard 1-inch throwaway filters. Licensed HVAC technicians and qualified mechanical contractors are the typical installers for this type of equipment.

The EZXCABXX1325 cabinet is suited for residential split systems and packaged units where improved indoor air quality is a priority. Its 24 by 20 inch nominal filter opening aligns with common air handler return configurations. The insulated steel housing helps prevent condensation on the cabinet exterior during cooling-season operation, protecting the surrounding structure and reducing energy loss. Compatible with Carrier and Bryant equipment lines, this cabinet integrates cleanly into new installations or can be added to existing systems during a service call or equipment replacement.

Key Features

• MERV 13 filtration rating captures fine particulates including dust, pollen, mold spores, and some bacteria-sized particles
• Nominal 24-inch by 20-inch filter opening fits common residential air handler return configurations
• Insulated steel cabinet construction resists condensation and reduces energy loss
• Gray powder-coat finish provides corrosion resistance in mechanical room environments
• Manufactured in the USA
• OPT Code 1PEZXCABXX1325 for factory ordering reference

Compatibility

Designed for use with Carrier and Bryant residential HVAC systems. Accepts a nominal 24-inch by 20-inch media filter. Consult the system installation manual or Carrier product literature to confirm fitment for a specific air handler or furnace model before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's installation instructions. Power down the air handler or furnace at the disconnect and thermostat before beginning cabinet installation. Ensure the cabinet is properly sealed to the duct or equipment cabinet to prevent bypass air from circumventing the filter media. Filter media is not included with the cabinet and must be ordered separately.

Technical Specifications

• Filtration Rating: MERV 13
• Nominal Filter Width: 24 inches
• Nominal Filter Height: 20 inches
• Cabinet Length: 22.25 inches
• Cabinet Width: 6.5 inches
• Cabinet Height: 24.448 inches
• Weight: 20.6 pounds
• Material: Steel
• Color: Gray
• Insulated: Yes
• Country of Origin: USA

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1325
