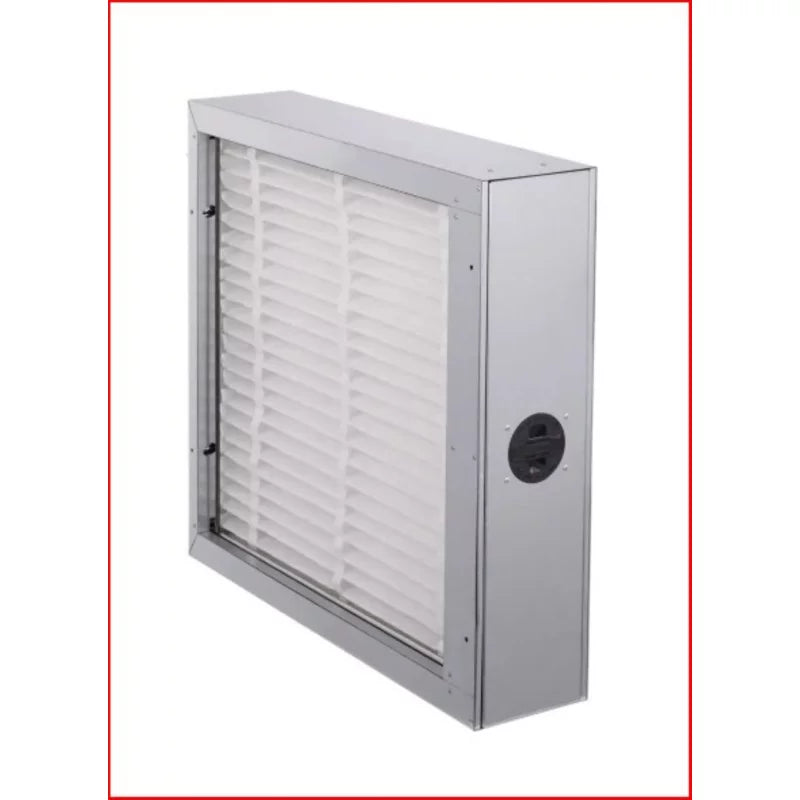

Carrier EZXCABXX1321 Ez Flex Filter Cabinet Merv 13 20x20

Product Description

The CARRIER EZXCABXX1321 is a 20x20 inch EZ Flex filter cabinet rated MERV 13, designed to house high-efficiency media filters in residential forced-air HVAC systems. Constructed from insulated steel, this cabinet installs in-line with the air handler or furnace to deliver improved indoor air quality by capturing fine particulate matter before it reaches the coil or blower. At 19.3 pounds and finished in gray, the unit is a durable, field-ready component suited for installation by licensed HVAC technicians during new construction or system retrofits. The insulated cabinet body reduces thermal loss and prevents condensation around the filter housing.

This filter cabinet is intended for residential forced-air applications where a MERV 13 filtration level is specified. The nominal 20x20 inch filter size accommodates standard replacement media, making routine maintenance straightforward for service technicians. It is suited for installations alongside compatible air handlers and furnaces where side-access or in-line filter cabinet configurations are required. Manufactured in the USA, the EZXCABXX1321 is a factory-engineered solution for upgrading or replacing an existing filter cabinet in a ducted HVAC system.

Key Features

• MERV 13 filtration rating captures fine particulate including dust, pollen, and airborne contaminants
• Nominal 20x20 inch filter footprint accepts standard replacement media
• Insulated steel cabinet body minimizes thermal loss and condensation risk
• Gray powder-coat finish provides corrosion resistance in mechanical room environments
• Manufactured in the USA for consistent OEM-quality construction
• Compact profile at 6.5 inches wide supports tight mechanical room installations

Compatibility

Listed as a Carrier and Bryant branded product, the EZXCABXX1321 is designed as an OEM-style filter cabinet for use with compatible Carrier and Bryant residential forced-air HVAC systems requiring a 20x20 inch in-line filter cabinet.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect before beginning any cabinet installation or filter service. Verify duct dimensions and orientation before mounting to ensure a proper seal and airflow direction. Follow local mechanical codes and manufacturer instructions for securing the cabinet to the duct system.

Technical Specifications

• MERV Rating: 13
• Nominal Filter Height: 20 inches
• Nominal Filter Width: 20 inches
• Overall Length: 22.25 inches
• Overall Width: 6.5 inches
• Overall Height: 20.998 inches
• Weight: 19.3 pounds
• Material: Steel
• Color: Gray
• Insulated: Yes
• Country of Origin: USA
• OPT Code: 1PEZXCABXX1321

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1321
