Carrier EZXCABXX1317 Ez Flex Filter Cabinet Merv 13

Product Description

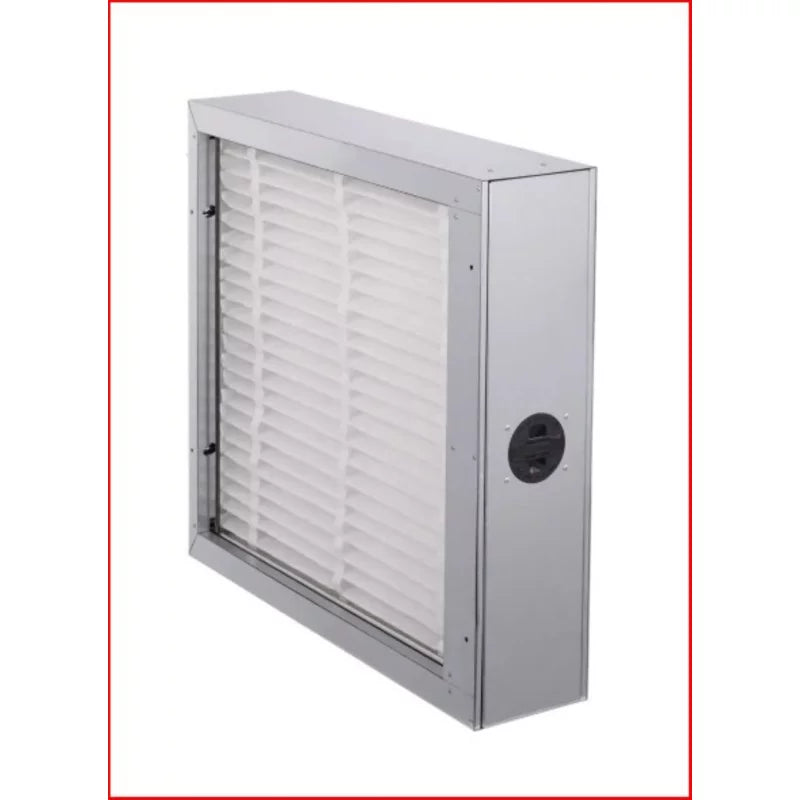

The CARRIER EZXCABXX1317 is a MERV 13 filter cabinet designed for residential HVAC systems. It houses a 16-inch by 20-inch media filter and provides a sealed, insulated enclosure that keeps conditioned air from bypassing the filter media. Built from steel with a gray finish, this cabinet integrates directly into a forced-air system and is installed by licensed HVAC technicians as part of a whole-home filtration upgrade. MERV 13 filtration captures fine particulates including dust, pollen, mold spores, and some bacteria-sized particles, making it a common specification in indoor air quality retrofits and new installations.

This cabinet fits into residential forced-air duct systems, typically installed in-line on the return-air side of an air handler or furnace. It is suited for applications where upgrading from a standard 1-inch throwaway filter to a high-capacity media filter is required. The insulated construction helps reduce condensation risk on the cabinet exterior in humid conditions. The nominal 16-inch by 20-inch filter slot accommodates standard-sized media filters for ease of servicing.

Key Features

• MERV 13 rated filtration captures fine particulates for improved indoor air quality
• Nominal 16-inch by 20-inch filter opening for standard media filter compatibility
• Insulated steel cabinet construction reduces condensation and heat loss
• Gray powder-coated steel body for durability in mechanical room environments
• Manufactured in the USA

Compatibility

Listed under the Carrier and Bryant brand families. OPT Code 1PEZXCABXX1317 may be referenced for cross-ordering within those product lines. Designed as an OEM-style return-air filter cabinet for residential forced-air HVAC systems using a nominal 16-inch by 20-inch media filter.

Installation Notes

Installation is performed by a licensed HVAC technician. The system should be fully powered down at the disconnect and thermostat before cabinet installation or filter service. The cabinet is cut into the return-air duct plenum and sealed with sheet-metal screws and foil tape per manufacturer instructions and local mechanical code requirements. Verify duct dimensions and clearances before cutting to ensure proper fit and airflow direction.

Technical Specifications

• Nominal Filter Width: 16 inches
• Nominal Filter Height: 20 inches
• MERV Rating: 13
• Cabinet Length: 22.25 inches
• Cabinet Width: 6.5 inches
• Cabinet Height: 17.448 inches
• Weight: 18 pounds
• Material: Steel
• Color: Gray
• Insulated: Yes
• Country of Origin: USA
• OPT Code: 1PEZXCABXX1317

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1317
