Carrier EZXCABXX1316 Filter Cabinet 16x25 Merv 13

Product Description

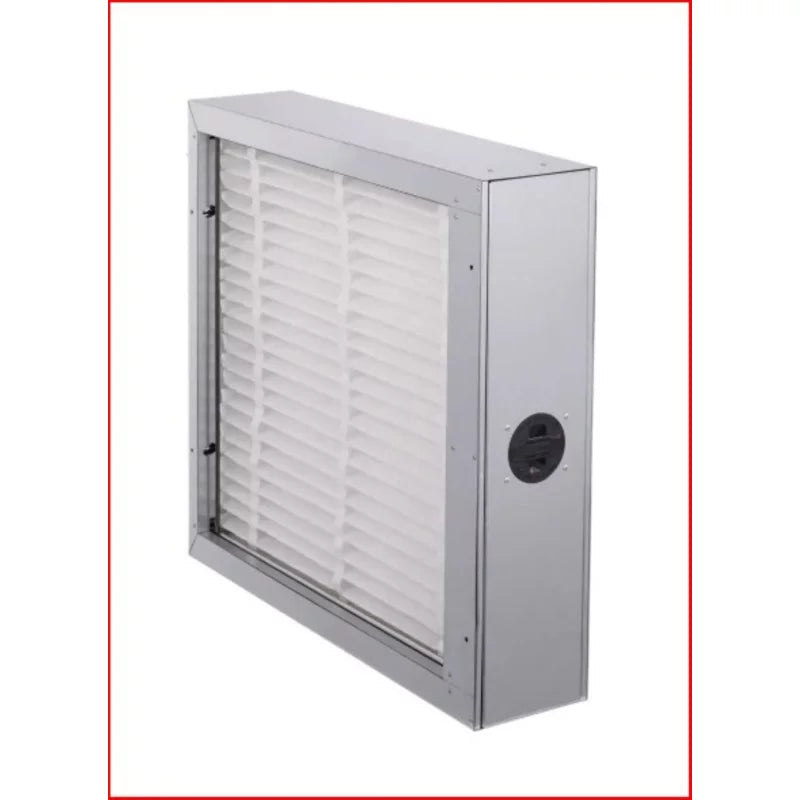

The CARRIER EZXCABXX1316 is an insulated filter cabinet designed to house a 16x25-inch MERV 13 filter in residential and light commercial forced-air HVAC systems. Built from steel and finished in gray, the cabinet measures 26.5 inches in length, 6.5 inches in width, and 17 inches in height, weighing 20 pounds. The insulated construction limits condensation and heat transfer at the filter cabinet location. Licensed HVAC technicians install this cabinet as part of a complete air filtration upgrade, typically during system servicing or new installation.

This filter cabinet fits into ducted forced-air systems where improved indoor air quality is a priority. The MERV 13 rating makes it suited for applications requiring higher particulate capture efficiency, including residential settings with allergy or air quality concerns and light commercial environments. The cabinet is manufactured in the USA and carries dual branding for Carrier and Bryant systems, making it appropriate for a range of residential HVAC installations.

Key Features

• Accepts a nominal 16x25-inch MERV 13 filter for high-efficiency particulate capture
• Insulated cabinet construction reduces condensation risk and heat loss at the filter section
• Steel construction for durable, long-term service in ducted air systems
• Compact depth of 6.5 inches supports installation in space-constrained mechanical areas
• Gray finish consistent with standard HVAC equipment aesthetics
• Manufactured in the USA

Compatibility

Designed for Carrier and Bryant forced-air HVAC systems. Accepts a nominal 16-inch by 25-inch filter. OPT Code 1PEZXCABXX1316.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect and thermostat before beginning any duct or cabinet work. The cabinet must be properly sealed into the duct system to prevent air bypass around the filter media. Follow local mechanical codes and manufacturer guidelines for filter cabinet installation and filter change intervals.

Technical Specifications

• Nominal Filter Width: 16 inches
• Nominal Filter Height: 25 inches
• Length: 26.5 inches
• Width: 6.5 inches
• Height: 17 inches
• Weight: 20 pounds
• Material: Steel
• Color: Gray
• Insulated: Yes
• Country of Origin: USA
• OPT Code: 1PEZXCABXX1316

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1316
