Carrier EZXCABXX1125 Ez Flex Filter Cabinet Merv 11 24x20

Product Description

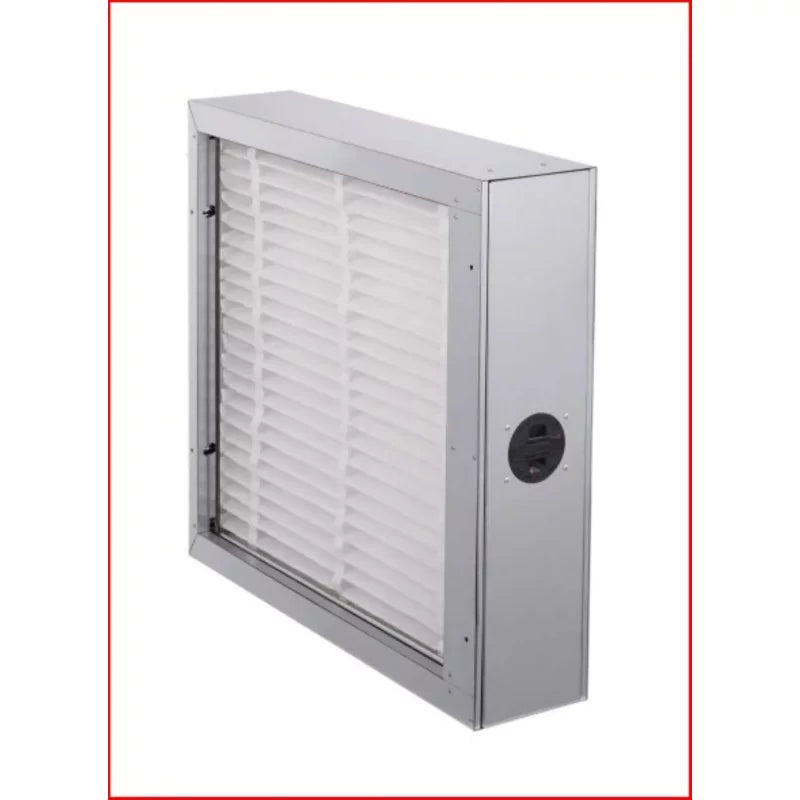

The CARRIER EZXCABXX1125 is a MERV 11 filter cabinet designed to house high-capacity media filters in residential forced-air HVAC systems. Built from steel with a gray finish, this insulated cabinet accepts a nominal 24x20 inch filter and mounts inline with the air handler or furnace to improve indoor air quality and protect system components. At 20.6 pounds and manufactured in the USA, this cabinet is a durable, factory-engineered solution for technicians looking to upgrade a system from a standard 1-inch filter slot to a deep-media filtration setup. Licensed HVAC technicians and HVAC installers handle this type of cabinet replacement or new installation.

The EZXCABXX1125 is suited for residential applications where improved filtration is needed without a full system replacement. It integrates with standard forced-air systems and is sized to accept a nominal 24-inch by 20-inch media filter. The insulated steel cabinet helps prevent condensation and energy loss at the filter housing, making it appropriate for both heating and cooling season operation. This cabinet is commonly installed in basements, utility rooms, and mechanical closets where space allows for a dedicated filtration section in the duct system.

Key Features

• MERV 11 filtration rating captures finer airborne particles compared to standard 1-inch filters
• Nominal 24x20 inch filter size for high-volume airflow applications
• Insulated steel cabinet construction minimizes condensation and heat loss
• Gray powder-coat finish for corrosion resistance in typical mechanical room environments
• Manufactured in the USA
• OPT Code 1PEZXCABXX1125 for ordering and reference purposes

Compatibility

Listed as compatible with Carrier and Bryant forced-air HVAC systems. Verify duct dimensions and cabinet clearance before installation. OPT Code 1PEZXCABXX1125 may be used for cross-reference with distributor ordering systems.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect and thermostat before cutting into the duct system or removing existing filter sections. Ensure adequate clearance on all sides of the cabinet for filter removal and service access. Duct connections must be sealed per local mechanical codes to prevent bypass air leakage around the cabinet.

Technical Specifications

• MERV Rating: 11
• Nominal Filter Width: 24 inches
• Nominal Filter Height: 20 inches
• Cabinet Length: 22.25 inches
• Cabinet Width: 6.5 inches
• Cabinet Height: 24.448 inches
• Weight: 20.6 pounds
• Material: Steel
• Color: Gray
• Insulated: Yes
• Country of Origin: USA
• OPT Code: 1PEZXCABXX1125

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1125
