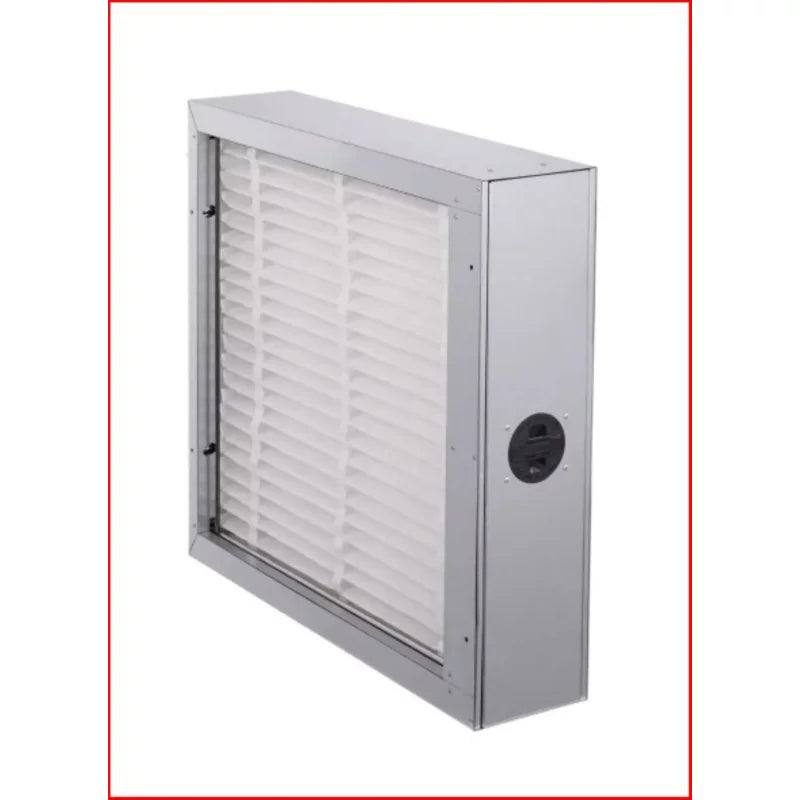

Carrier EZXCABXX1121 Ez Flex Filter Cabinet Merv 11

Product Description

The CARRIER EZXCABXX1121 is a 20x20 inch EZ Flex filter cabinet rated MERV 11, designed to house high-efficiency media filters in residential and light-commercial forced-air HVAC systems. Built from insulated steel, this cabinet integrates directly into a return-air duct system to provide a secure, sealed enclosure for media filter cartridges. At 19.3 pounds and measuring 22.25 inches long, 6.5 inches wide, and 20.998 inches tall, it is a substantial, rigid assembly suited for permanent installation. Licensed HVAC technicians handle the installation as part of a system upgrade or new construction project.

This cabinet is intended for use in residential and light-commercial air handling systems where improved filtration is required. The MERV 11 rating makes it appropriate for environments where fine dust, mold spores, and similar airborne particulates are a concern. The 20x20 inch nominal filter size accommodates standard EZ Flex media cartridges. It is factory-manufactured in the USA and carries the Carrier and Bryant brand designations, making it a recognized OEM component for those equipment lineups.

Key Features

• MERV 11 filtration rating captures fine dust, mold spores, and similar airborne particulates
• 20x20 inch nominal filter opening accommodates standard EZ Flex media cartridges
• Insulated steel construction reduces thermal loss and minimizes condensation risk
• Gray powder-coat finish resists corrosion in typical mechanical room environments
• Manufactured in the USA as an OEM-style component
• Rigid cabinet dimensions provide a stable, sealed fit in return-air ductwork

Compatibility

Designed as an OEM-style replacement and new-installation filter cabinet carrying Carrier and Bryant brand designations, intended for forced-air HVAC systems requiring a 20x20 inch nominal EZ Flex media filter enclosure.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's instructions. Shut down the air handling unit and lock out power at the disconnect before cutting into the return-air duct or making any cabinet connections. Verify duct dimensions match the cabinet footprint before cutting to avoid gaps that would allow unfiltered air to bypass the media. Seal all cabinet-to-duct joints with approved foil tape or mastic to maintain system static pressure and filtration integrity.

Technical Specifications

• Nominal Filter Height: 20 inches
• Nominal Filter Width: 20 inches
• Length: 22.25 inches
• Width: 6.5 inches
• Height: 20.998 inches
• Weight: 19.3 pounds
• MERV Rating: 11
• Material: Steel
• Insulated: Yes
• Color: Gray
• Country of Origin: USA

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1121
