Carrier EZXCABXX1120 Ez Flex Filter Cabinet Merv 8 20x25

Product Description

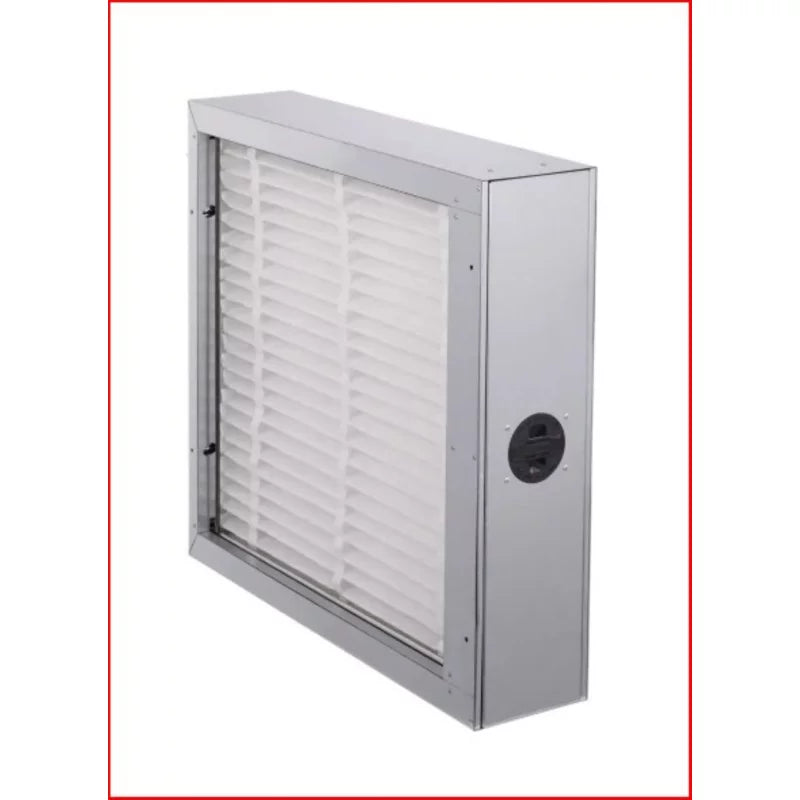

The CARRIER EZXCABXX1120 is a 20x25 inch EZ Flex filter cabinet rated MERV 8, designed to house high-capacity media filters in residential forced-air HVAC systems. Built from insulated steel and finished in gray, this cabinet mounts inline with the air handler or furnace to provide a dedicated filter compartment separate from the unit cabinet. At 21.6 pounds and nominally sized for a 20x25 inch filter, it delivers a robust, airtight enclosure that supports improved indoor air quality without restricting airflow. Licensed HVAC technicians install this cabinet as part of new system installations or retrofits where expanded filtration capacity is needed.

This filter cabinet is suited for residential forced-air applications where standard filter slots do not accommodate thicker media filters. It installs on the return-air side of the air handler or furnace and is compatible with the EZ Flex family of media filters in the 20x25 nominal size. The insulated steel construction helps prevent condensation and energy loss at the cabinet wall. Typical applications include single-family homes and light commercial spaces requiring a dedicated, accessible filter housing with MERV 8 filtration performance.

Key Features

• Nominally sized for 20x25 inch MERV 8 media filters
• Insulated steel construction minimizes condensation and heat loss
• Gray powder-coat finish for corrosion resistance
• Manufactured in the USA
• Compatible with the EZ Flex filter system family
• OPT Code 1PEZXCABXX1120 for ordering reference

Compatibility

Designed for use with Carrier and Bryant forced-air HVAC systems as an EZ Flex filter cabinet solution for 20x25 inch nominal media filters. Specific system model compatibility should be confirmed against Carrier and Bryant installation guides prior to ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler or furnace at the breaker before beginning any ductwork or cabinet modifications. The cabinet is installed on the return-air side of the system and must be sealed to prevent air bypass around the filter media. Follow local mechanical codes and manufacturer installation instructions for proper orientation and duct connections.

Technical Specifications

• Nominal Filter Width: 20 inches
• Nominal Filter Height: 25 inches
• MERV Rating: 8
• Length: 26.5 inches
• Width: 6.5 inches
• Height: 21 inches
• Weight: 21.6 pounds
• Material: Steel
• Insulated: Yes
• Color: Gray
• Country of Origin: USA
• OPT Code: 1PEZXCABXX1120

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1120
