Carrier EZXCABXX1116 Ez Flex Filter Cabinet 16x25 Merv 8

Product Description

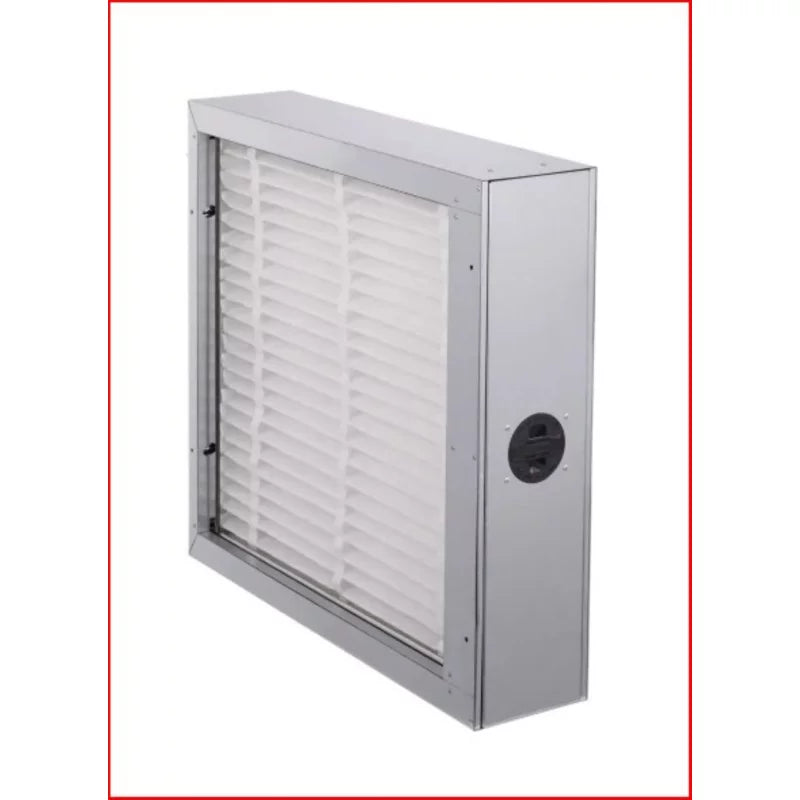

The CARRIER EZXCABXX1116 is a 16x25 inch EZ Flex filter cabinet rated for MERV 8 filtration, designed to house high-capacity media filters in residential and light commercial forced-air HVAC systems. Built from steel with an insulated construction, this cabinet integrates directly into the return-air side of a system, providing a secure, sealed enclosure for deep-media filter elements. It measures 26.5 inches in length, 6.5 inches in width, and 17 inches in height, weighing 20 pounds. Licensed HVAC technicians install this cabinet during new equipment installations or as an upgrade to existing systems lacking a dedicated filtration enclosure.

This filter cabinet is suited for residential and light commercial forced-air applications where improved indoor air quality and system protection are priorities. The 16x25 inch nominal filter size accommodates standard deep-media filter cartridges. It installs in the return-air duct section upstream of the air handler or furnace, keeping particulates out of the heat exchanger and blower assembly. The insulated steel cabinet minimizes condensation risk and helps maintain consistent airflow performance across a range of operating conditions.

Key Features

• MERV 8 filtration rating for effective capture of dust, pollen, and airborne particulates
• 16x25 inch nominal filter opening accommodates standard deep-media cartridges
• Insulated steel construction reduces condensation and supports structural rigidity
• Compact footprint at 26.5 x 6.5 x 17 inches fits tight mechanical room installations
• Gray powder-coat finish for corrosion resistance in typical mechanical environments
• Made in the USA

Compatibility

Designed for use with Carrier and Bryant forced-air HVAC systems. Compatible with standard 16x25 inch nominal deep-media filter cartridges for EZ Flex cabinet applications.

Installation Notes

Installation is performed by a licensed HVAC technician. Power down the air handler or furnace at the disconnect and thermostat before beginning cabinet installation. The cabinet mounts to the return-air duct section and must be sealed to prevent air bypass, which would reduce filtration effectiveness. Follow local mechanical codes and manufacturer instructions for duct attachment and fastener requirements.

Technical Specifications

• Nominal Filter Width: 16 inches
• Nominal Filter Height: 25 inches
• Length: 26.5 inches
• Width: 6.5 inches
• Height: 17 inches
• Weight: 20 pounds
• MERV Rating: 8
• Material: Steel
• Color: Gray
• Insulated: Yes
• Country of Origin: USA
• OPT Code: 1PEZXCABXX1116

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1116
