Carrier EZXCABXX1114 Ez Flex Filter Cabinet Merv 8 12x20

Product Description

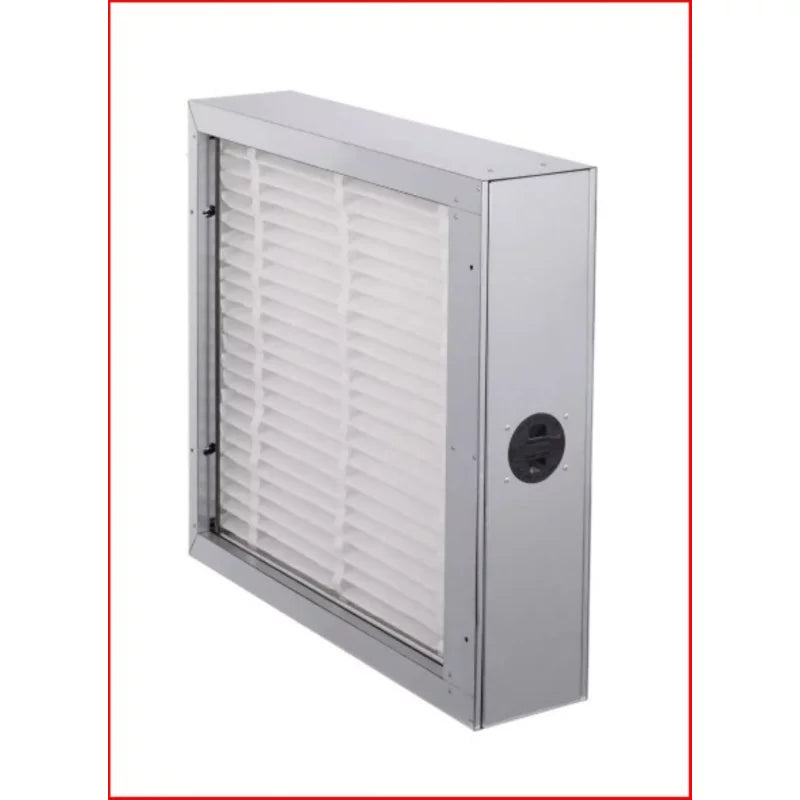

The CARRIER EZXCABXX1114 is an EZ Flex filter cabinet rated MERV 8, designed for residential forced-air HVAC systems. Built from insulated steel construction, this cabinet houses a nominal 12-inch by 20-inch filter and integrates directly into the return-air side of a furnace or air handler. At 16.6 pounds and finished in gray, the cabinet offers a durable, low-profile installation footprint. The insulated housing helps minimize condensation and heat loss at the filter housing, maintaining system efficiency. Licensed HVAC technicians install this cabinet as part of new equipment installations or when upgrading an existing system to accommodate a media-depth filtration solution.

This filter cabinet is suited for residential central HVAC applications where a nominal 12 by 20 inch media filter is required. It installs on the return-air inlet of compatible furnace or air handler units. The fixed, non-adjustable design ensures a consistent, sealed fit with no field modification required. Manufactured in the USA, it carries Carrier and Bryant brand compatibility as an OEM-sourced component.

Key Features

• MERV 8 filtration rating for effective capture of common airborne particulates
• Nominal 12 by 20 inch filter size accommodates standard media filter replacements
• Insulated steel cabinet construction reduces condensation and heat transfer at the housing
• Fixed, non-adjustable and non-flanged design for a consistent sealed installation
• Gray finish with domestic manufacture — country of origin: USA
• Lightweight at 16.6 pounds for ease of handling during installation

Compatibility

Compatible with Carrier and Bryant residential forced-air HVAC systems requiring a nominal 12 by 20 inch return-air filter cabinet. Verify return-air opening dimensions against cabinet specs before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the furnace or air handler at the disconnect and thermostat before beginning any cabinet installation work. The cabinet mounts to the return-air inlet — confirm that the duct opening dimensions match the cabinet footprint to ensure a proper seal. Follow local mechanical codes and manufacturer documentation for fastener type and sealing requirements.

Technical Specifications

• Nominal Filter Width: 12 inches
• Nominal Filter Height: 20 inches
• MERV Rating: 8
• Length: 22.25 inches
• Width: 6.5 inches
• Height: 14.175 inches
• Weight: 16.6 pounds
• Material: Steel
• Insulated: Yes
• Color: Gray
• Adjustable: No
• Flanged: No
• Country of Origin: USA

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EZXCABXX1114
