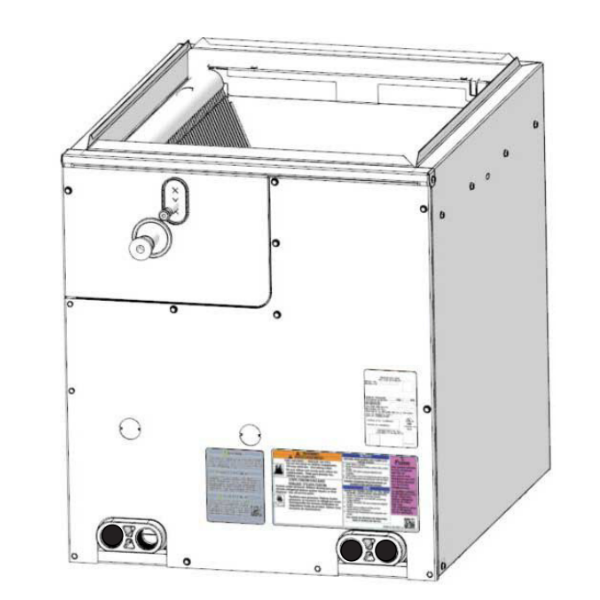

Carrier EVDWX60M24A Cased Vertical V-coil Evaporator Coil

Product Description

The CARRIER EVDWX60M24A is a cased, vertical V-coil evaporator coil designed for use with R-410A refrigerant systems. It is engineered for upflow and downflow air handler configurations where a factory-cased coil is required for a clean, code-ready installation. The coil ships ready to connect to refrigerant lines and a condensate drain, reducing field fabrication time. At 5 tons of cooling capacity and a nominal 24-inch cabinet width, this coil fits a wide range of residential and light-commercial split-system applications. HVAC technicians and mechanical contractors are the primary installers of this component.

This coil is intended for vertical installation in split-system cooling and heat pump configurations using R-410A refrigerant. It is suited for residential and light-commercial settings where a factory-cased vertical coil is specified. The 24-inch nominal width accommodates standard air handler cabinet openings in that size class. The V-coil configuration provides increased face area within a compact cabinet footprint, supporting efficient heat transfer across a range of airflow conditions typical in residential forced-air systems.

Key Features

• Factory-cased enclosure for a clean, code-ready field installation
• V-coil configuration increases face area within a compact vertical cabinet
• R-410A rated refrigerant circuit — no retrofitting required for current-generation systems
• Nominal 24-inch cabinet width fits standard residential and light-commercial air handler openings
• Vertical orientation supports both upflow and downflow system configurations
• Ships at 41.3 pounds, keeping single-technician handling manageable during install

Compatibility

Designed as an OEM-style cased vertical evaporator coil for R-410A residential and light-commercial split-system and heat pump applications requiring a 5-ton, 24-inch nominal coil assembly.

Installation Notes

Installation must be performed by a licensed HVAC technician following local mechanical codes and EPA Section 608 refrigerant handling regulations. Disconnect and lock out all electrical power and recover system refrigerant before opening the refrigerant circuit. Ensure the condensate drain is properly trapped and pitched per the system manufacturer instructions and applicable plumbing codes before returning the system to service. Do not braze or pressure-test with refrigerant — use dry nitrogen for leak testing.

Technical Specifications

• Refrigerant: R-410A
• Nominal Cooling Capacity: 5 tons (60000 BTU/h)
• Cabinet Configuration: Cased Vertical V-Coil
• Nominal Cabinet Width: 24 inches
• Dimensions (L x W): 24.5 inches x 26.3125 inches
• Weight: 41.3 pounds

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EVDWX60M24A
