Carrier EVC003 Cable Assembly

Product Description

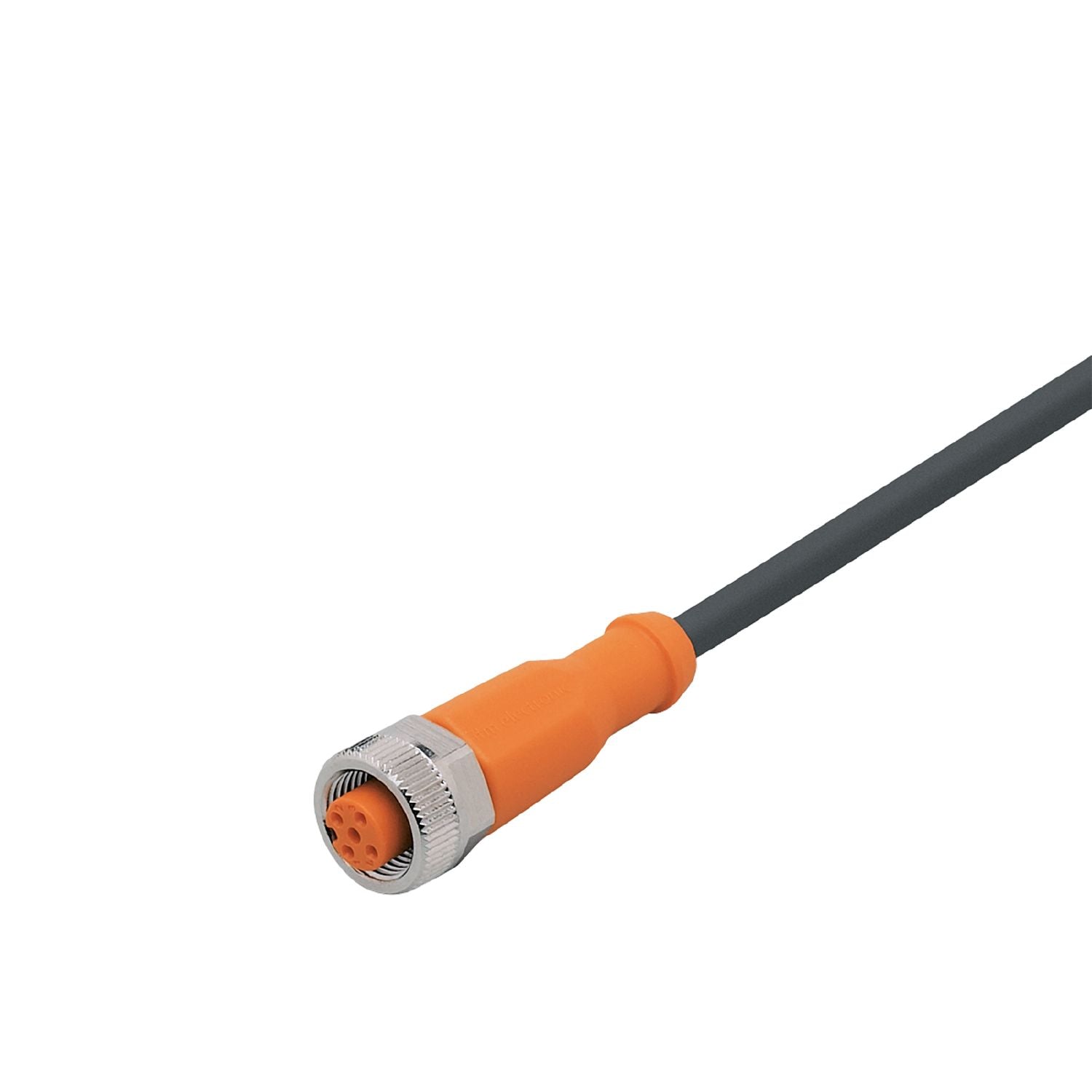

The Carrier EVC003 cable assembly is designed for use in various Carrier chiller systems, including screw and centrifugal models. This replacement part offers resistance to oils and coolants, ensuring reliable sealing in demanding environments. The assembly features a robust locking mechanism that withstands vibration and shocks, making it suitable for industrial use.

• Cable length: 10 meters
• Operating voltage of less than 250 AC / less than 300 DC
• Protection rating: IP 65, 67, 68, and 69K

Product Highlights

This cable assembly is built to handle challenging conditions while ensuring optimal performance in industrial applications.

Product Information

Standard Information

• Application: Industrial applications; Oils and coolants
• Free from silicone: Yes

Technical Specifications

• Operating Voltage: Less than 250 AC / less than 300 DC
• Protection Class: II
• Max. Current Load Total: 4
• Ambient Temperature: -25 to 90
• Storage Temperature: -25 to 55
• Protection Rating: IP 65, 67, 68, 69K
• Weight: 294.7 grams
• Dimensions: 15.5 x 15.5 x 45 mm
• Molded-Body Material: TPU (urethane)
• Material Nut: Brass, nickel-plated
• Sealing Material: FKM
• Connection: 1 x M12 connector, straight
• Tightening Torque: 0.6 to 1.5 Nm
