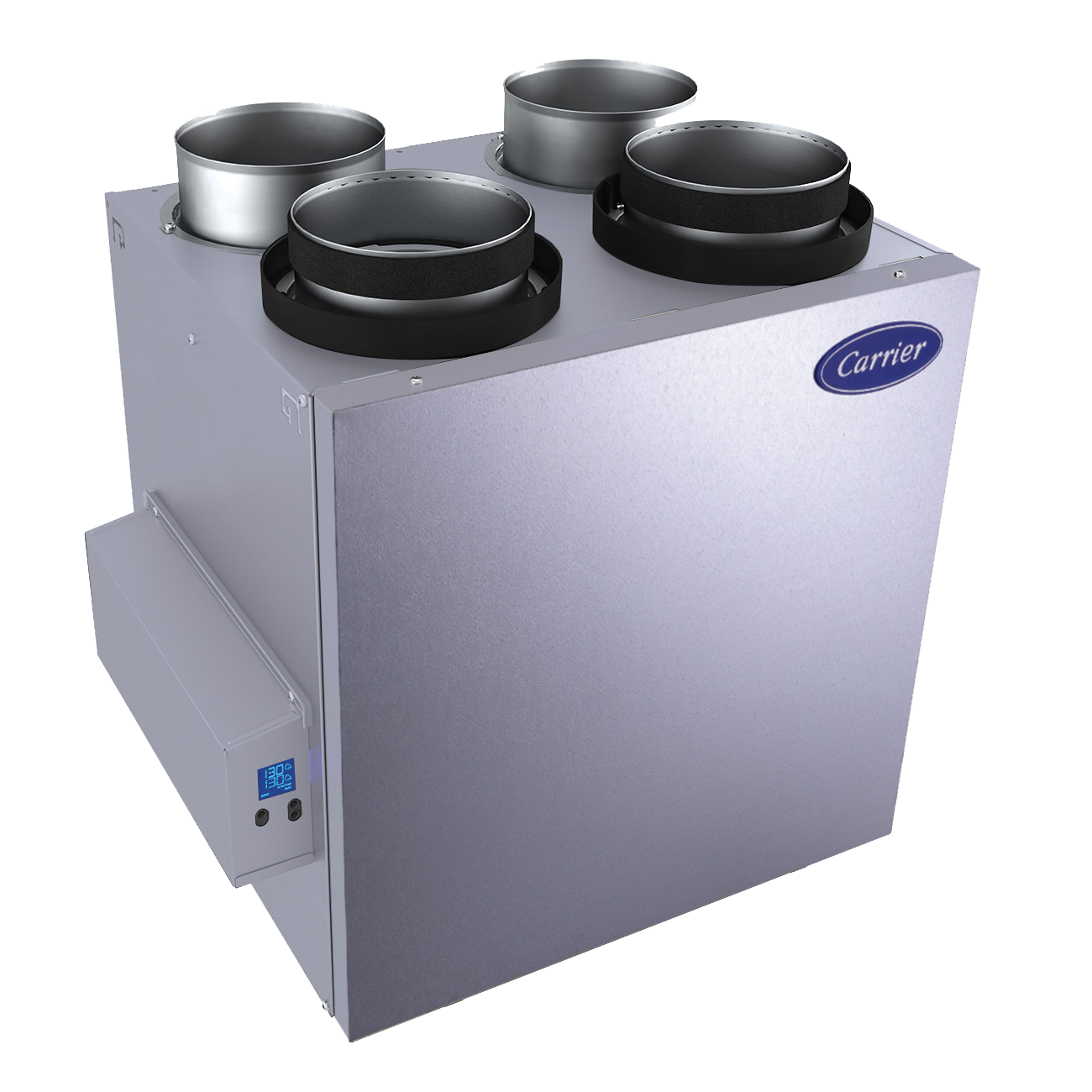

Carrier ERVXXSVA1130 Energy Recovery Ventilator 130 Cfm

Product Description

The CARRIER ERVXXSVA1130 is a vertical-port energy recovery ventilator (ERV) rated at 130 CFM with a 65% sensible recovery effectiveness (SRE). It transfers both heat and moisture between outgoing stale air and incoming fresh air, reducing the load on the primary HVAC system while maintaining healthy indoor air quality. The unit achieves 67% SRE at 0 degrees C, making it effective in cold-climate applications. At 37 pounds and designed for vertical port connection, it is sized for residential and light-commercial forced-air systems. Installation is performed by licensed HVAC technicians.

The ERVXXSVA1130 is intended for residential and light-commercial applications where continuous or demand-controlled fresh-air ventilation is required. It integrates with ducted forced-air systems using vertical supply and exhaust port connections. The unit is compatible with Carrier Performance Series HVAC systems and is suited for new construction and retrofit installations where ASHRAE 62.2 ventilation compliance is needed. A MERV 8 filter upgrade option is available for improved particulate filtration on the incoming airstream.

Key Features

• 130 CFM rated airflow with 65% SRE for effective heat and moisture recovery
• 67% SRE performance at 0 degrees C for reliable cold-climate operation
• Vertical port configuration for flexible duct connection in tight mechanical spaces
• Coroplast core material for lightweight durability and moisture resistance
• MERV 8 filter upgrade compatibility for enhanced incoming air filtration
• ETL listed for safety compliance

Compatibility

The ERVXXSVA1130 belongs to the Carrier ERVXXSVA product family and is designed for integration with Carrier Performance Series ducted HVAC systems requiring vertical-port energy recovery ventilation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and ASHRAE 62.2 ventilation standards. Power down the air handler and any associated controls before making electrical or duct connections. Vertical port orientation must be maintained as designed — do not reorient the unit to horizontal duct connections without verifying manufacturer guidance. Ensure condensate drainage provisions are in place where required by local code.

Technical Specifications

• Rated Airflow: 130 CFM
• Sensible Recovery Effectiveness (SRE): 65%
• SRE at 0 degrees C: 67%
• Port Orientation: Vertical
• Filter Upgrade Rating: MERV 8
• Operating Frequency: 60 Hz
• Unit Weight: 37 pounds
• Core Material: Coroplast
• Color: Taupe Metallic
• ETL Listed: Yes

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ERVXXSVA1130
