Carrier ERVCRNVA1090 Cor NVA Energy Recovery Ventilator 90 CFM Narrow Vertical Replacement ERVXXNVA1090

Product Description

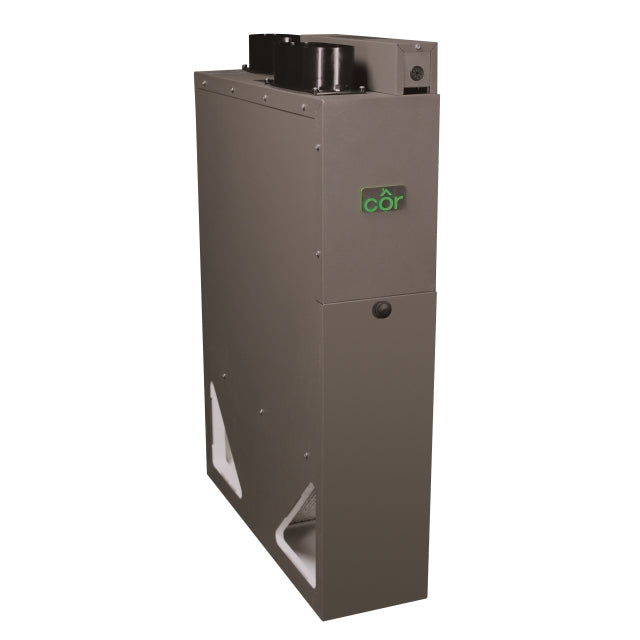

The CARRIER ERVCRNVA1090 Cor NVA Energy Recovery Ventilator exchanges indoor stale air with outside fresh air. Equipped with an energy recovery core, it transfers both sensible and latent heat between incoming and exhaust air streams without mixing. Designed for tight installation spaces, this 115V, 90 CFM unit requires no wall control and wires directly to furnace control EAC terminals for continuous operation when the furnace blower runs. It features a vertical airflow design.

• High pressure blowers ensure efficient air movement.
• Onboard control allows for continuous high/low ventilator operation.
• Cross-flow, counterflow heat exchangers facilitate energy transfer.

Product Highlights

Enthalpic heat exchanger core with no-tools maintenance and interlock with furnace blower for constant ventilation.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ERVCRNVA1090

Technical Specifications

• Hertz: 60
• Phase: 1
• Airflow: Vertical
• Input Voltage: 115V
• Product Type: Ventilator
• Air Flow Capacity (CFM): 90
• Watts: 140
• UL Listed: False
• UL Recognized: False
