CARRIER EQT3-7 Equipment Touch 7 inch Display

Product Description

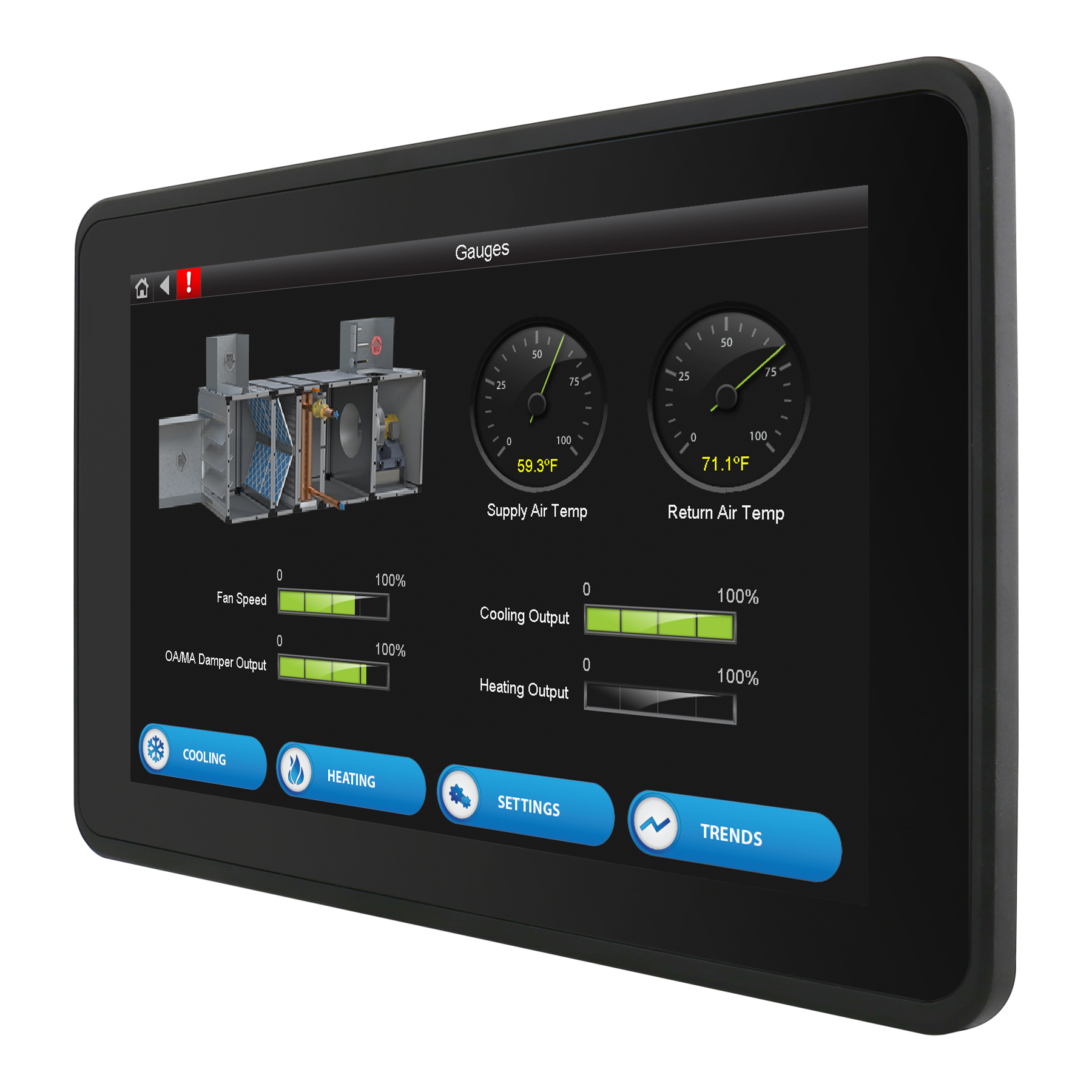

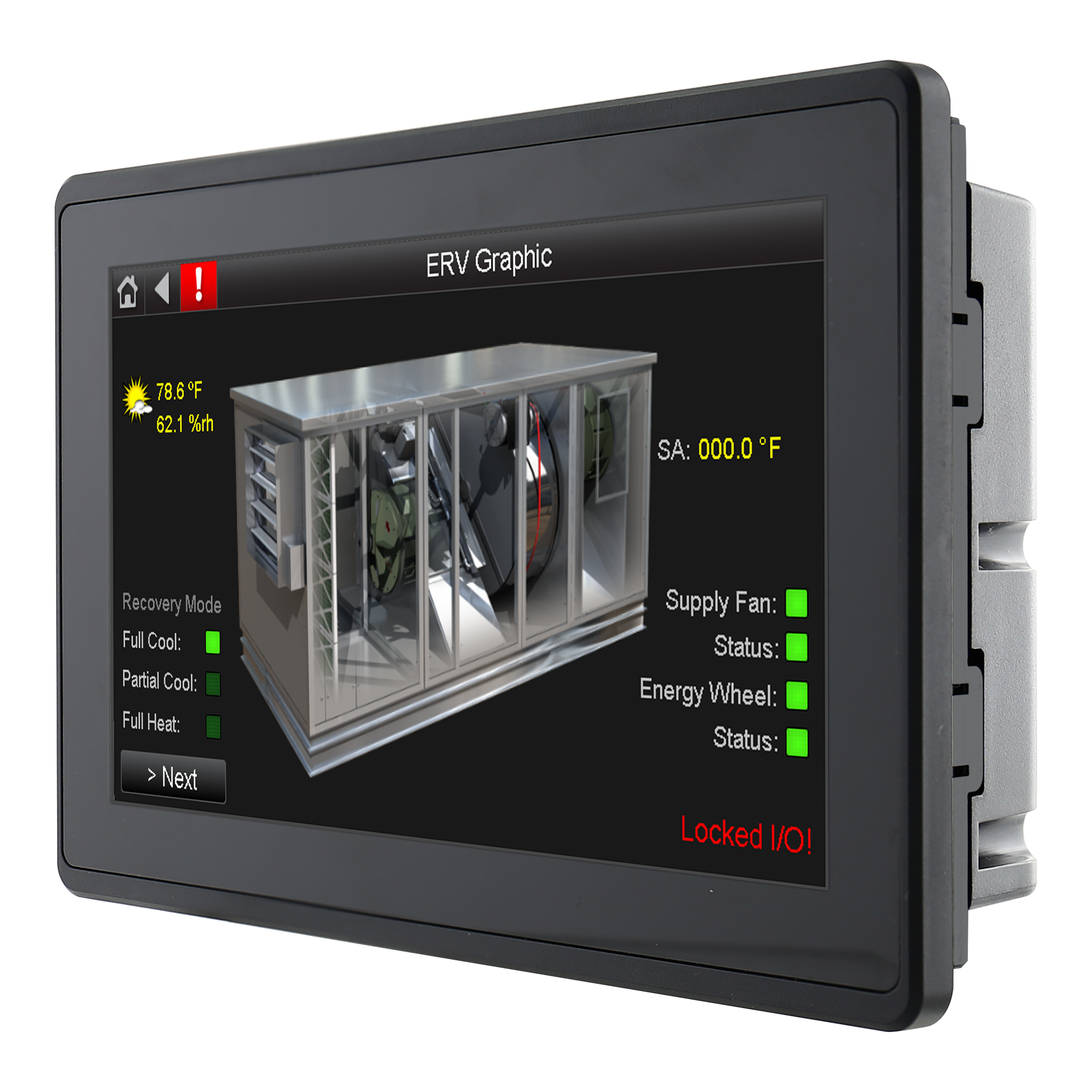

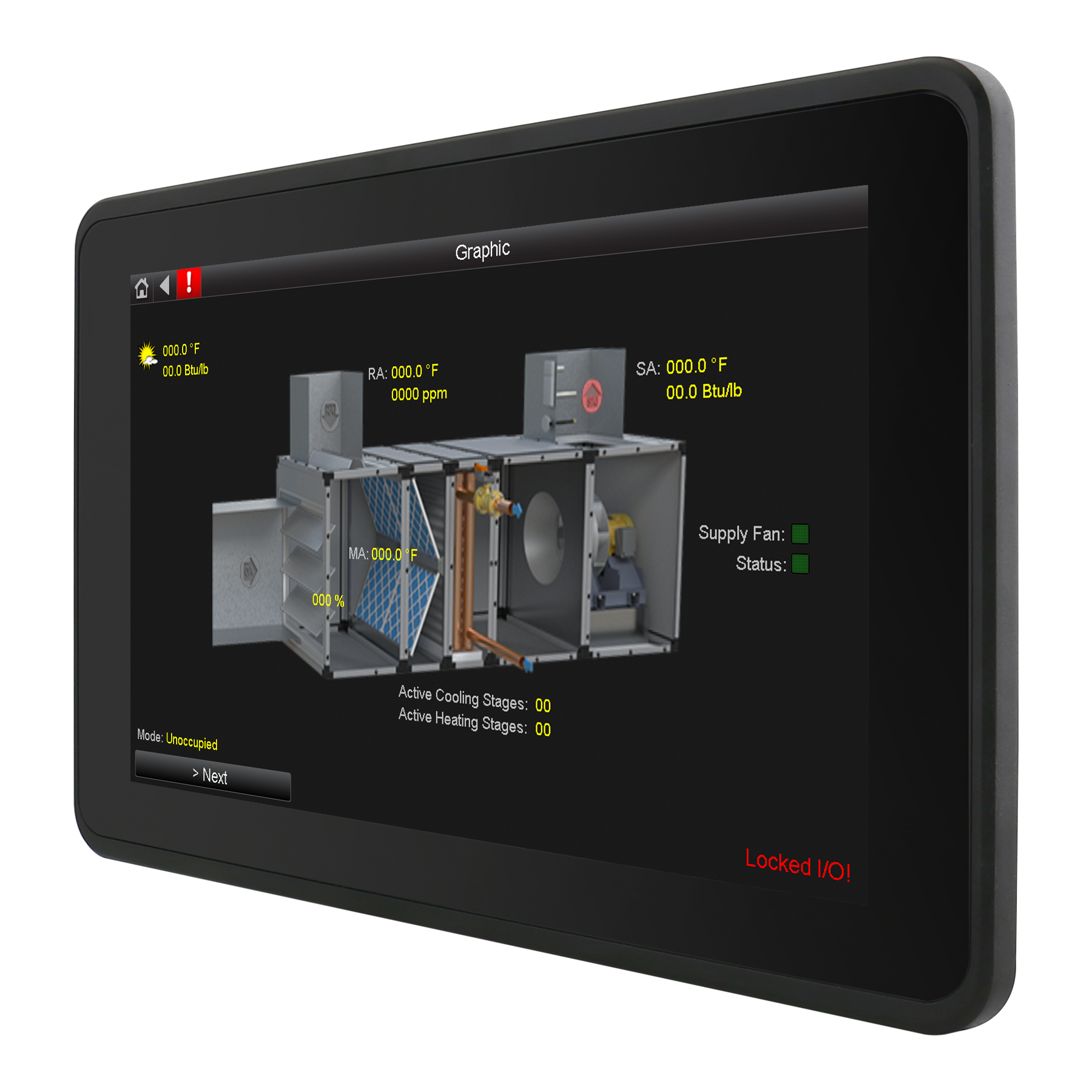

The CARRIER EQT3-7 is a seven-inch Equipment Touch display. It is an essential part of the i-Vu building automation system. This display can be mounted on panels or walls for easy access. It includes a color pixel projected capacitive multi-touchscreen that allows users to interact with HVAC systems smoothly. The EQT3-7 connects to a single i-Vu controller, enabling control over HVAC equipment and monitoring its performance. It is compatible with the Rnet sensor network and service ports found on TruVu controllers, making it a versatile choice for commercial applications such as mechanical rooms and boardrooms.

• Seven inch TFT display with a resolution of 1024 x 600 pixels.
• Includes various connectivity options such as EIA-485, USB, Micro USB OTG, and LAN.
• Front is IP65 rated and rear is IP20 rated for durability.

Product Highlights

Reliable touch interface for effective HVAC management within buildings.

Product Information

Standard Information

• Type: Touch Display
• Color: Black

Technical Specifications

• Display Type: Seven inch TFT
• Resolution: 1024 x 600 pixels (170 ppi)
• Brightness: 320 cd/m (typical)
• Contrast Ratio: 1000:1 (typical)
• Viewing Angle: -75 to 70 degrees (horizontal); -75 to 75 degrees (vertical)
• Max Colors: 16.7M (8-bit)
• Touch Technology: Projected Capacitive Multi-Touch (P-CAP)
• Operating System: Android 11.0
• Processor: MT8365 Quad-core Cortex-A53 up to 2.0 GHz
• System Memory: 3 GB LPDDR4 RAM
• Storage: 32 GB onboard eMMC Flash storage
• Input Voltage: 24 VDC (+/- 15%)
• Power Consumption: 375 mA
• Input Frequency: 50-60 Hz
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Storage Temperature: -13°F to 158°F (-25°C to 70°C)
• Humidity: 10-90% RH, non-condensing
• Certifications: CE (Class B), FCC (Class B)
