Carrier EHK2-05B electric heater kit 5 kw 240v with circuit breaker

Product Description

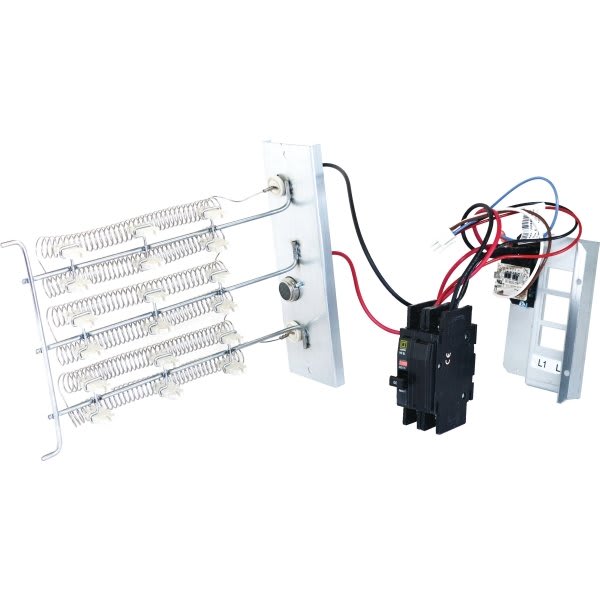

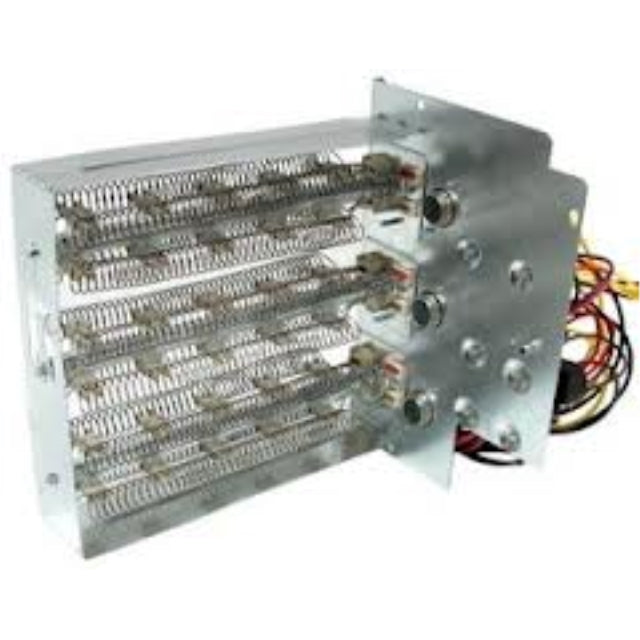

The CARRIER EHK2-05B is a 5 kW electric heat kit designed for FA4 series air handlers. It provides 5 kW heating capacity and operates at 208/240 VAC, delivering 12,300 BTU. This kit features sequencer control, built-in overcurrent protection with a circuit breaker, and high-temperature limit controls. It includes a wiring harness for easy installation and rust-resistant nickel chromium elements.

• 5 Kilowatt heating capacity
• 240V operation
• Includes circuit breaker

Product Highlights

This electric heat kit offers 5 kW heating, 240V operation, and built-in circuit breaker protection for ductless residential applications.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: EHK2-05B
• Country of Origin: Mexico

Technical Specifications

• Brand: Carrier
• Application: Ductless Residential
• Protection Type: Circuit Breaker
• Power Output: 5 kW
• Input Voltage: 240V
• Phase: 1
• UL Listed: Yes
• BTU Output: 12,300
• Amperage: 23.6/27.1 Amps
• Max Fuse: 30
