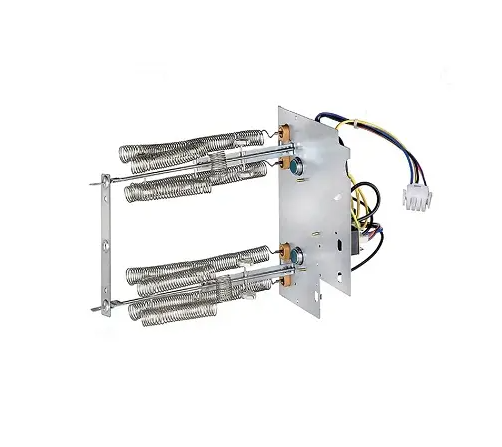

Carrier ehc10bkb 10 Kw Electric Heat Kit 240V Upflow

Product Description

The CARRIER ehc10bkb is a 10 kW electric heat kit designed for installation in FJM series air handlers. It operates on 240 volts and is rated at 60 amps, with an integrated circuit breaker included in the assembly. The kit adds electric resistance heating capacity to a compatible air handler, converting or supplementing the system for heating applications. Installation is performed by licensed HVAC technicians working on residential split or multi-zone systems. The built-in circuit breaker simplifies compliance with electrical protection requirements and reduces the number of separate components needed during a retrofit or new installation.

This heat kit is suited for upflow air handler configurations and is compatible with 2-ton through 5-ton units in the FHMA5X air handler family. It is commonly installed in residential applications where electric resistance heat is the primary or auxiliary heat source, such as in heat pump systems requiring supplemental strip heat or in all-electric HVAC setups. Technicians installing this kit in heat pump applications should verify that the thermostat and air handler control board support auxiliary heat staging.

Key Features

• 10 kW electric resistance heating output
• 240-volt, 60-amp rated operation
• Integrated circuit breaker included in the kit assembly
• Designed for upflow air handler orientation
• Compatible with 2-ton through 5-ton unit sizes

Compatibility

Designed for use with FHMA5X series air handlers in 2-ton through 5-ton configurations, as specified in the product documentation.

Installation Notes

Installation must be performed by a licensed HVAC technician. Disconnect all electrical power to the air handler before beginning installation. This kit involves high-voltage wiring and must comply with applicable National Electrical Code (NEC) requirements, including proper breaker sizing and wire gauge for the circuit. Do not energize the unit until all connections are secured and the access panel is reinstalled.
