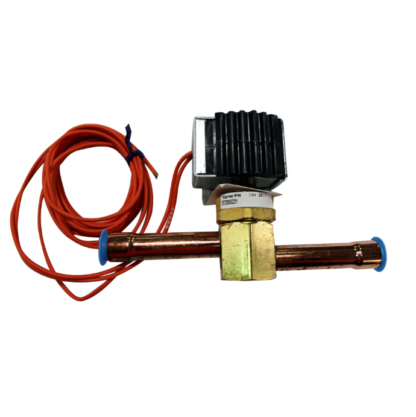

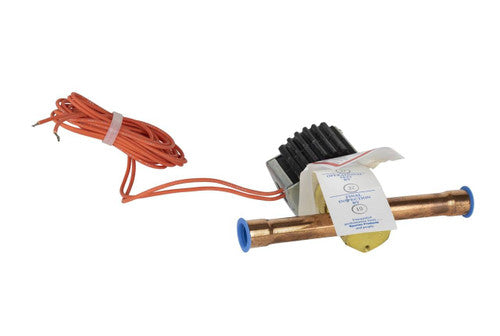

Carrier EF23BS221 Solenoid Valve with Coil

Product Description

The Carrier EF23BS221 solenoid valve with coil is essential for various applications. This valve features a five eighths inch ODF solder connection for inlet and outlet, and a five sixteenths inch port size. It operates under a maximum pressure of three hundred PSI and can withstand a maximum rated pressure of five hundred PSI. The coil works at twenty-four VAC and sixty Hertz with a power consumption of fifteen Watts.

• Includes a solenoid valve with coil.
• Features a five eighths inch ODF solder connection.
• Maximum operating pressure of three hundred PSI.

Product Highlights

This solenoid valve is designed to ensure reliable performance in various HVAC applications, making it ideal for technicians and professionals.

Product Information

Standard Information

• Brand: Carrier
• MPN: EF23BS221

Technical Specifications

• Coil Model: MKC-2
• Input Voltage: 24 VAC
• Frequency: 50/60 Hz
• Power Consumption: 15 Watts
• Temperature Rating: Class F
• Valve Model: E10S250
• Series: E10
• Maximum Rated Pressure: 500 PSI
• Maximum Operating Pressure: 300 PSI
• Inlet/Outlet Size/Connection: 5/8 ODF Solder
• Port Size: 5/16
• Mounting Type: Horizontally, on Side or In Vertical Line
