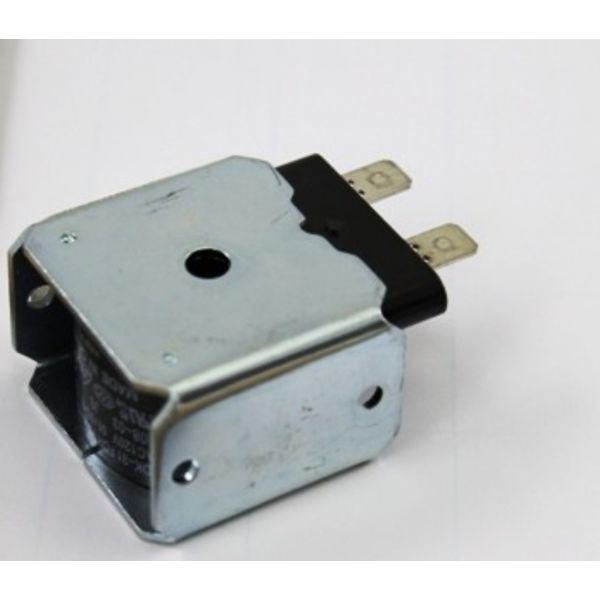

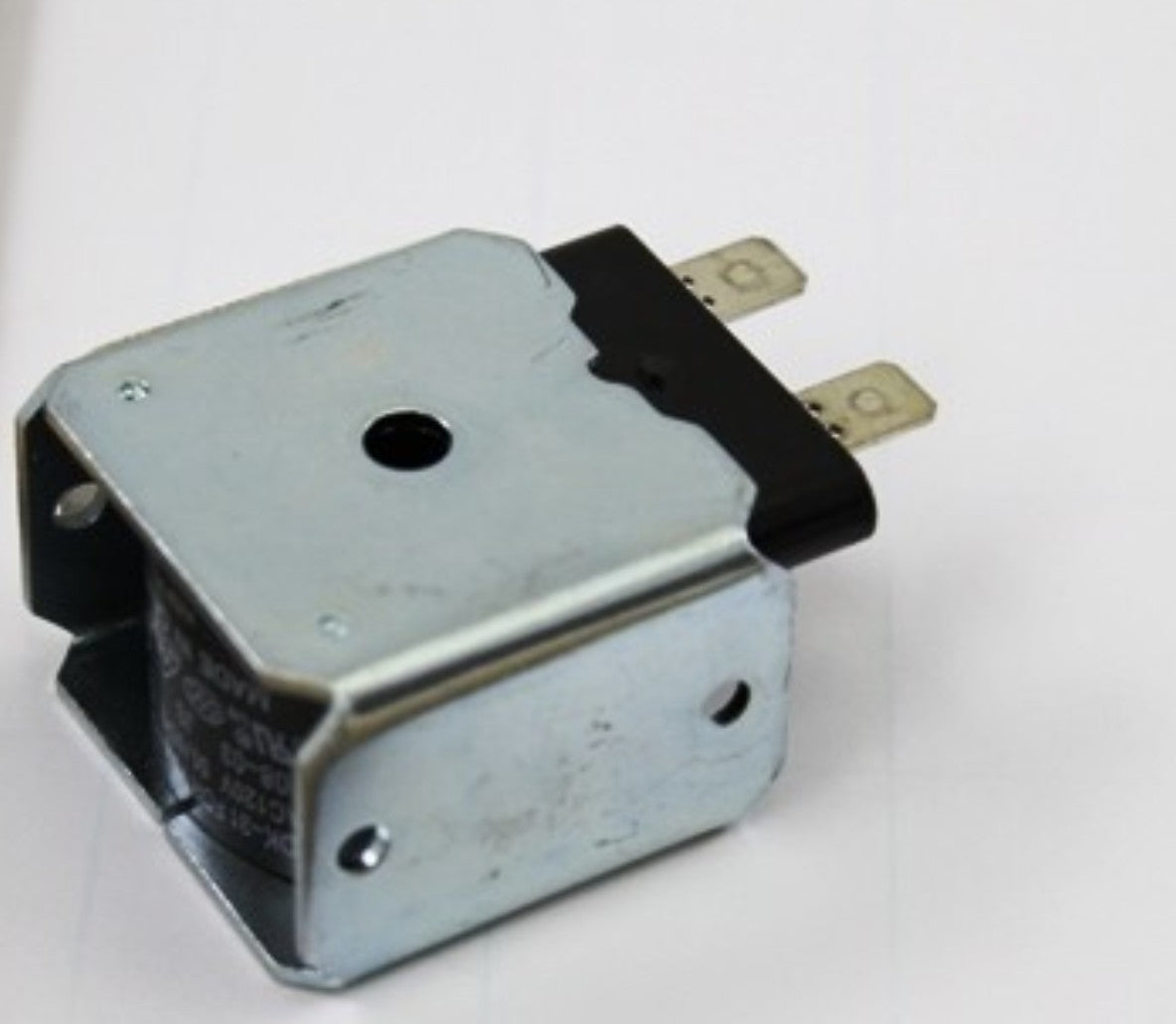

Carrier EF19ZG226 Solenoid Coil 120 Volts

Product Description

The Carrier EF19ZG226 is a solenoid coil used in heat pumps and air conditioning systems. This electromagnetic component operates the reversing valve for managing refrigerant flow. In heating mode, the coil energizes, allowing the system to extract heat from outside and circulate warm air indoors. When cooling is needed, the coil de-energizes and reverses the refrigerant flow, enabling standard air conditioning functionality. This solenoid coil uses electric current to produce a magnetic field.

• Functions as a reversing valve coil.
• Controls refrigerant flow in heat pumps and AC systems.
• Utilizes electric current to generate a magnetic field.

Product Highlights

This solenoid coil is essential for proper operation of HVAC systems, ensuring efficient heat exchange and temperature control.

Product Information

Standard Information

• Manufacturer Part Number: EF19ZG226
• Country of Origin: CN

Technical Specifications

• Valve Type: Solenoid
• Voltage: 120
• Hertz: 50/60
• Watts: 5/4
• Length: 1.2 inches
• Width: 1.1 inches
• Height: 0.6 inches
• Weight: 0.25 lbs
