Carrier DAMPSLS12X12 Slip-In Side Mount Zone Damper 12 inches x 12 inches

Product Description

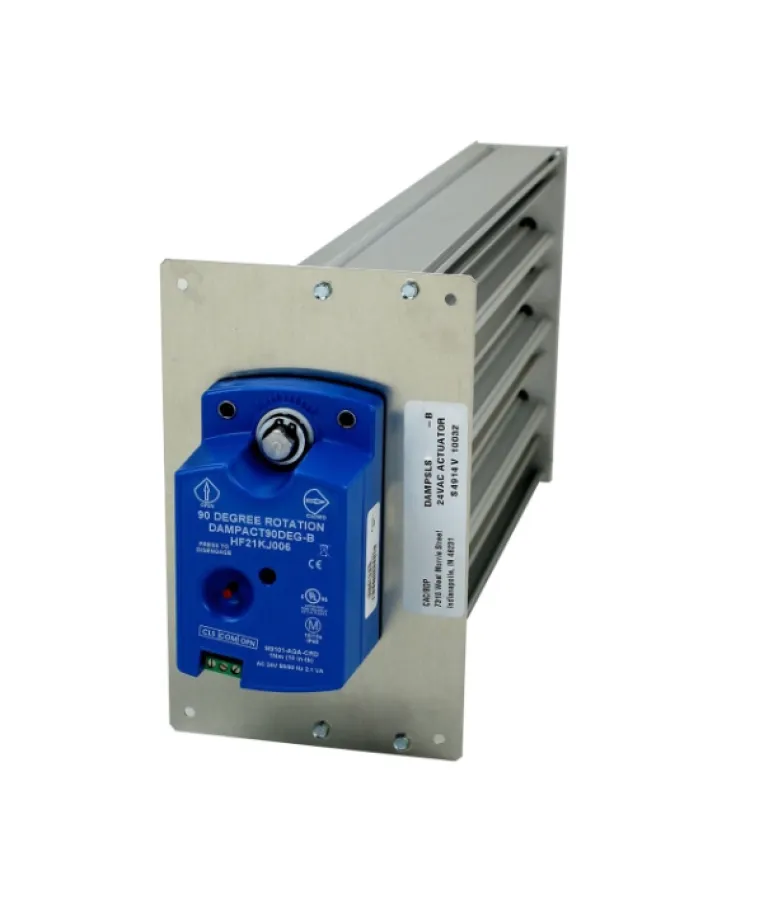

The CARRIER DAMPSLS12X12 Slip-In Side Mount Zone Damper is a 12" x 12" rectangular damper designed for HVAC zone control. Operating on 24 VAC, 60 Hz, single-phase power, this damper features a compact actuator and a slip-in mounting style, ideal for retrofit applications. It offers a nominal CFM of 1200, ensuring efficient air distribution and precise environmental regulation within a zone.

• Self-aligning shaft and actuator hub requires no adjustment.
• Spring-loaded disengagement for momentary release of main gear and damper blade.
• Recessed terminals in plastic eliminate the need for cover removal during wiring.

Product Highlights

Compact design with self-aligning actuator for easy installation and precise zone control in HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLS12X12

Technical Specifications

• Input Voltage: 24 VAC
• Frequency: 60 Hz
• Phase: Single
• Shape: Square
• Nominal CFM: 1200
• Mounting Type: Slip-In Side
• Damper Type: Zone
• Power Method: Hardwired
• Damper Size: 12" x 12"
