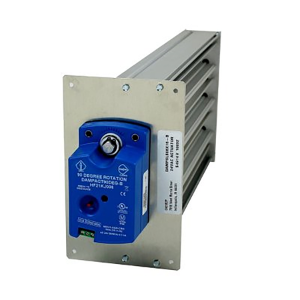

Carrier DAMPSLS10X24 Slip-in Side Mount Damper 24V

Product Description

The CARRIER DAMPSLS10X24 is a slip-in side mount damper designed for HVAC zoning applications. It installs into ductwork to control airflow to individual zones, allowing the system to direct conditioned air where it is needed. Rated at 24 volts AC and sized at 10 inches high by 24 inches wide, this damper is suited for residential and light commercial forced-air systems. With a 15-second travel time from open to close, it provides reliable zone control as part of a multi-zone HVAC setup. Licensed HVAC technicians perform this type of installation as part of a complete zoning system.

This damper is intended for use in forced-air duct systems where zone control is required. The slip-in design simplifies installation by fitting directly into a prepared duct opening without extensive modification. It is typically used in residential multi-zone systems paired with a zone control board and a compatible thermostat setup. The 10-by-24-inch opening size accommodates standard rectangular duct configurations commonly found in residential and light commercial installations.

Key Features

• Slip-in side mount design for simplified duct installation
• 24-volt AC operation compatible with standard low-voltage HVAC controls
• 15-second travel time for smooth, controlled airflow transitions
• 10 inches high by 24 inches wide to fit standard rectangular duct openings
• Carrier and Bryant brand specification for OEM-level fit and function

Compatibility

Specified for Carrier and Bryant forced-air HVAC zoning systems requiring a 10-by-24-inch slip-in side mount damper operating at 24 volts AC.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler and de-energize the low-voltage control circuit before beginning work. The damper slides into the prepared duct opening from the side; verify the opening dimensions match the damper size before cutting ductwork. Follow local mechanical codes and the zone control manufacturer wiring diagram when connecting the 24-volt control leads.

Technical Specifications

• Height: 10 inches
• Width: 24 inches
• Voltage Rating: 24 volts AC
• Travel Time: 15 seconds
• Mount Type: Slip-In Side Mount

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLS10X24
