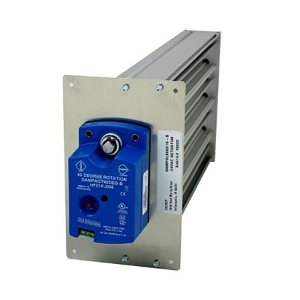

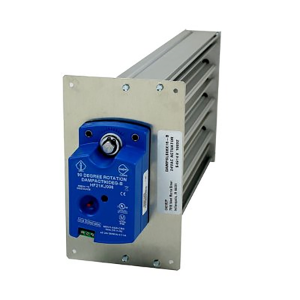

Carrier DAMPSLS10X20 Slip-in Side Mount Damper 10x20 24V

Product Description

The CARRIER DAMPSLS10X20 is a slip-in side mount damper designed for zoned HVAC air distribution systems. Measuring 10 inches high by 20 inches wide, this damper installs directly into ductwork to control airflow to individual zones within a forced-air system. It operates on 24 volts AC and features a 15-second travel time, giving the actuator a consistent, predictable open-to-close cycle. Licensed HVAC technicians install this component as part of a complete zone control setup, typically alongside a zone control board and thermostat wiring. The slip-in design simplifies field installation by eliminating the need for complex duct modifications.

This damper is suited for residential and light commercial forced-air HVAC systems where zone control is required. The side mount configuration fits into standard rectangular duct sections at the 10-inch by 20-inch opening size. It is typically installed in supply duct branches where individual zone dampers are needed to balance or shut off airflow on demand from a zone controller. Systems using low-voltage zone control panels are the primary application for this part.

Key Features

• Slip-in design allows direct duct insertion without major duct modification
• Side mount configuration for straightforward branch duct installation
• 24 VAC operation compatible with standard low-voltage zone control systems
• 15-second travel time provides consistent actuator response
• 10 inches x 20 inches nominal size fits standard rectangular duct openings

Compatibility

Designed as an OEM-style replacement damper for Carrier and Bryant residential and light commercial forced-air zoning systems requiring a 10-inch by 20-inch slip-in side mount damper.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage zoning systems. Power down the zone control panel and disconnect all low-voltage wiring before removing or installing any damper. Verify duct opening dimensions match the nominal damper size before insertion. Consult local mechanical codes and the zone control system manufacturer wiring diagram for proper actuator connection.

Technical Specifications

• Height: 10 inches
• Width: 20 inches
• Voltage Rating: 24 VAC
• Actuator Travel Time: 15 seconds
• Mount Type: Side Mount
• Installation Type: Slip-In

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLS10X20
