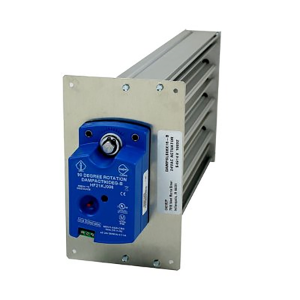

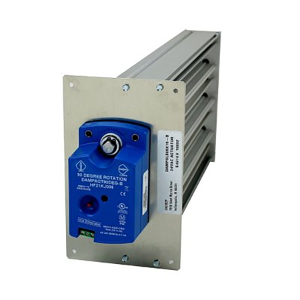

Carrier DAMPSLS08X12 Slip-in Side Mount Damper 8x12

Product Description

The CARRIER DAMPSLS08X12 is a slip-in side mount damper designed for zone control and airflow regulation in ducted HVAC systems. Measuring 8 inches high by 12 inches wide, this damper installs directly into the duct opening from the side, eliminating the need to cut or reconfigure ductwork around the unit. It operates on 24 volts AC, making it compatible with standard low-voltage zone control systems and thermostats. Licensed HVAC technicians install this type of component during zoning system builds or retrofits in residential and light commercial forced-air applications.

This damper is suited for rectangular duct installations where a slip-in side mount configuration is required. Its 8-inch by 12-inch face size fits standard duct openings of that dimension, and the 24 VAC rating aligns with conventional zone control boards and damper actuator systems. It is appropriate for new construction and retrofit zoning projects in residential forced-air heating and cooling systems.

Key Features

• Slip-in side mount design allows installation without major ductwork modification
• 24 VAC operating voltage integrates with standard low-voltage zone control systems
• 8 x 12 inch face dimensions fit standard rectangular duct openings
• Compatible with Carrier and Bryant zoning system applications

Compatibility

Designed for use with Carrier and Bryant ducted HVAC zoning systems requiring a slip-in side mount damper in an 8 x 12 inch duct opening.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler and zone control board before installing or wiring the damper. Verify the duct opening dimensions match the damper face size before sliding the unit into position. Low-voltage wiring connections to the zone control board should comply with NEC requirements and the zone control manufacturer's wiring diagram.

Technical Specifications

• Height: 8 inches
• Width: 12 inches
• Voltage Rating: 24 VAC
• Mount Type: Slip-In Side Mount

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLS08X12
