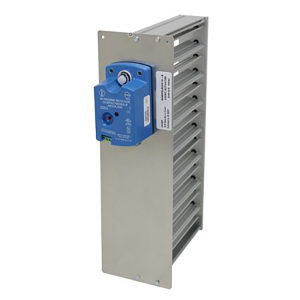

Carrier DAMPSLB16X16 Slip-in Bottom Mount Damper

Product Description

The CARRIER DAMPSLB16X16 is a slip-in bottom mount damper sized at 16 inches high by 16 inches wide. It is designed to regulate airflow within HVAC duct systems by providing a controlled shutoff or flow restriction at the duct opening. This damper installs into the bottom of a compatible air handler or duct cabinet using a slip-in mounting method, which simplifies field installation without the need for complex fastening hardware. HVAC technicians and sheet metal installers are the typical trades handling this type of component during new construction or system retrofit work.

This damper is suited for residential and light commercial HVAC applications where a bottom-mount damper position is specified. The 16 by 16 inch sizing fits standard duct openings of the same nominal dimension. It is appropriate for use in forced-air systems where airflow zoning, fresh air intake control, or bypass damper functions are required. The slip-in design allows for straightforward integration into compatible Carrier and Bryant air handler cabinets and duct assemblies.

Key Features

• Slip-in bottom mount design for simplified installation without complex hardware
• 16 inches high by 16 inches wide nominal size fits standard duct openings
• Compatible with Carrier and Bryant HVAC systems per manufacturer specification
• Bottom mount orientation suits specific cabinet and duct configurations where top or side mounting is not applicable

Compatibility

Designed for use with Carrier and Bryant HVAC systems. Verify duct opening dimensions and cabinet mounting orientation before installation to confirm fit.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal installer. Always shut down the air handler and disconnect power at the disconnect switch or circuit breaker before beginning work. Confirm the duct opening dimensions match the damper nominal size prior to inserting the unit. Work should comply with applicable local mechanical codes and ASHRAE guidelines for duct system construction.

Technical Specifications

• Height: 16 inches
• Width: 16 inches
• Mount Type: Slip-In Bottom Mount

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLB16X16
