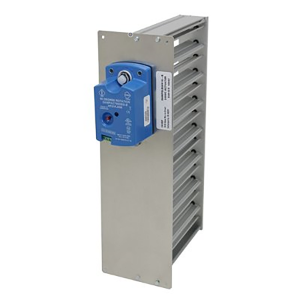

Carrier DAMPSLB14X14 Slip-in Bottom Mount Damper 14x14

Product Description

The CARRIER DAMPSLB14X14 is a slip-in bottom mount damper designed for use in forced-air HVAC duct systems. Measuring 14 inches high by 14 inches wide, this damper installs into the bottom of a duct or air handler cabinet to control airflow through the system. It is a direct OEM-style component intended for installation by licensed HVAC technicians servicing residential or light commercial equipment under the Carrier and Bryant brand families.

This damper is suited for applications where bottom-mount duct access is required and a slip-in installation method is preferred. The slip-in design allows the damper to slide into an existing duct opening without extensive ductwork modification, making it a practical replacement option during system service or retrofit work on compatible Carrier and Bryant air handling equipment.

Key Features

• Slip-in installation design for straightforward duct insertion without major duct modification
• Bottom mount configuration suited for under-unit or bottom-access duct applications
• 14 x 14 inch frame size fits standard square duct openings of that dimension
• OEM part sourced from Carrier, ensuring fit and function consistent with original equipment

Compatibility

Designed as an OEM-style replacement damper for Carrier and Bryant forced-air HVAC systems requiring a 14 x 14 inch slip-in bottom mount damper. Verify unit model and duct opening dimensions before ordering.

Installation Notes

Installation should be performed by a qualified HVAC technician. Shut down and de-energize the air handler or furnace at the disconnect and thermostat before beginning work. Confirm the duct opening dimensions match the damper size prior to insertion. Follow applicable local mechanical codes and manufacturer service instructions when securing the damper in place.

Technical Specifications

• Height: 14 inches
• Width: 14 inches
• Mount Type: Bottom Mount
• Installation Type: Slip-In

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLB14X14
