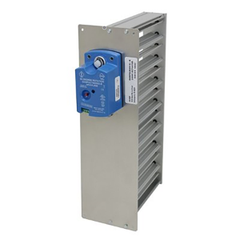

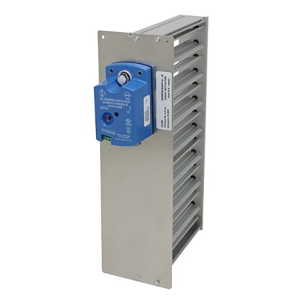

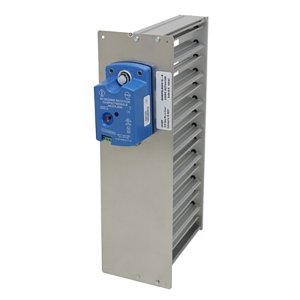

Carrier DAMPSLB12X14 Slip-in Bottom Mount Damper 12x14

Product Description

The CARRIER DAMPSLB12X14 is a slip-in bottom mount damper rated at 24 volts AC, designed for use in residential and light commercial HVAC zoning systems. Measuring 12 inches high by 14 inches wide, it installs directly into ductwork to regulate airflow to individual zones. The 15-second travel timing provides controlled, gradual blade movement that reduces pressure spikes in the duct system. Licensed HVAC technicians install this damper as part of a zone control setup, typically alongside a zone control board and zone thermostats.

This damper is suited for residential forced-air systems where multiple zones require independent temperature control. The slip-in bottom mount design simplifies installation in existing duct runs without major duct modification. It operates on a 24-volt control signal, making it compatible with standard low-voltage zone control wiring schemes. Typical applications include new construction zoning projects and retrofits in multi-story or multi-wing residential buildings.

Key Features

• Slip-in bottom mount design allows installation into existing ductwork with minimal modification
• 24 VAC operation integrates with standard low-voltage zone control systems
• 15-second blade travel timing reduces abrupt pressure changes in the duct system
• 12-inch height by 14-inch width fits standard residential duct openings of this size
• Carrier/Bryant product line ensures consistent fit within compatible zoning equipment

Compatibility

Designed for use within Carrier and Bryant HVAC zoning systems requiring a 24 VAC slip-in bottom mount damper in a 12-inch by 14-inch duct opening.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut down the air handler and de-energize the 24-volt control circuit before beginning work. Slip the damper into the duct opening from the bottom mount position and secure per the duct manufacturer guidelines. Verify zone control board wiring connections match the low-voltage control terminals before restoring power.

Technical Specifications

• Type: Slip-In Bottom Mount
• Voltage Rating: 24 VAC
• Blade Travel Timing: 15 seconds
• Height: 12 inches
• Width: 14 inches

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLB12X14
