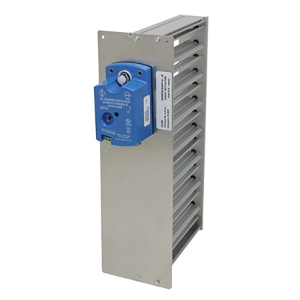

Carrier DAMPSLB08X22 Slip-in Bottom Mount Damper 8x22 in

Product Description

The CARRIER DAMPSLB08X22 is a slip-in bottom mount damper designed for zoned HVAC air distribution systems. Measuring 8 inches high by 22 inches wide, this damper installs into ductwork to regulate airflow to individual zones within a residential or light commercial forced-air system. It operates on 24 volts AC and travels to its open or closed position in 15 seconds. Licensed HVAC technicians install this component as part of a zone control system, typically pairing it with a zone control board and thermostat. The slip-in mounting style simplifies installation into existing duct openings without the need for custom fabrication.

This damper is suited for residential and light commercial forced-air zoning applications where individual room or zone control is required. It fits into bottom-mount duct configurations and is compatible with 24 VAC zone control systems. The 8-inch by 22-inch blade size accommodates standard rectangular duct openings of matching dimensions. It is commonly installed during new construction zoning setups or added during retrofit zoning projects on existing forced-air systems.

Key Features

• Slip-in mounting design fits standard rectangular duct openings without custom modification
• Bottom mount orientation for correct installation in compatible duct configurations
• 24 VAC operation integrates directly with standard zone control boards and low-voltage thermostats
• 15-second travel time provides consistent, controlled airflow modulation
• 8-inch by 22-inch blade size fits matching rectangular duct openings

Compatibility

Designed as an OEM-style replacement damper for Carrier and Bryant 24 VAC forced-air zoning systems requiring an 8-inch by 22-inch slip-in bottom mount damper.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler and de-energize the zone control board before beginning work. Verify the duct opening dimensions match the damper blade size before inserting the unit. Low-voltage wiring connections to the zone board must comply with applicable local mechanical and electrical codes.

Technical Specifications

• Height: 8 inches
• Width: 22 inches
• Voltage Rating: 24 VAC
• Travel Time: 15 seconds
• Mounting Type: Slip-In Bottom Mount

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: DAMPSLB08X22
