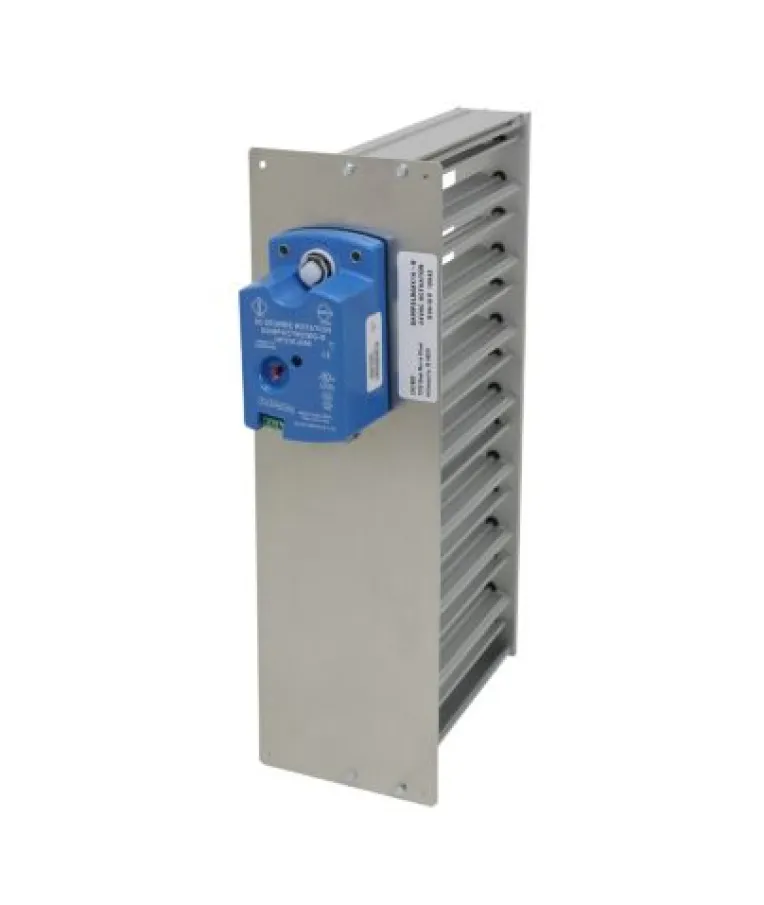

Carrier DAMPSLB08X12 Zone Damper 8 inches x 12 inches

Product Description

The Carrier DAMPSLB08X12 zone damper is designed to fit various ductwork shapes and sizes. These dampers utilize 24 VAC direct drive actuators for smooth and quiet operation. Features include a self-aligning shaft, spring-loaded disengagement for quick blade release, and recessed terminals for easy wiring. Compatible with all Carrier zoning systems.

• Self-aligning shaft and actuator hub requires no adjustment
• Spring-loaded disengagement for momentary release of main gear and damper blade
• Terminals recessed in plastic, no cover removal for wiring

Product Highlights

Zone damper with 24 VAC direct drive, self-aligning shaft, and spring-loaded disengagement.

Product Information

Standard Information

• Brand: Carrier
• Manufacturer Part Number: DAMPSLB08X12

Technical Specifications

• Voltage: 24 VAC
• Frequency: 60 Hz
• Phase: Single
• Shape: Rectangle
• Mounting: Bottom
• Damper Type: Zone
• Emergency Heat Switch: No
• Power Method: Hardwired
• Damper Size: 8" x 12"
• Number of Wires: 3
• Voltage Rating: 24 VAC
• Electrical Connections: 14 to 22 AWG Plated Screw Terminal
• Size: 8 in H x 12 in W
• Timing: 15 sec Travel
• Domestic/Import: Domestic
• Type: Slip-In
