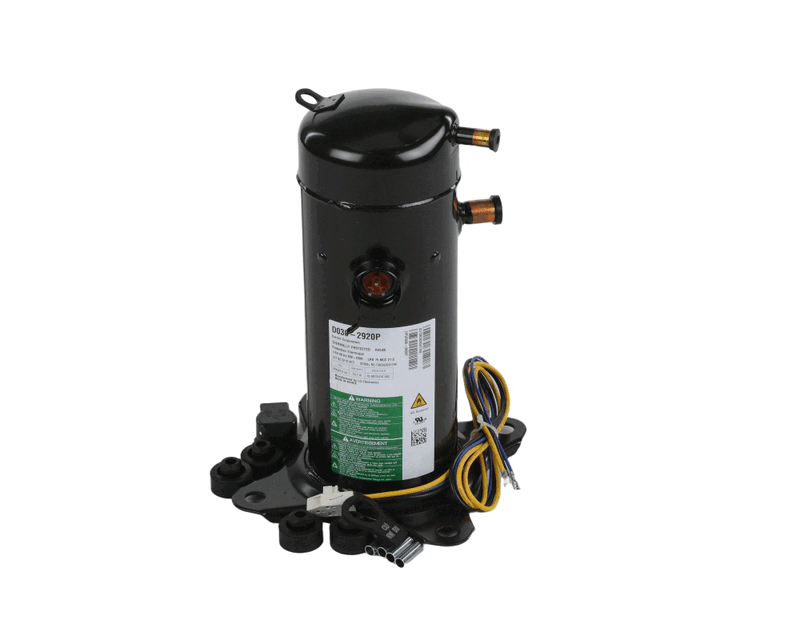

Carrier d030-2920p Hermetic Compressor R454B 208-230V

Product Description

The CARRIER d030-2920p is a hermetic compressor designed for residential and light commercial HVAC systems using R454B refrigerant. This OEM replacement compressor operates on 208-230 volts, 60Hz, single-phase power and is built to the same specifications as the original factory-installed unit. Hermetic compressors are fully sealed assemblies that integrate the motor and compression mechanism in a single welded housing, making them serviceable only by qualified refrigeration technicians. The d030-2920p is a direct OEM-grade replacement that maintains system efficiency and refrigerant compatibility with R454B, a lower-GWP alternative refrigerant increasingly specified in modern residential equipment.

This compressor is intended for use in split-system air conditioning and heat pump applications that operate on R454B refrigerant. It is suited for residential and light commercial installations where the original compressor has failed or requires replacement. Installation is performed by licensed HVAC technicians with EPA Section 608 certification, as R454B handling requires proper recovery and charging equipment rated for A2L refrigerants. Confirm system refrigerant type and electrical specifications before ordering to ensure proper fitment.

Key Features

• Hermetic sealed design integrates motor and compressor in a single welded housing
• Compatible with R454B refrigerant, a lower-GWP A2L refrigerant for modern HVAC systems
• Rated for 208-230 volt, 60Hz, single-phase electrical supply
• OEM replacement part maintaining factory performance specifications
• Compact footprint: 11 inches length by 11 inches width by 20 inches height

Compatibility

Designed as an OEM-style replacement compressor for CARRIER HVAC systems specifying the d030-2920p and utilizing R454B refrigerant on a 208-230 volt, single-phase circuit. Verify the original compressor part number against the unit nameplate before installation.

Installation Notes

Compressor replacement must be performed by an EPA Section 608 certified technician. Recover all refrigerant from the system before opening any refrigerant circuit, following applicable federal and local regulations for A2L refrigerant handling. De-energize and lock out the disconnect before beginning any electrical or refrigerant work. Do not reuse refrigerant oil from a failed compressor, and follow the manufacturer service documentation for nitrogen brazing procedures and system leak testing prior to recharging.

Technical Specifications

• Refrigerant: R454B
• Voltage: 208-230 volts
• Frequency: 60Hz
• Phase: 1-Phase
• Compressor Type: Hermetic
• Length: 11 inches
• Width: 11 inches
• Height: 20 inches

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: d030-2920p
