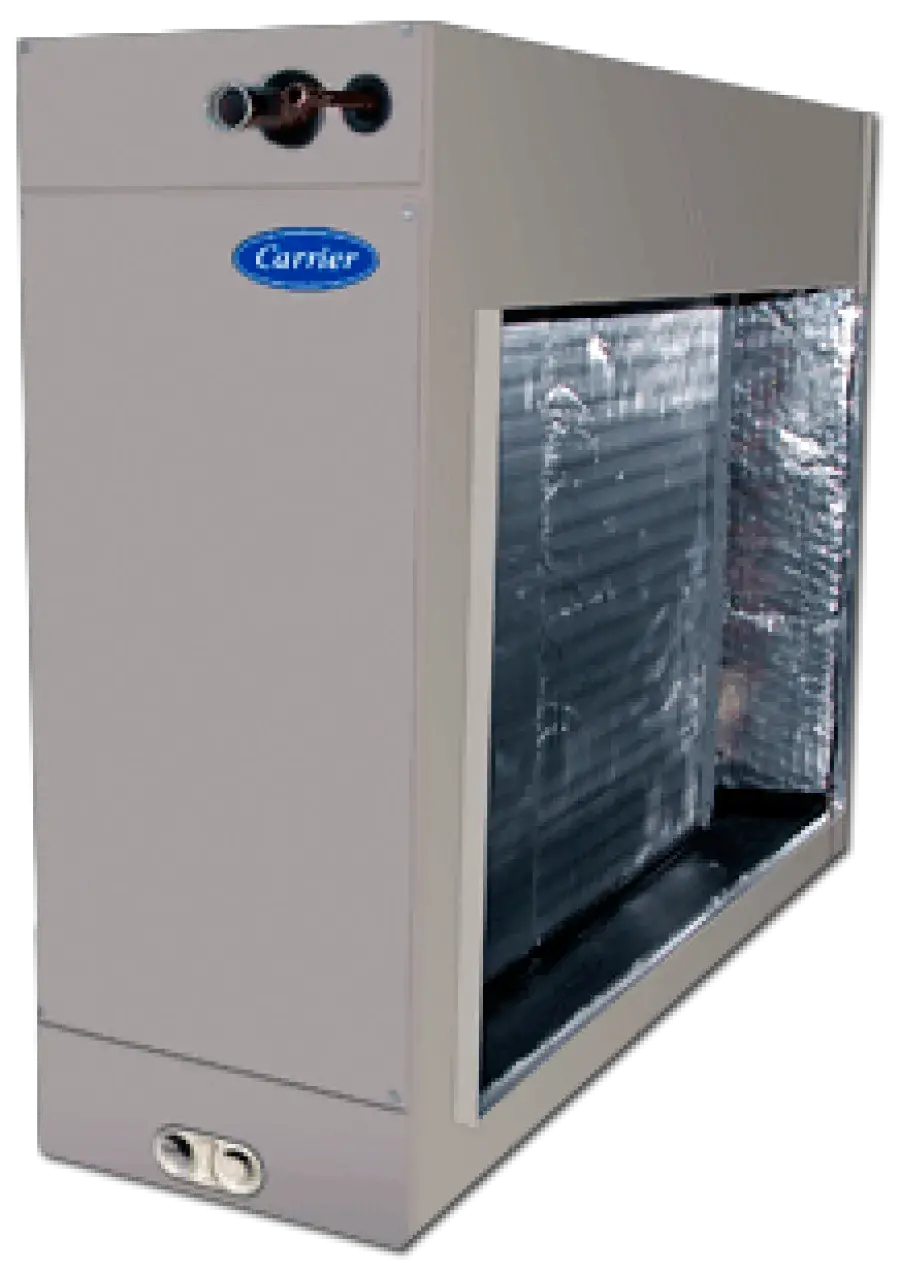

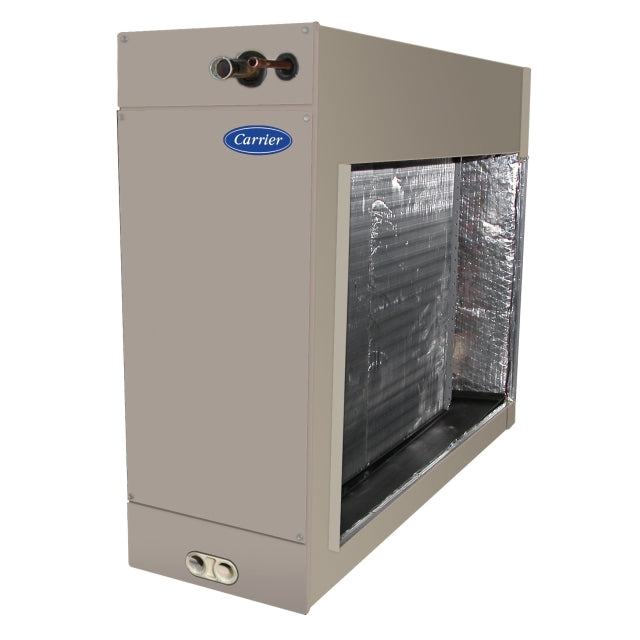

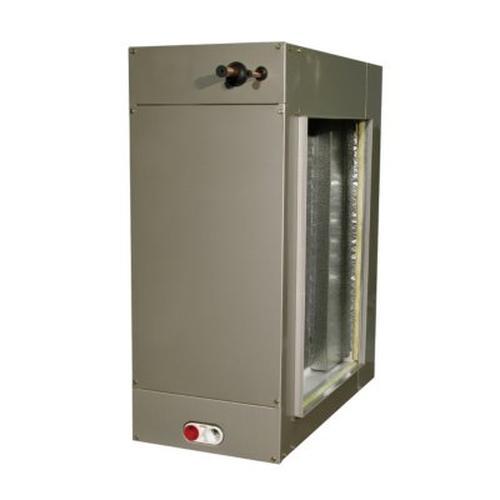

Carrier csphp6012ala 5 Ton R410A Horizontal 12 inches Cased Slab Coil replacement csahp6012ama

Product Description

The CARRIER CSPHP6012ALA is a 5 ton R410A horizontal slab coil with a 12" cased design. It features a corrosion-resistant, all-aluminum coil and a fiberglass reinforced drain pan. The slab coil design offers lower pressure drop and enhanced airflow. It is designed for AC & HP duty.

• Slab coil design offers lower pressure drop and enhanced airflow
• Corrosion-resistant, all aluminum coil
• Thermostatic Expansion Valve (TXV) refrigeration management maintains proper flow to help insure reliable, efficient operation

Product Highlights

This horizontal slab coil is designed for efficient and reliable operation with Puron R410A refrigerant and easy serviceability.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: CSPHP6012ALA
• Country of Origin: US

Technical Specifications

• Brand: Carrier
• Casing Type: Cased
• Casing Width: 12"
• Configuration: Horizontal
• Cooling Capacity: 24000, 60000
• Refrigerant: R410A
• Tonnage: 5
• Type: Slab Coil
• Drain Connection Size: 3/4" NPT
• Height: 30.38 in
• Length: 28.94 in
• Metering Device: TXV
• Package Quantity: 1 ea
• UL Listed: True
• UL Recognized: True
• Width: 11.75 in
• Coil Function: AC & HP Duty
