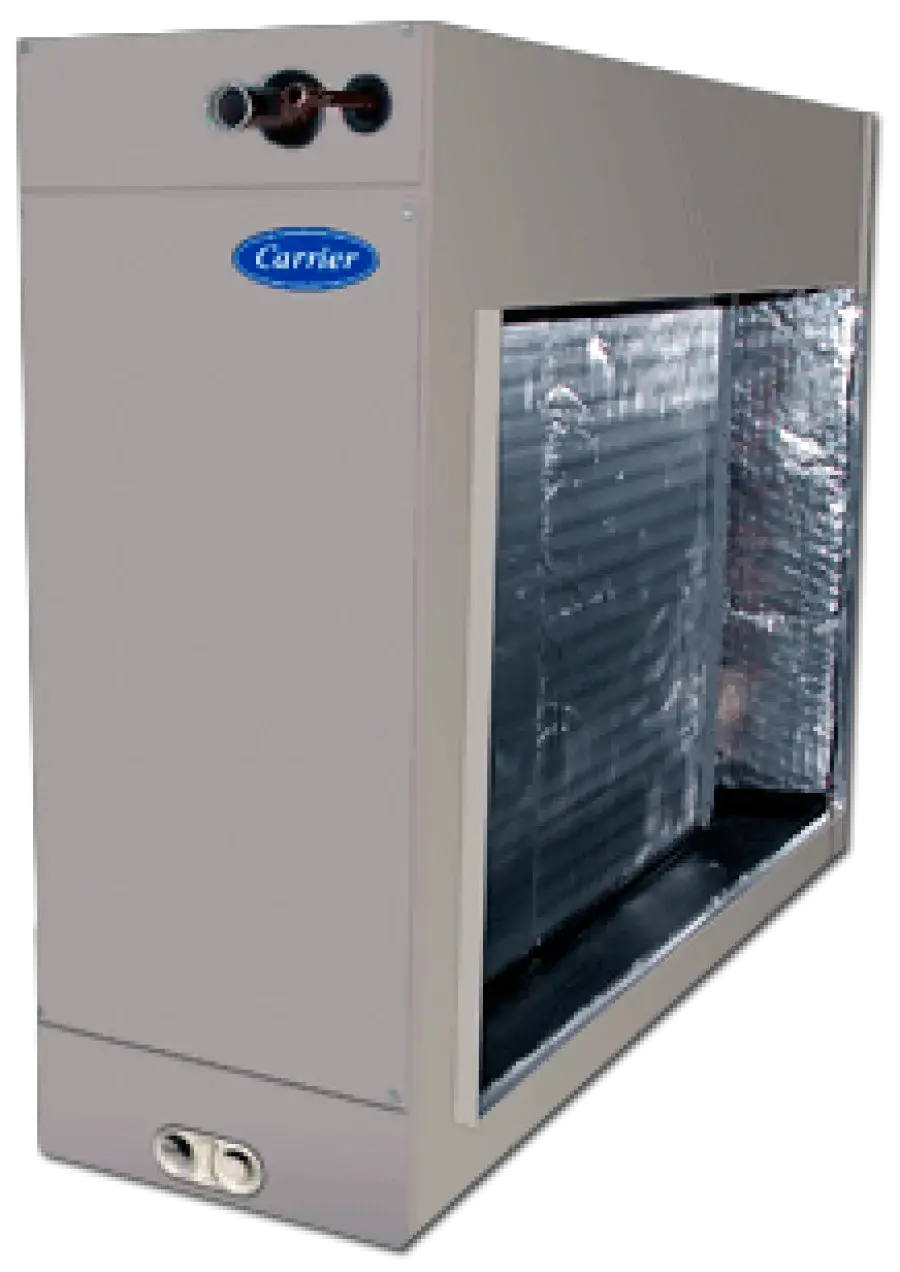

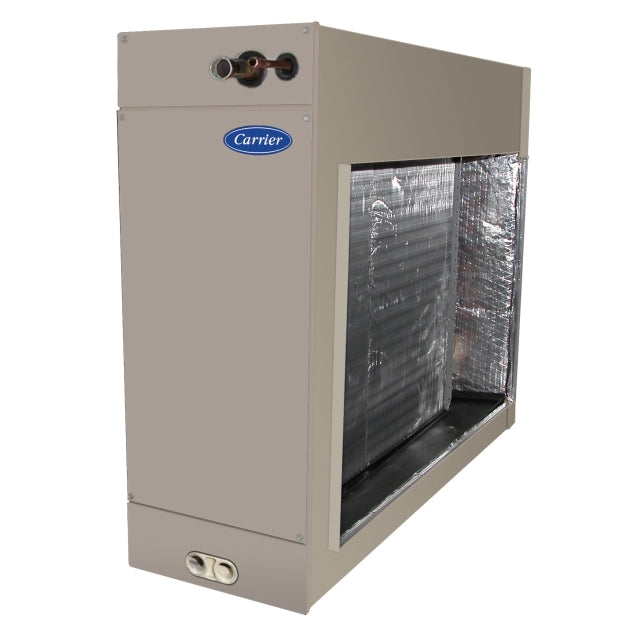

Carrier CSPHP4812ALA 4 Ton R410A Horizontal 12 inches Cased Slab Coil

Product Description

The CARRIER CSPHP4812ALA is a 4 Ton R410A horizontal cased slab coil. This coil features a slab coil design that offers lower pressure drop and enhanced airflow. It also has a corrosion-resistant, all-aluminum coil and a fiberglass-reinforced drain pan for durability. The coil is designed for use with Puron refrigerant.

• Slab coil design offers lower pressure drop and enhanced airflow
• Features a corrosion-resistant, all aluminum coil
• Equipped with a Thermostatic Expansion Valve (TXV) for efficient operation

Product Highlights

This horizontal slab coil is designed for reliable system operation and performance with Carrier air conditioner or heat pump systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: CSPHP4812ALA
• Country of Origin: US

Technical Specifications

• Brand: Carrier
• Casing Type: Cased
• Casing Width: 12"
• Configuration: Horizontal
• Cooling Capacity: 22800, 57500
• Refrigerant: R410A
• Tonnage: 4
• Type: Slab Coil
• Drain Connection Size: 3/4" NPT
• Height: 30.38 in
• Length: 28.81 in
• Metering Device: TXV
• UL Listed: True
• UL Recognized: True
• Width: 11.75 in
• MPN: CSPHP4812ALA
• Coil Function: AC & HP Duty
