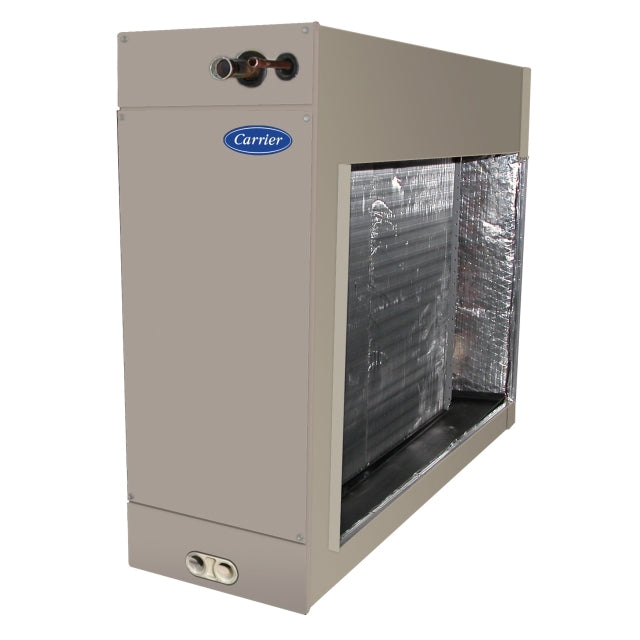

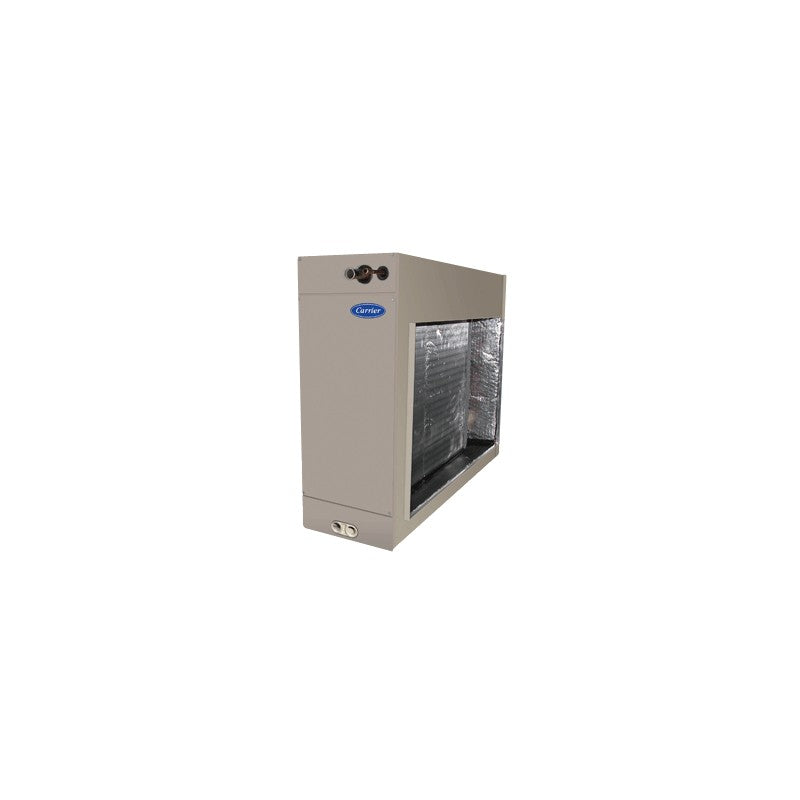

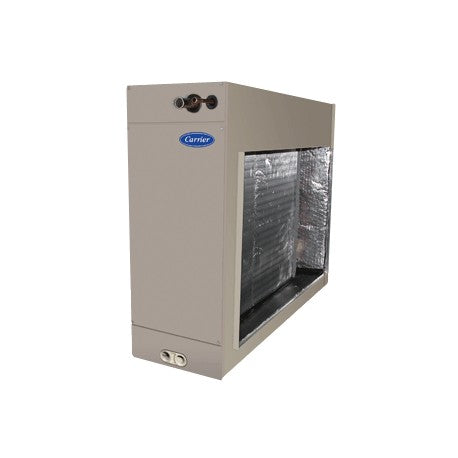

CARRIER CSPHP4212ALA 3.5 Ton R410A Horizontal 12 Inch Cased Slab Coil

Product Description

The CARRIER CSPHP4212ALA is a three point five ton R410A horizontal cased slab coil. This unit has a corrosion-resistant aluminum coil and a fiberglass reinforced drain pan for improved durability. The slab coil design supports lower pressure drop and better airflow.

• Slab coil design offers lower pressure drop and enhanced airflow
• Corrosion-resistant, all aluminum coil
• Factory-installed UV light knockouts for service ease

Product Highlights

This slab coil is designed to support efficient operation with a thermostatic expansion valve that maintains proper flow.

Product Information

Standard Information

• Brand: Carrier
• Casing Type: Cased

Technical Specifications

• Casing Width: 12 inches
• Configuration: Horizontal
• Cooling Capacity: 22800 BTU
• Refrigerant: R410A
• Tonnage: 3.5
• Type: Slab Coil
• Drain Connection Size: 3/4 inch NPT
• Height: 28.38 inches
• Length: 28.81 inches
• Metering Device: TXV
• Package Quantity: 1 each
• Shipping Height: 30.5 inches
• Shipping Length: 31 inches
• Shipping Weight: 62 pounds
• Shipping Width: 14 inches
• UL Listed: True
• Width: 11.75 inches
