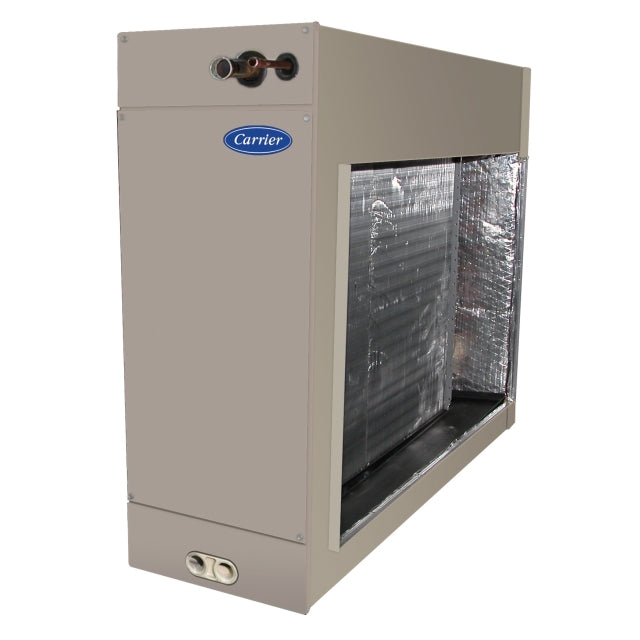

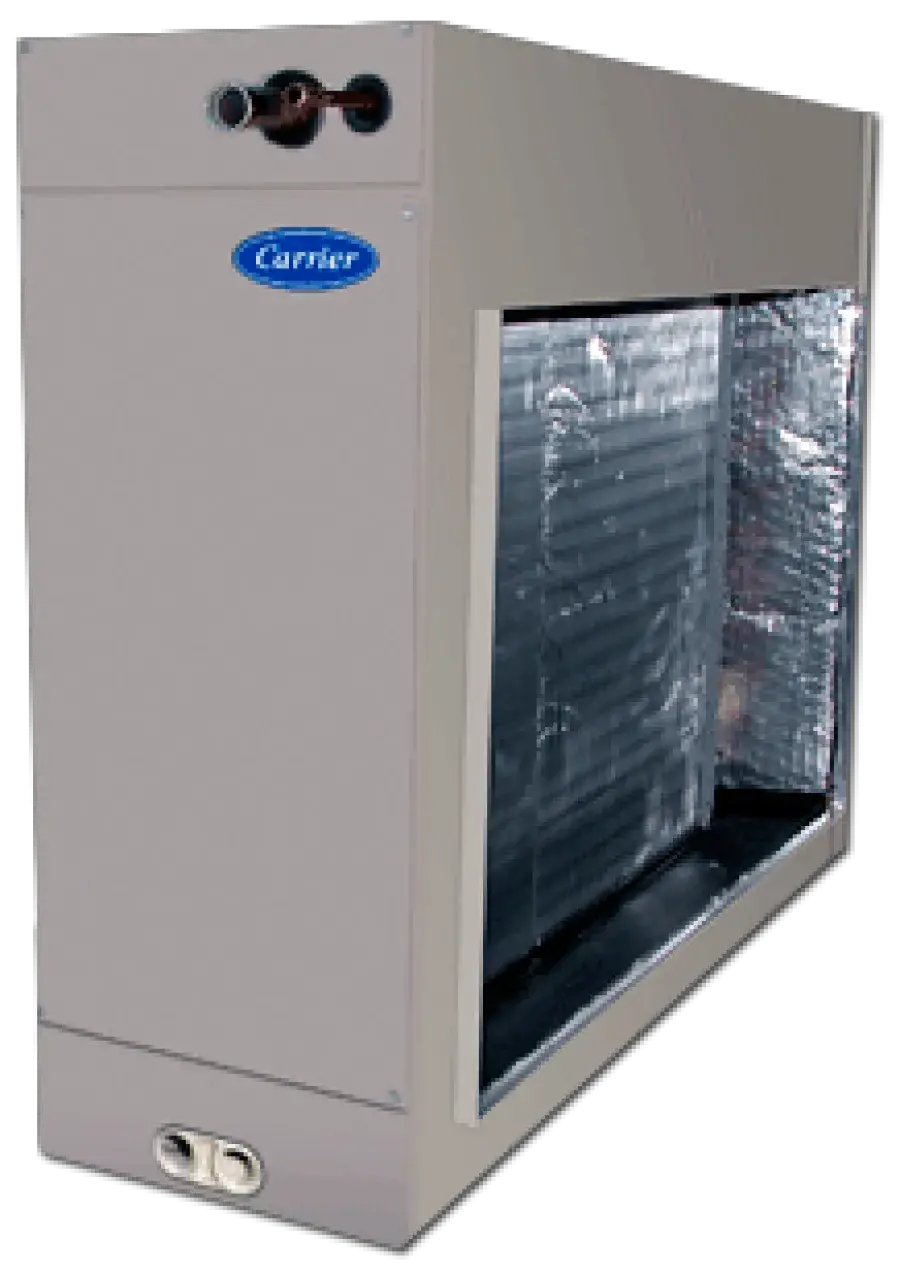

Carrier CSPHP3612ALA 3 Ton R410A Horizontal 12 inches Cased Slab Coil

Product Description

The CARRIER CSPHP3612ALA is a 3-ton R410A horizontal cased slab coil designed for efficient heat exchange in HVAC systems. Its slab coil design offers lower pressure drop and enhanced airflow. The coil features a corrosion-resistant, all-aluminum build and a fiberglass reinforced drain pan for durability. It is suitable for both cooling and heating applications.

• Slab coil design offers lower pressure drop and enhanced airflow
• Features a corrosion-resistant, all aluminum coil
• Equipped with a Thermostatic Expansion Valve (TXV) for efficient operation

Product Highlights

This horizontal cased slab coil is designed for easy installation and serviceability, with removable coils and factory-installed UV light knockouts.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: CSPHP3612ALA
• Country of Origin: United States

Technical Specifications

• Brand: Carrier
• MPN: CSPHP3612ALA
• Casing Type: Cased
• Casing Width: 12"
• Configuration: Horizontal
• Cooling Capacity: 18000, 57500
• Refrigerant: R410A
• Tonnage: 3
• Type: Slab Coil
• Drain Connection Size: 3/4" NPT
• Height: 28.38 in
• Length: 28.81 in
• Width: 11.75 in
• Metering Device: TXV
• Package Quantity: 1 ea
• UL Listed: True
• UL Recognized: True
• Coil Function: AC & HP Duty
