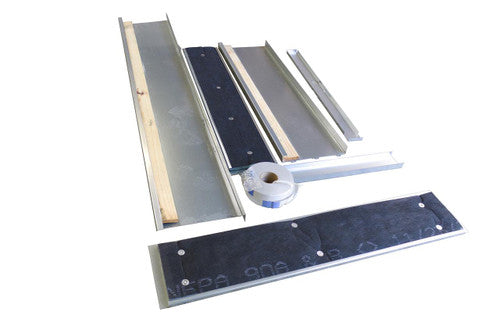

Carrier crrfcurb003a01 14 in Insulated Roof Curb

Product Description

The CARRIER crrfcurb003a01 is a 14-inch insulated roof curb designed to provide a secure, weathertight mounting base for rooftop HVAC equipment. Constructed from 18-gauge galvanized steel, it offers corrosion resistance suited to outdoor rooftop environments. The insulated design helps reduce thermal transfer between the conditioned space and the exterior, supporting system efficiency. At 122 pounds, this is a heavy-duty structural component intended for installation by licensed HVAC technicians or roofing contractors working on commercial or light-commercial rooftop systems.

This roof curb is used to mount packaged rooftop units or other rooftop HVAC equipment onto a flat or low-slope roof assembly. It establishes the proper height and perimeter seal between the unit and the roof deck. The curb is manufactured in the USA and is finished in silver, consistent with standard galvanized steel curb assemblies. It is sold as a single unit and is appropriate for new installations or equipment changeouts where a matching curb is required.

Key Features

• 18-gauge galvanized steel construction for corrosion resistance in outdoor rooftop environments
• Insulated design reduces thermal bridging between interior and exterior
• 14-inch nominal curb size for proper unit-to-roof interface
• Silver finish consistent with standard galvanized steel curb assemblies
• Manufactured in the USA
• Sold as a single unit (EA) for straightforward procurement

Compatibility

Designed as an OEM-style roof curb compatible with Carrier, Bryant, and Payne rooftop HVAC equipment requiring a 14-inch curb configuration. Verify unit footprint and curb dimensions against the rooftop unit installation manual before ordering.

Installation Notes

Roof curb installation is typically performed by licensed HVAC technicians and roofing contractors working in coordination. The curb must be set level and flashed to the roof membrane before the rooftop unit is crane-set into place. Shut down all associated HVAC equipment and follow applicable building and mechanical codes before beginning work. Do not modify the curb dimensions or weld attachments without engineering approval, as this may affect the structural integrity and unit warranty.

Technical Specifications

• Length: 15 inches
• Width: 82 inches
• Height: 7 inches
• Weight: 122 pounds
• Material: Galvanized Steel
• Gauge: 18 GA
• Insulated: Yes
• Color: Silver
• Country of Origin: USA
• Prop 65: Yes

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: crrfcurb003a01
