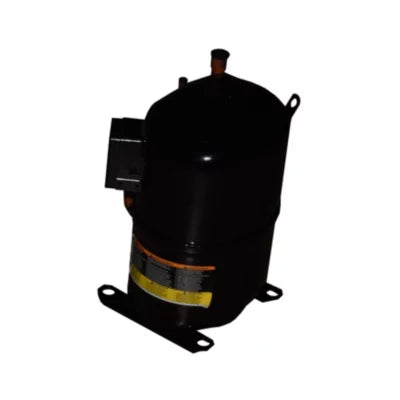

CARRIER CR53KQE-TFD-970 Compressor Power 53,000 BTU

Product Description

The CARRIER CR53KQE-TFD-970 is a hermetic reciprocating compressor that meets the demands of refrigeration applications. This compressor runs on a three-phase 380/420/460 VAC power supply and is compatible with R-22 and R-407C refrigerants. It is designed for commercial and industrial cooling systems with a cooling capacity of fifty-three thousand BTU.

• Hermetic reciprocating compressor design.
• Compatible with R-22 and R-407C refrigerants.
• Runs on 380/420/460 VAC power supply.

Product Highlights

This compressor is ideal for professionals seeking a reliable cooling solution in commercial and industrial settings.

Product Information

Standard Information

• Brand: CARRIER
• MPN: CR53KQE-TFD-970

Technical Specifications

• Compressor Type: Reciprocating
• Compressor Housing: Hermetic
• Refrigerant: R-22 / R-407C
• Voltage: 380/420/460 VAC
• Phase: Three
• BTU Output: 53,000
• Displacement: 5.47
• Suction Line Size (OD): 7/8
• Discharge Connection Size OD: 1/2
• Suction Line Fitting Type: Sweat or Braze
• Discharge Connection Type: Stub
• Oil Type: Mineral (MO) or Polyolester (POE)
• Oil Charge Initial (oz.): 45 Oz.
• Length: 10.63 inches
• Width: 9.22 inches
• Height: 14.81 inches
• Weight: 77 pounds
• Mounting Dimensions: 7.5 x 7.5 x 15.19
• Cycle/Hertz: 50/60 Hz
• Rated Load Amps (RLA): 9.1, 8.1
• Locked Rotor Amps (LRA): 55
• Amps: 7-8
• Condensing Temperature: 100°F to 130°F
• Evaporating Temperature: 45°F
• Return Gas Temperature: 65°F
• Liquid Temperature: 85°F to 115°F
• Mass Flow (lbs/hr): 780 lbs./hr.; 865 lbs./hr.
• Approvals: UL Listed
• Protection: Yes
• Country of Origin: MEX
