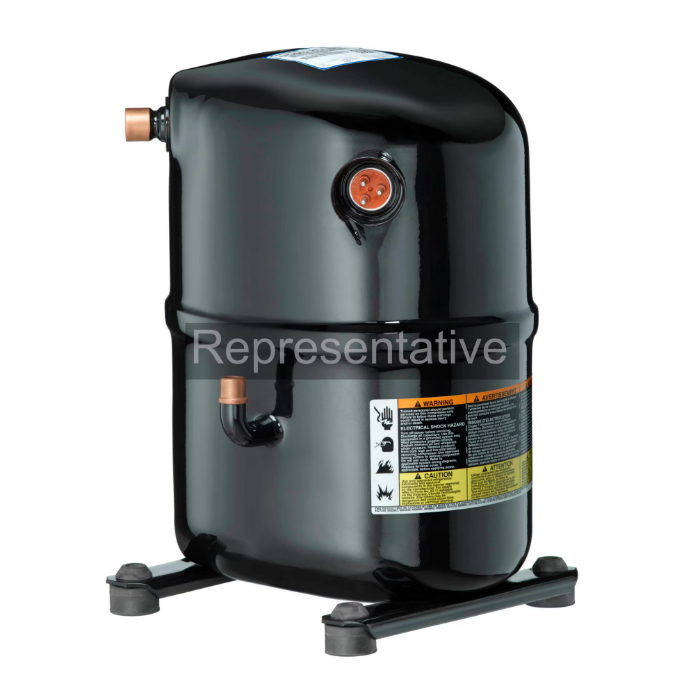

CARRIER CR24K6E-PFV-775 Reciprocating Compressor 208/230V 24500 BTU

Product Description

The CARRIER CR24K6E-PFV-775 is a hermetic reciprocating compressor designed for effective air conditioning and heat pump applications. This model operates at 208/230V and supports R22 and R407C refrigerants, providing a capacity of twenty-four thousand five hundred BTU with an energy efficiency ratio (EER) of 10.9. It measures ten point four by nine point five by twelve point eight inches and weighs sixty-two point one pounds.

• External line break overload protects the compressor.
• Designed for low noise and vibration operation.
• Compatible with R22 and R407C refrigerants.

Product Highlights

This compressor features an efficient design and robust build, making it suitable for residential and light commercial applications.

Product Information

Standard Information

• Brand: CARRIER
• Type: Hermetic Reciprocating

Technical Specifications

• Power Supply: 208/230V
• Capacity: 24500 BTU
• EER: 10.9
• Suction Line Size: 3/4 inches
• Discharge Connection Size: 1/2 inches
• Dimensions: 10.4 x 9.5 x 12.8 inches
• Weight: 62.1 lbs
• Refrigerants Supported: R22, R407C
• Oil Type: POE
• Initial Oil Charge: 45 oz.
• Nominal Tonnage: 2.5
• Phase: Single
• Frequency: 60 Hz
