Carrier CR18K6E-PFV-775 hermetic compressor 18,000btu

Product Description

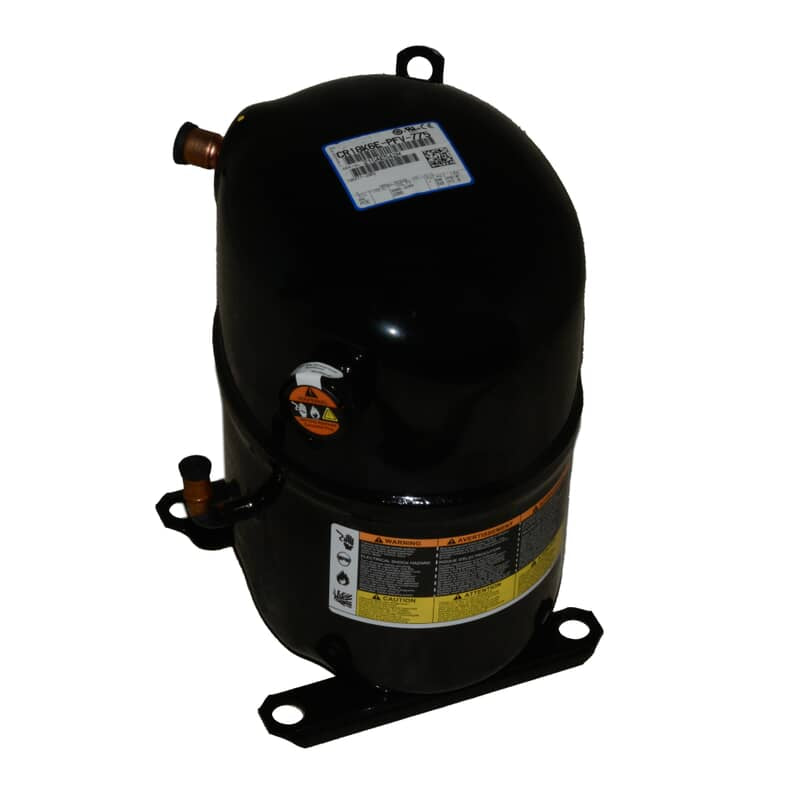

The CARRIER CR18K6E-PFV-775 is a hermetic compressor designed for HVAC and refrigeration applications. This unit operates with R22 refrigerant and provides a cooling capacity of 18,000 BTU. It is compatible with 208/230V electrical systems, ensuring efficient performance. This reciprocating hermetic compressor is suitable for various cooling requirements, offering reliable operation for air conditioning and other thermal management systems.

• Copeland Reciprocating Compressor
• External Line Break Overload
• Low Noise Vibration Levels

Product Highlights

Lightweight design for easier installation and maintenance.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: CR18K6E-PFV-775
• Country of Origin: Mexico

Technical Specifications

• Refrigerant Type: R22
• Cooling Capacity: 18,000 BTU
• Voltage: 208/230V
• Compressor Type: Hermetic, Reciprocating
• Amperage: 6.1-7.1 A
• Approvals: UL Listed
• Country of Origin: Mexico
• Frequency: 60 Hz
• Discharge Connection Size OD: 1/2 inch
• Discharge Connection Type: Stub
• Evaporating Temperature: 45°F (7.22°C)
• Locked Rotor Amps (LRA): 49 A
• Mass Flow: 236 lbs/hr; 291 lbs/hr
• Mounting Dimensions: 7.5 x 7.5 x 13.56 inches
• Initial Oil Charge: 45 oz
• Oil Type: Mineral (MO) or Polyolester (POE)
• Phase: Single
• Protection: Yes
• Rated Load Amps (RLA): 10.4 A, 9.4 A
• Return Gas Temperature: 65°F (18.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size OD: 3/4 inch
