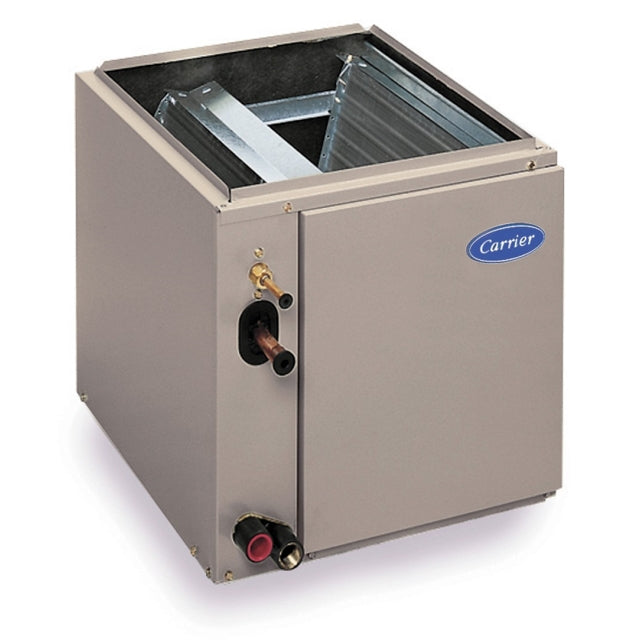

Carrier CNPVP3717ALA N-Coil 3 Ton Upflow / Downflow 17 inches Cased

Product Description

The CARRIER CNPVP3717ALA is a 3-ton N-Coil designed for upflow/downflow configurations. This cased coil features a compact design for easy installation and a corrosion-resistant, all-aluminum coil. The Thermostatic Expansion Valve (TXV) maintains proper refrigerant flow for efficient operation. It has a fully insulated cabinet and a sloped, corrosion-free drain pan to reduce mold and bacteria build-up.

• Compact N coil design to aid in tight installations
• Corrosion-resistant, all aluminum coil
• Thermostatic Expansion Valve (TXV) refrigeration management maintains proper flow to help insure reliable, efficient operation

Product Highlights

This CARRIER N-Coil ensures efficient cooling performance and reliable operation for vertical systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: CNPVP3717ALA
• Country of Origin: MEX

Technical Specifications

• Brand: Carrier
• Casing Type: Cased
• Casing Width: 17"
• Configuration: Upflow / Downflow
• Cooling Capacity: 22000, 38000
• Refrigerant: R410A
• Suction Line Size: 7/8"
• Tonnage: 3
• Type: N-Coil
• Drain Connection Size: 3/4"
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8 in
• Metering Device: TXV
• Package Quantity: 1 ea
• UL Listed: False
• UL Recognized: True
• AHRI - Usage: Indoor Coil
• Cabinet Width: 17
• Cased: true
• CFM: 900-1,500
• Coil Fin Material: Aluminum
• Coil Pipe Material: Aluminum
• Coil Shape Designation: N-Coil
• Corrosion Protected Coil: false
• OPT Code: 1PCNPVP3717ALA
• Product Family: CNPVP
• Substantial Commodity: Steel; Copper; Aluminum
• Tier: Standard
• UOM: EA
• Air Flow Direction: Upflow / Downflow
• Drain Connection Quantity: 2
• Liquid Line Fitting Type: Sweat or Braze
• Suction Line Fitting Type: Sweat or Braze
• Height: 27.1875 in
• Length: 21 in
• Width: 17.5 in
