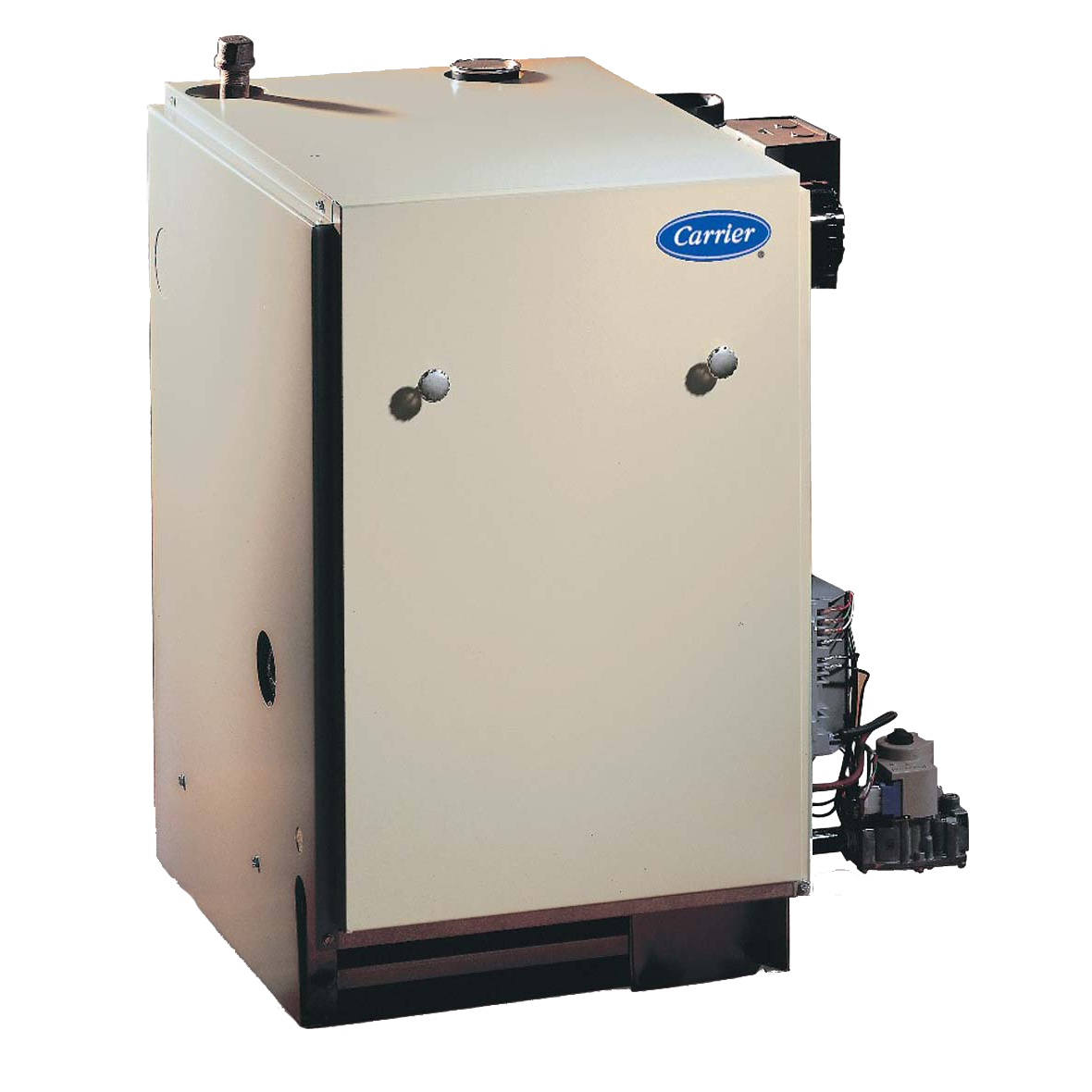

CARRIER Carrier BW3AAN000187 Gas Steam Boiler 187500 BTUH (Floor Standing)
CARRIER Carrier BW3AAN000187 Gas Steam Boiler 187500 BTUH (Floor Standing)

Carrier BW3AAN000187 Gas Steam Boiler 187500 BTUH (Floor Standing)

CARRIER
Brand: CARRIER
SKU: bw3aan000187
Availability: In Stock

Ships via freight in 1-3 business days
$3,044.06
$3,044.06
LTL Delivery

This product weighs 426 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Carrier BW3AAN000187 is a gas-fired hot-water boiler with 187,500 BTU input and approximately 155,000 BTU rated burner output, designed for floor-standing installation. The unit uses a cast-iron heat exchanger and stainless titanium alloy burners with electronic spark-to-pilot ignition and a single-stage gas valve. It offers water capacity of about 6.7 gallons and provides efficiency ratings reported up to 84.4% AFUE.

  • 187,500 BTU input and approximately 155,000 BTU burner output; floor-standing configuration
  • Cast-iron primary heat exchanger, stainless titanium alloy burners, electronic spark-to-pilot ignition
  • Integrated pressure relief valve; single-stage gas valve; water capacity ~6.7 gallons

Product Highlights

Floor-standing gas-fired hot-water boiler, cast-iron heat exchanger, 187,500 BTU input, ~155,000 BTU output, up to 84.4% AFUE

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: bw3aan000187
Technical Specifications
Brand
Carrier
Manufacturer Part Number
BW3AAN000187
Product Family / Series
BW3 / Performance
Product Type
Gas-fired hot-water boiler
BTU Input
187,500 BTU/h
BTU Output
155,000 BTU/h
Rated Heating Output
36,000-186,000 BTU/h
Heating Capacity
155,000 BTU/h
Fuel Type
Natural gas
Convertible To
Propane
AFUE
82.30%
Heat Exchanger
Cast iron
Burners
Stainless titanium alloy burners
Ignition Type
Electronic spark-to-pilot ignition
Gas Valve Type
Single-stage (Honeywell listed in source)
Number Of Burners
6
Integrated Components
Combination high-limit and circulator relay; integrated pressure relief valve
Water Capacity
6.7 Gal
Input Voltage
115 V
Power Source (alternative listing)
110-125 V
Full Load Current
0.76 amp
Frequency
60 Hz
Heating Operating Range
130-220 °F
Configuration / Mounting Type
Floor standing
Vent
Sidewall venting with available accessory power venter
Gas Connection Size
1/2 in
Maximum Circuit Breaker
15 A
Maximum Fuse Size
15 amp
Primary Heat Exchanger Type
Cast Iron
Dimensions (Height x Depth x Width)
29 in x 23.25 in x 24 in
Weight
426 lb
