Carrier BS2AAN000299 80% AFUE 299000 Btu/h Gas-Fired Steam Boiler (299000 Btu/h)

CARRIER
Brand: CARRIER
SKU: BS2AAN000299
Availability: Out Of Stock
$3,019.01
$3,019.01
LTL Delivery

This product weighs 800 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

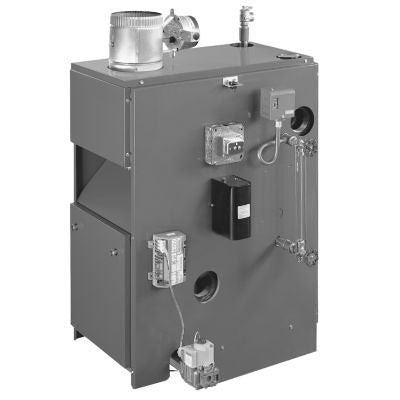

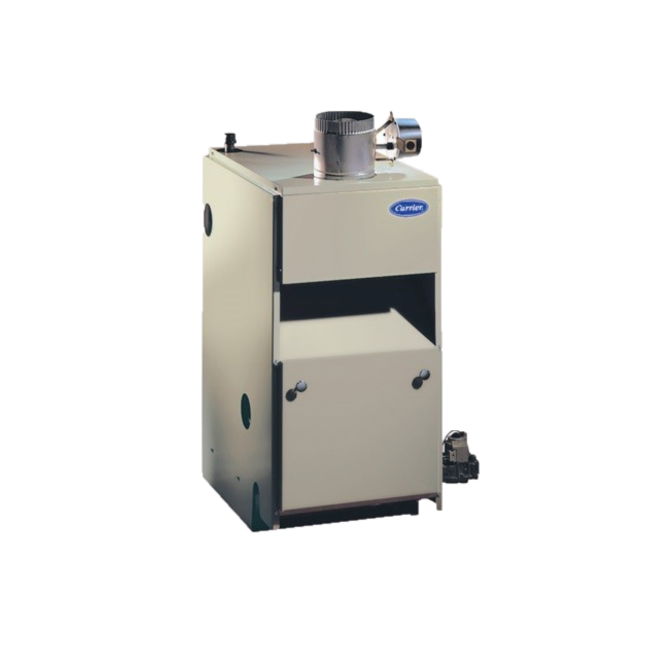

Carrier BS2AAN000299 is a cast-iron gas-fired steam boiler with a maximum input of 299,000 Btu/h and 80% AFUE. The compact, factory-packaged unit includes factory-installed wiring and controls (except room thermostat), thermal-pin cast-iron sections with steel push nipples, titanium composite burners, and an integral draft system. Sections are hydrostatically tested and the casing is insulated with fiberglass for improved operating efficiency. It is CSA certified for natural gas and field convertible to propane with a factory kit.

  • Maximum input 299,000 Btu/h; 80% AFUE; thermal-pin cast-iron sections with steel push nipples.
  • Titanium composite burners, integral draft system, and electronic combustion/ignition; operates on 110–125 V, 60 Hz.
  • Factory-supplied safety controls including automatic gas valve and intermittent pilot; CSA certified for natural gas; compatible with Category 1 venting and automatic vent damper.

Product Highlights

299,000 Btu/h gas-fired steam boiler with cast-iron sections, titanium burners, factory-installed controls, CSA certification, and propane convertibility.

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: BS2AAN000299
  • Country of Origin: USA
Technical Specifications
Brand
Carrier
MPN
BS2AAN000299
Type
Gas-fired steam boiler
Series
BS2 (Comfort)
AFUE
80%
Maximum Input (Btu/h)
299,000
Fuel
Natural gas (field convertible to propane with factory kit)
Input Voltage
110-125 V, 60 Hz
Combustion / Ignition
Natural draft; electronic combustion/ignition
Heat Exchanger Material
Thermal-pin cast-iron sections
Burner Type
Titanium composite burners
Section Seal
Steel push nipples
Draft
Integral draft system (no external draft diverter required)
Casing
Insulated fiberglass casing
Safety Controls
Automatic gas valve and intermittent pilot; protection against overheating, pressure build-up, and low-water operation
Certifications
CSA certified for natural gas
Compatible Venting
Category 1 venting; compatible with factory-supplied automatic vent damper
Maximum Allowable Working Pressure (Water)
50 psig
Maximum Allowable Working Pressure (Steam)
15 psig
Section Hydrostatic Test
Sections hydrostatically tested at factory; individual sections to 125 psig; assembled sections tested to 75 psig
Dimensions (H x D x W)
36.375 in x 26.5 in x 30.75 in
Gas Connection Size
1/2 in
Gas Connection Type
NPT
Mounting / Installation
Floor standing; suitable for installation on combustible floors with optional combustible floor base
Country of Origin
USA
