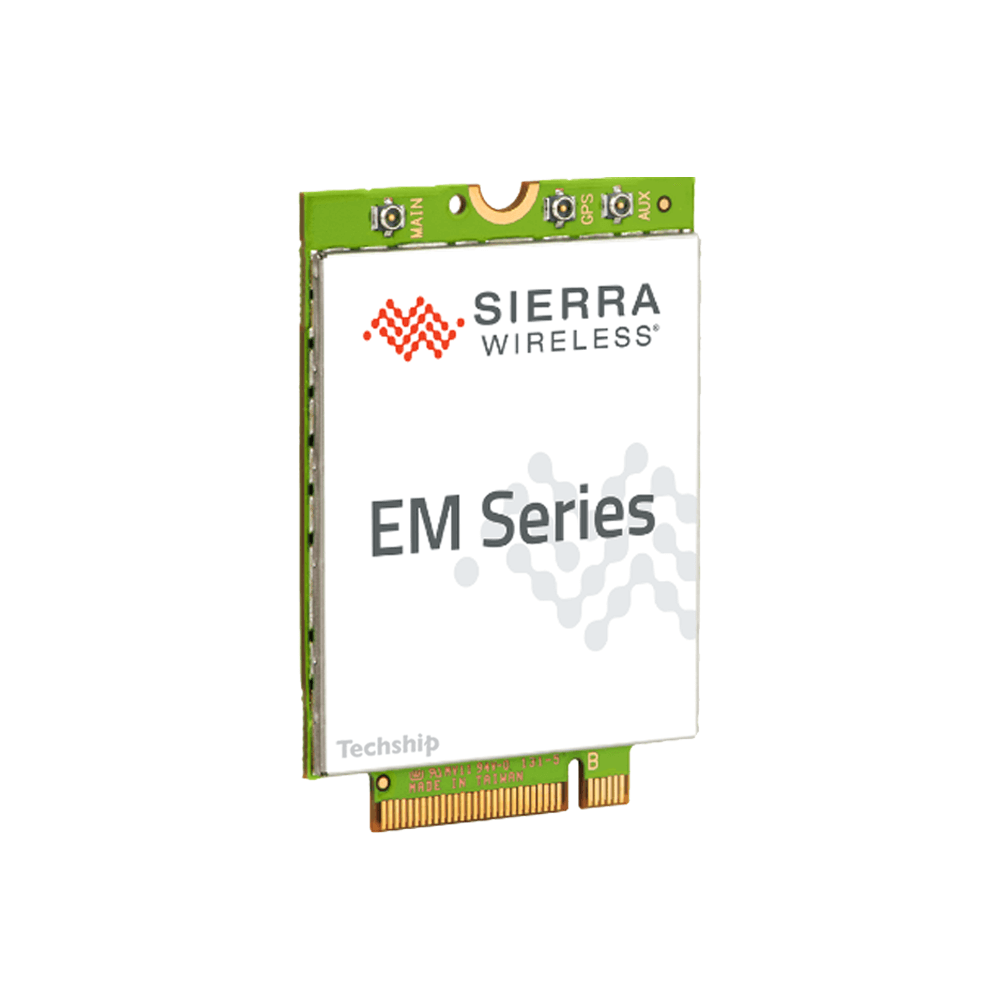

CARRIER B106 Sierra Wireless EM7595 LTE Cat-12 w B106 M.2

Product Description

The CARRIER B106 Sierra Wireless EM7595 is a 4G LTE Advanced Pro Cat-12 module designed for global connectivity, featuring 3G fallback capabilities. This EM series component provides high-speed connectivity with support for LTE Advanced and carrier aggregation. It delivers download speeds of up to 600 Mbps and upload speeds of up to 150 Mbps. With its support for private LTE bands, this module is suitable for secure public safety communications. It conforms to the M.2 standard and utilizes USB 3.0 and USB 2.0 interfaces.

• Global coverage on a single module
• Supports Dual SIM Single Standby (DSSS)
• Includes secure boot functionality

Product Highlights

The CARRIER B106 is built for versatile applications, making it a reliable choice for trade professionals needing robust connectivity solutions.

Product Information

Standard Information

• Brand: Semtech (Sierra Wireless)
• Region: Global

Technical Specifications

• Primary Technology: LTE - Cat 12
• Fallback: 3G
• Form Factor: M.2 3042
• Max Download Speed: 600 Mbps
• Max Upload Speed: 150 Mbps
• GNSS Technology: GPS, GLONASS, Galileo, BeiDou
• Carrier Certification: AT&T, T-Mobile, Verizon
• Operating Temperature Range: -30 to 70 °C
• Data Interface: USB 3.0, USB 2.0
• LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B32, B38, B39, B40, B41, B42, B43, B48, B66, B71, B106
• Chipset: Qualcomm SDX12
• UMTS Bands: B1, B2, B4, B5, B6, B8, B9, B19
• GNSS: Yes
• Antenna Connectors: IPEX MHF-4
• Certification: CE RED, FCC, IC, RoHS, REACH
• Extended Operating Temperature Range: -40 to 85 °C
• Driver Support: Windows 10, Linux, Android
